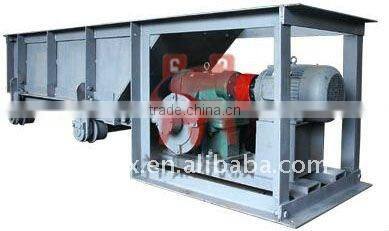

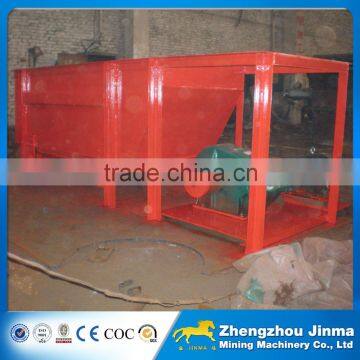

Durable Vibrating Trough Feeder / Chute Feeder With Capacity 25-80 TPH

Vibrating Trough Feeder description

Vibrating trough feeder is mainly used to feed before crusher.It is suitable for the even feeding of granules below 400mm and block shape material.It is mainly used for metal, non-metallic materials short distance transportation.

Trough feeder(chute feeder) is widely used in metallurgical, chemical, coal, mining and water resources and hydropower engineering department.

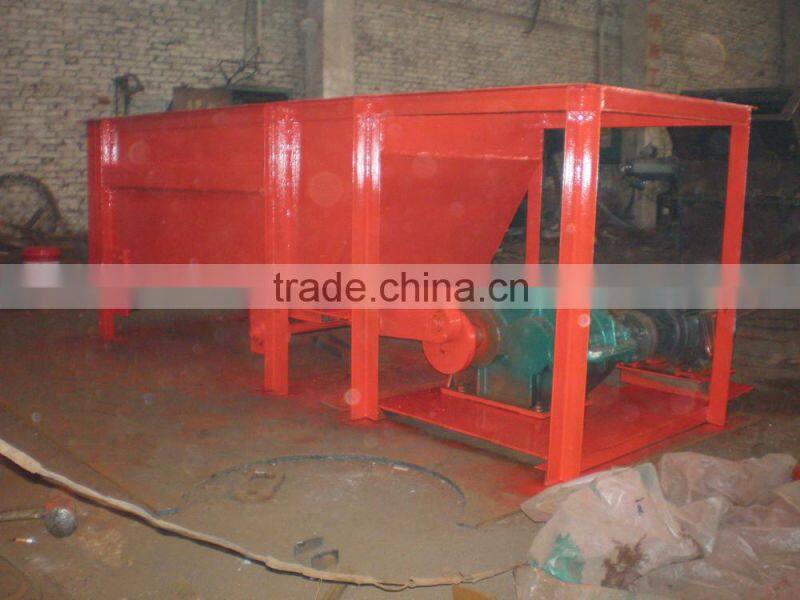

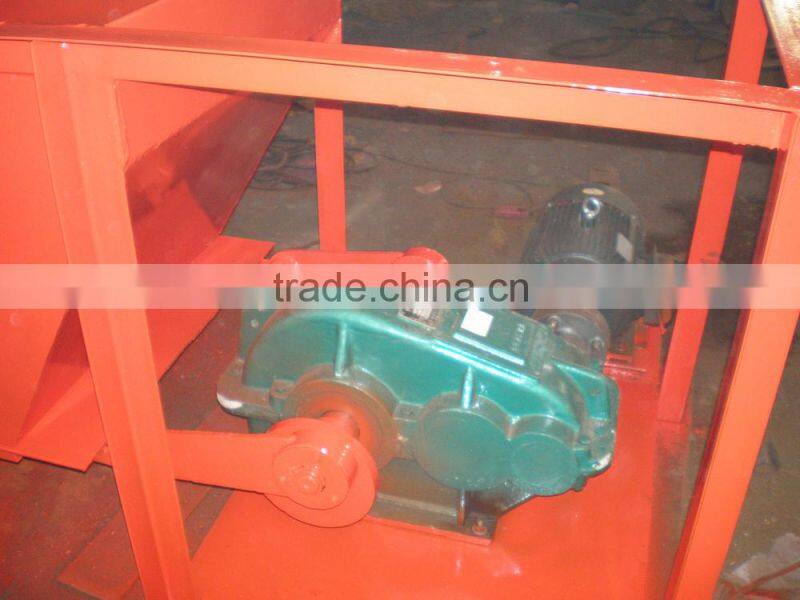

Trough feeder/ Chute feeder can be fixed on the ground or lifting on the discharge opening of ore bin.The trough bottom slab moves circularly with the speed of 20 to 60 times/min, the stroke is 20-200  mm. the stroke can be adjusted by adjusting eccentric of driving device- eccentric distance is half of the stroke.

According to some concentrators practice, the eccentricity  for sticky ore should be not less than 30 mm.

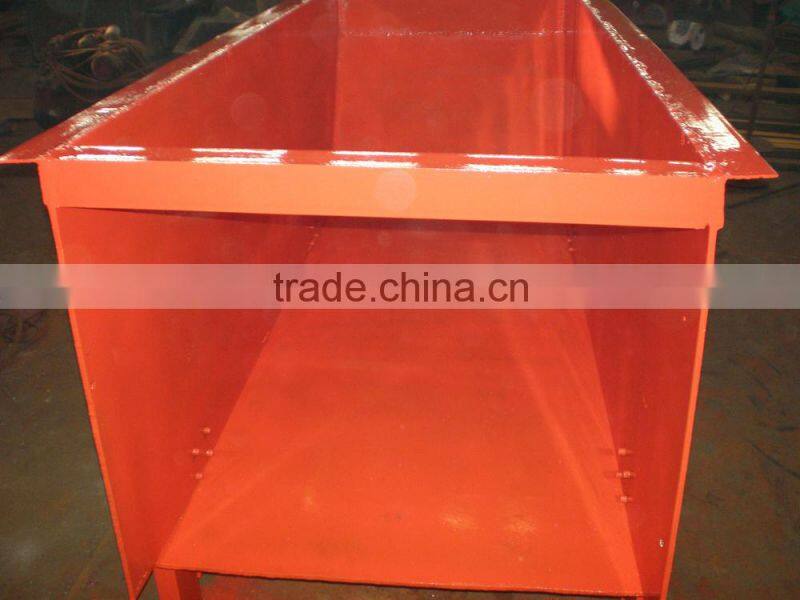

The trough width of the feeder should be about 2-2.5 times of the maximum feed size. The Biggest trough feeder can feed iron ore less than 500 mm.

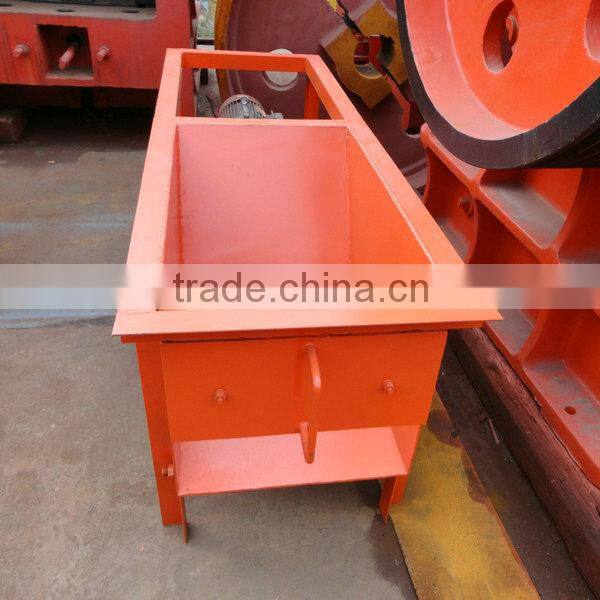

980 * 1240 trough feeder is widely used as 400 * 600 Jaw crusher’s  feeding equipment and the feeder’s feed size is 350-0 mm.

Features of Vibrating Trough Feeder

1. High-efficiency

2. Easy adjustment equipment

3. Low consumption, energy saving

4. Reasonable design

5. Low power consumption trough feeder

Specifications of vibrating trough feeder

 Pre-sale support

1 Select the suitable equipment model;

2 Design and manufacture products according to clients' special requirement;

After-sales service support

After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.

 Technological support

Jinma insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.

Our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.

Our professional engineers will design the most reasonable scheme for the real production line.
