Home > Products > Feeder and conveyor machine > GAOFU Energy saving vibrator bowl feeder

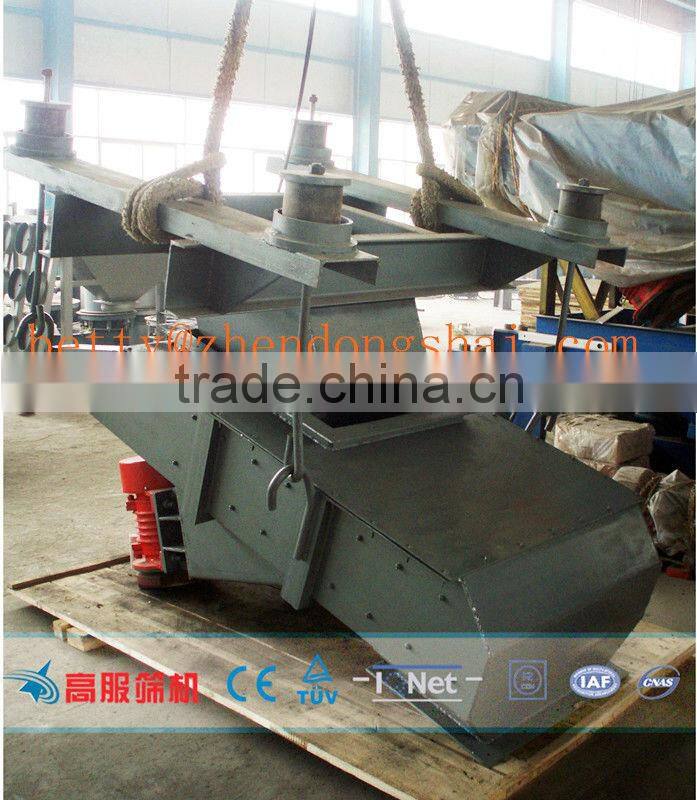

GAOFU Energy saving vibrator bowl feeder
- 100 Set / Sets per Month
- Tianjin / Shanghai / Qingdao
- T/T
Product Details
Condition: | New | Power Type: | Electric | Capacity(t/h): | 100-500t/h |
Place of Origin: | Henan, China | Brand Name: | GAOFU | Model Number: | ZG-516-Q235ACarbon steel |
Certification: | ISO9001:2008 | Warranty: | 12 Months, One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Application: | Ore, stone, rock, coal, sand, construction material, etc |
Packaging Details
make sure meet the export standard
Product Description

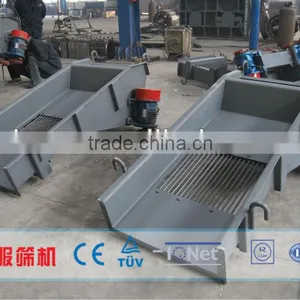

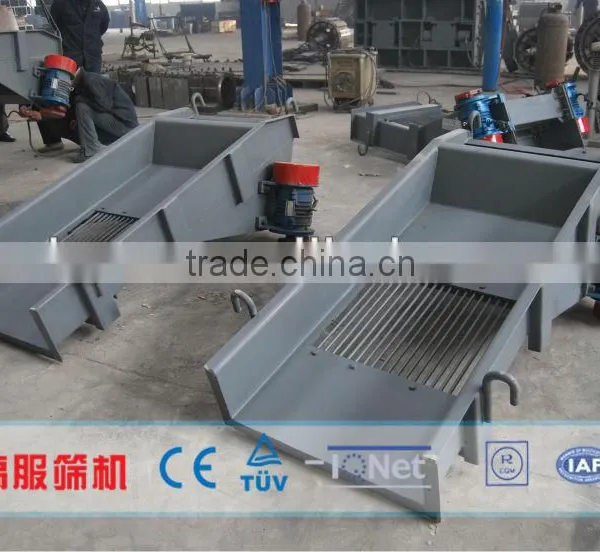

Electric Vibrating Feeder
I. Vibrating Feeder:
The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
II. Working principle of Vibrating Feeder:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
III. Characteristics of Vibrating Feeder:
a. Smooth vibration
b. reliable operation
c. long service life
d. low noise
e. low power consumption
f. easy to adjust
g. simple structure
h. easy to install
IV. Technical parameter of vibrating feeder:
Model | Max input size(mm) | capacity | motor power | Installaition Slope | weight | Size of Funnel |
GZD-180×80 | 300 | 30-80 | 2×1.5 | 0-10 | 0.8 | 1800×800 |
GZD-300×90 | 500 | 40-100 | 2×2.2 | 0-10 | 1.5 | 3000×900 |
ZSW-380×96 | 500 | 90-100 | 11 | 0° | 3.98 | 3800×960 |
ZSW-490×96 | 500 | 120-240 | 15 | 0° | 5.5 | 4900×960 |
ZSW-490×110 | 580 | 120-280 | 15 | 0° | 5.72 | 4900×1100 |
ZSW-590×110 | 600 | 280-500 | 22 | 0° | 6.13 | 5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.
Vibrating Feeder structure
YZO series special motor
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
