Electromagnetic vibrating feeder is one kind of universally supporting feeding equipment. It is suitable for evenly feeding any kinds of powder, granules or blocks into the another receiving machine at rationed weight. It is the necessary machine for automatic prodcution line.
Electromagnetic vibrating feeder is one complete double particle orientation forced vibration elastic system. The whole system is working under the low critical resonance state.Adopts the electromagnetic vibrator drive the feeder trough do the reciprocating vibration in certain angle and the whole system can make the material move as per the trough.
Hanging types vibrating feeder

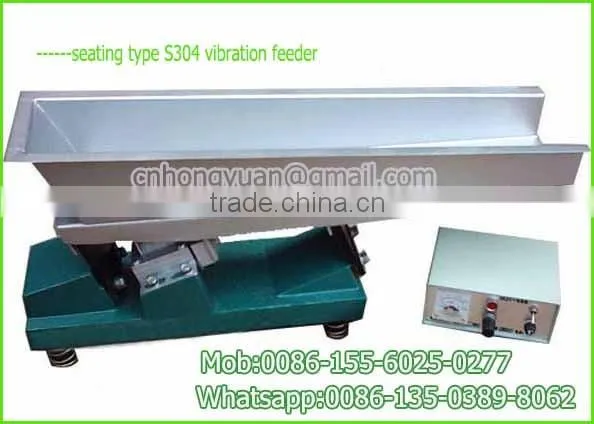

Seating types vibrating feeder

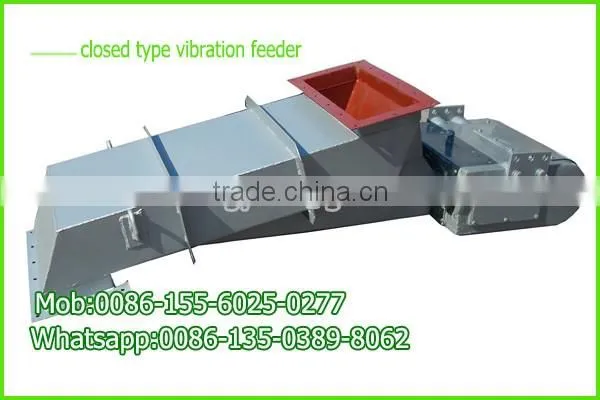

Closed types vibrating feeder
| Type | Model | capacity(t/h) | Granule size (mm) | Double amplitude (mm) | Voltage (V) | Elevtric Current (A) | Power (Kw) | Control cabinet | ||
| horizontal | -10° | Running current | Indicates current | |||||||
| Basic type | GZ1 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 | XKZ-5G2 |
| GZ2 | 10 | 14 | 50 | 3.0 | 2.3 | 0.15 | ||||
| GZ3 | 25 | 35 | 75 | 4.58 | 3.8 | 0.2 | ||||
| GZ4 | 50 | 70 | 100 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5 | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | ||||
| GZ6 | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.2 | XKZ-20G3 | |
| GZ7 | 250 | 350 | 250 | 24.6 | 20 | 3 | ||||
| GZ8 | 400 | 560 | 300 | 39.4 | 32 | 4 | ||||
| GZ9 | 600 | 840 | 350 | 47.6 | 38.6 | 5.5 | XKZ-200G3 | |||
| GZ10 | 750 | 1050 | 500 | 39.4*2 | 32*2 | 4*2 | XKZS-200G3 | |||
| GZ11 | 1000 | 1400 | 500 | 47.6*2 | 38.6*2 | 5.5*2 | ||||
| Upper vibration type | GZ3S | 25 | 35 | 75 | 1.75 | 220 | 4.58 | 3.8 | 0.2 | XKZ-5G2 |
| GZ4S | 50 | 70 | 100 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5S | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | ||||
| GZ6S | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G3 | |
| GZ7S | 250 | 350 | 250 | 24.6 | 0 | 3 | XKZ-100G3 | |||
| GZ8S | 400 | 560 | 300 | 39.4 | 32 | 4 | ||||
| Closed type | GZ1F | 4 | 5.6 | 40 | 1.75 | 220 | 1.34 | 1 | 0.06 | XKZ-5G2 |
| GZ2F | 8 | 11.2 | 40 | 3 | 2.3 | 0.15 | ||||
| GZ3F | 20 | 28 | 60 | 4.58 | 3.8 | 0.2 | ||||
| GZ4F | 40 | 56 | 60 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5F | 80 | 112 | 80 | 12.7 | 10.6 | 0.65 | ||||
| GZ6F | 120 | 168 | 80 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G | |

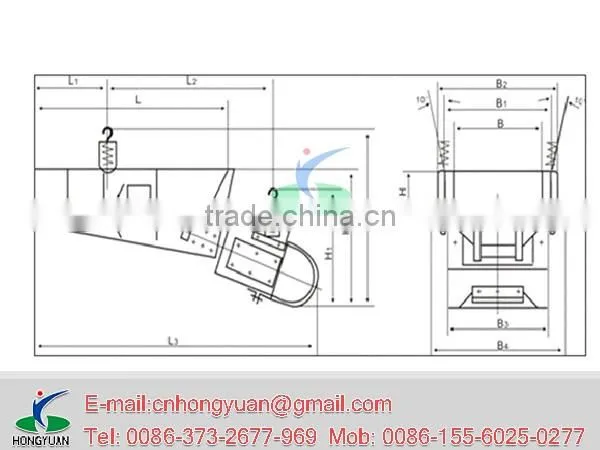

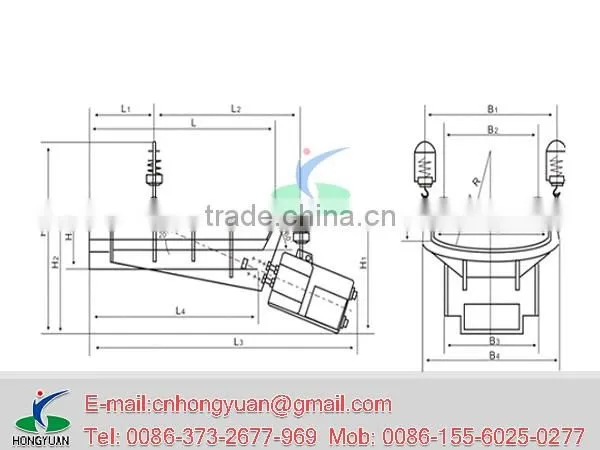

| Model | B | B1 | B2 | B3 | B4 | L | L1 | L2 | L3 | H | H1 | H2 | H3 |
| GZ1 | 200 | 280 | 340 | 296 | 376 | 600 | 209 | 550 | 910 | 100 | 350 | 360 | 485 |
| GZ2 | 300 | 388 | 456 | 400 | 506 | 800 | 310 | 660 | 1171 | 120 | 430 | 450 | 600 |
| GZ3 | 400 | 496 | 518 | 452 | 574 | 900 | 311 | 790 | 1325 | 150 | 480 | 520 | 675 |
| GZ4 | 500 | 620 | 682 | 581 | 762 | 1100 | 413 | 965 | 1615 | 200 | 550 | 645 | 814 |
| GZ5 | 700 | 761 | 850 | 650 | 840 | 1200 | 465 | 1050 | 1815 | 250 | 647 | 765 | 980 |
| Model | B | B1 | B2 | B3 | B4 | L | L1 | L2 | L3 | L4 | H | H1 | H2 | H3 | H4 | R |
| GZ6 | 900 | 1057 | 720 | 860 | 1092 | 1600 | 500 | 1360 | 2410 | 1409 | 250 | 1090 | 1030 | 1530 | 460 | 1800 |
| GZ7 | 1100 | 1257 | 840 | 1030 | 1332 | 1800 | 650 | 1465 | 2800 | 1585 | 250 | 1300 | 1130 | 1740 | 500 | 2200 |
| GZ8 | 1300 | 1476 | 1000 | 1166 | 1556 | 2200 | 750 | 1800 | 3302 | 1938 | 300 | 1460 | 1340 | 1695 | 607 | 2600 |
| GZ9 | 1500 | 1676 | 1010 | 1228 | 1776 | 2400 | 800 | 2000 | 3515 | 2100 | 300 | 1520 | 1440 | 2200 | 660 | 3500 |
Company Honors
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover,
our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has won a good reputation.
For more information on mineral granules electromagnetic vibrating feeder , Contact us directly by following information:
Tel: 0086-0373-2677969 Fax: 0086-0373-2678112
Mob: 0086-155-6025-0277 QQ&Wechat: 809043771
Whatsapp: +86-135-0389-8062 Skype: zhu.sunshine
