Gaofu vibrating feeder manufacturer
Gaofu vibrating feeder Application
Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding.

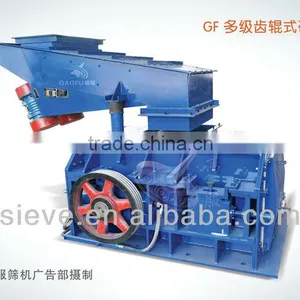

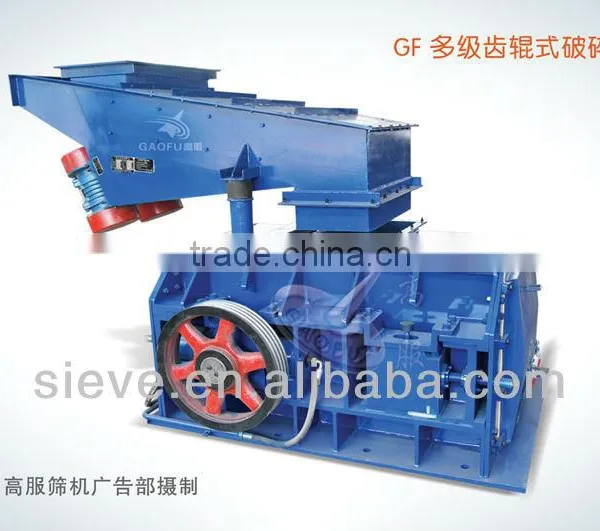

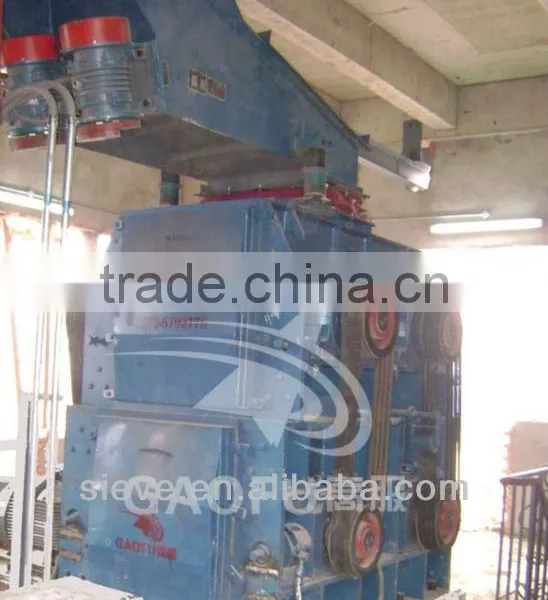

Vibrating feeders are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the Sand-Stone production line, vibrating feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.
Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Gaofu vibrating feeder Working Principle

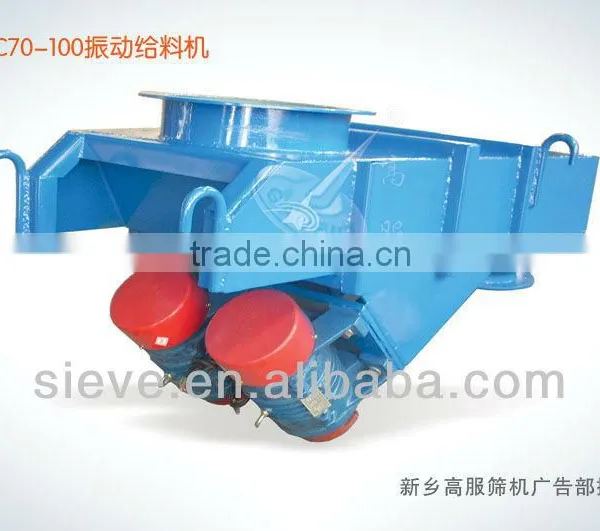

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign.
Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate.
Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.
Model |
Feed size(mm) |
Capacity (t/h) |
Motor |
Power (KW) |
Double amplitude |
Weight(KG) |
|
Close |
Open |
||||||
ZG-25 |
60 |
25 |
YZO-2.5-4 |
0.25*2 |
2-3 |
240 |
174 |
ZG-30 |
80 |
30 |
YZO-5-4 |
0.4*2 |
2-3 |
256 |
184 |
ZG-50 |
90 |
50 |
YZO-5-4 |
0.4*2 |
2-3 |
295 |
235 |
ZG-100 |
105 |
100 |
YZO-8-4 |
0.75*2 |
2-5 |
384 |
321 |
ZG-200 |
115 |
200 |
YZO-17-4 |
0.75*2 |
2-5 |
432 |
372 |
ZG-400 |
140 |
400 |
YZO-20-4 |
2.0*2 |
2-5 |
686 |
606 |
ZG-750 |
190 |
750 |
YZO-30-4 |
2.5*2 |
4-6 |
1258 |
1030 |
ZG-1000 |
215 |
1000 |
YZO-50-4 |
3.7*2 |
4-6 |
1446 |
1156 |
Note: This specification is just for reference, any changes are subject to the products.
Our professional after-sales team
Top class Technical team
Chinese style gifts for you
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
