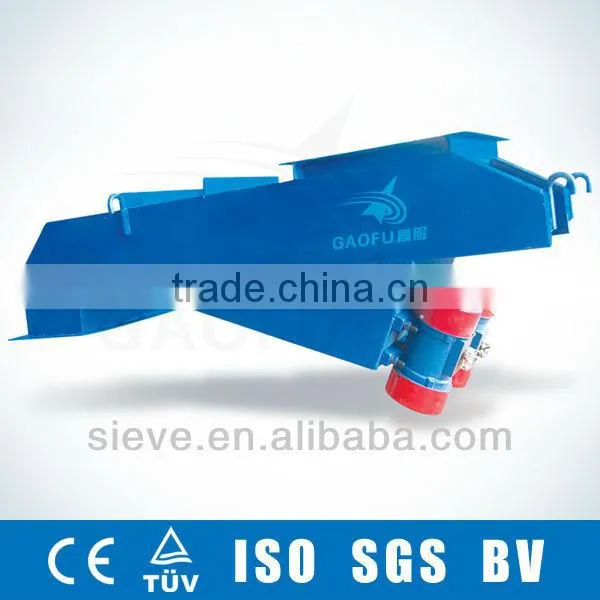

Motor vibrator feeder for matching other machine

standard containers,bare main machine, motors and small parts are packed in wooden cases

Specifications

1. Used in mine and quarry feeding
2. Easy to adjust & maintenance
3. We have 18 years proffessional experience.

     Motor vibrator feeder for matching other machine



1. Summary description:







ZG series motor vibrator feeder is a kind of general feeding device, which tends to standardization. It is widely applicable for relevant industries to convey all kinds of block, particle and dust materials in short distance. The feeder can well implement the on-line and automatic operation with continuous conveying system like belt, automatic scaling and quantitative packing system etc. It is an ideal feeding and conveying device for the industries of metallurgy, mining, coal, construction material, chemical, power, and grain process.



ZG series motor vibrator feeder compared with electromagnetic vibrating feeder and reciprocating feeder have the advantages of compact and easy structure, durable and sturdy, continuous and homogeneous feeding, and low wear of trough, long service life, and convenient maintaining. The feeder has two structure forms, open and closed, according to the requirements of field working environment; motor could be installed on upper, lower or side face in order to form three different vibrating source installation positions.



According to the requirements of user and field operation, the feeder has several choices of joint devices such as seated or suspended installments, and allocating control valve, working table or not.





2. Motor vibrator feeder Specification:





Model	Feed size(mm)	Capacity (t/h)	Motor	Power (KW)	Double amplitude	Weight(KG)
						Close	Open
ZG-25	60	25	YZO-2.5-4	0.25*2	2-3	240	174
ZG-30	80	30	YZO-5-4	0.4*2	2-3	256	184
ZG-50	90	50	YZO-5-4	0.4*2	2-3	295	235
ZG-100	105	100	YZO-8-4	0.75*2	2-5	384	321
ZG-200	115	200	YZO-17-4	0.75*2	2-5	432	372
ZG-400	140	400	YZO-20-4	2.0*2	2-5	686	606
ZG-750	190	750	YZO-30-4	2.5*2	4-6	1258	1030
ZG-1000	215	1000	YZO-50-4	3.7*2	4-6	1446	1156



Note: This specification is just for reference, any changes are subject to the products.

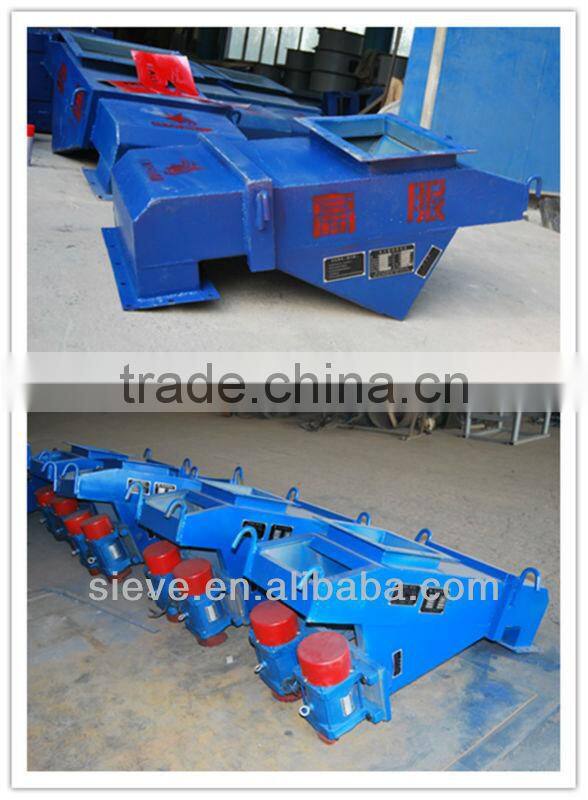

3. Machine disply:





4. Customer visit





            GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
