*** Product Application

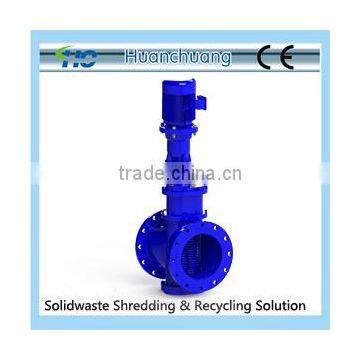

The HC Waste water Grinder is a high torque, low rotating speed and double shaft grinder under water. It is designed to pulverizing all kinds of solid waste ( clothing, plastic, trash, wood, aluminum can, glass bottle and other debris) to 8-12mm in the modern waste water and sludge to protect pumps, prevents binding and clogging problems. Accommodates high speed water flow while pulverizing various solid waste into particles that let the water flow harmlessly through pumps, pipes and so on.
The HC Waste water grinder is suitable for Waste Water Treatment Plant, Water works, Rain Pump station and the water inlet channel ( well), intercepts floating materials in water, guarantees normal operation of subsequent pump, it's an advance intercepting waste water device.
*** Specification
| Model | Flow Rate | Pipeline Diameter | Dimensions (mm) | Gross Weight | ||||
| m³/h | mm | A | B | C | D | E | kg | |
| HCP-90 | 90 | 100 | 1190 | 406 | 478 | 148 | 100 | 185 |
| HCP-140 | 140 | 150 | 1230 | 456 | 516 | 173 | 150 | 200 |
| HCP-185 | 185 | 200 | 1280 | 516 | 556 | 200 | 200 | 217 |
| HCP-230 | 230 | 250 | 1410 | 610 | 825 | 268 | 250 | 255 |
| HCP-275 | 275 | 300 | 1410 | 670 | 880 | 300 | 300 | 302 |

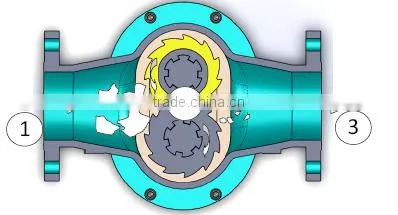

*** Operation Principle
1) .Solids enter grinders through pipeline flange connection.
2) .Solids pass through cutters for size reduction.
3) .Solids are cut into smaller particles and no threat to downstream equipment.

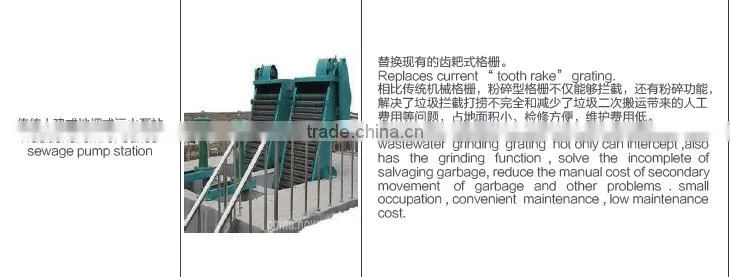

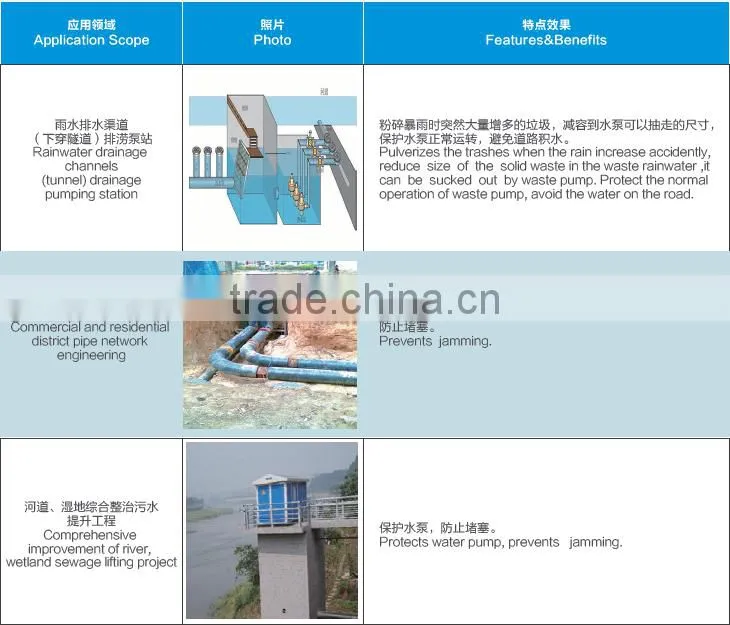

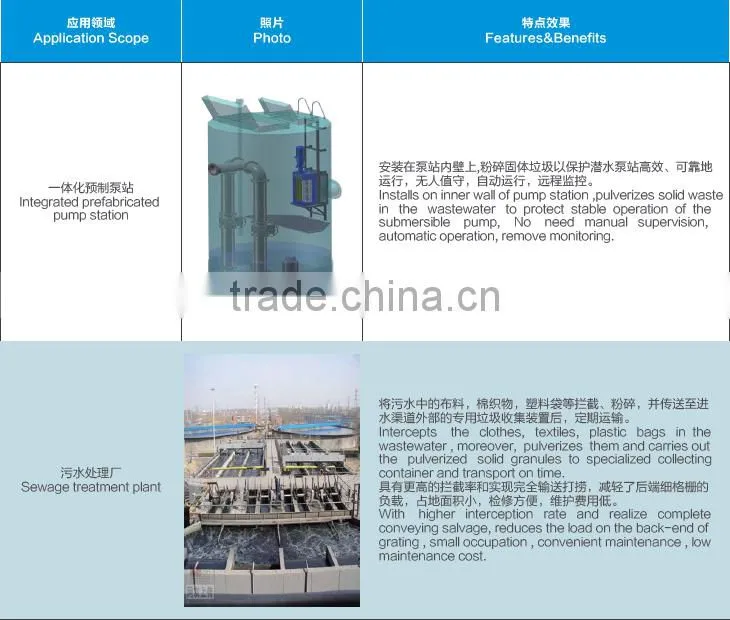

*** Application
*** Relevant Certificates

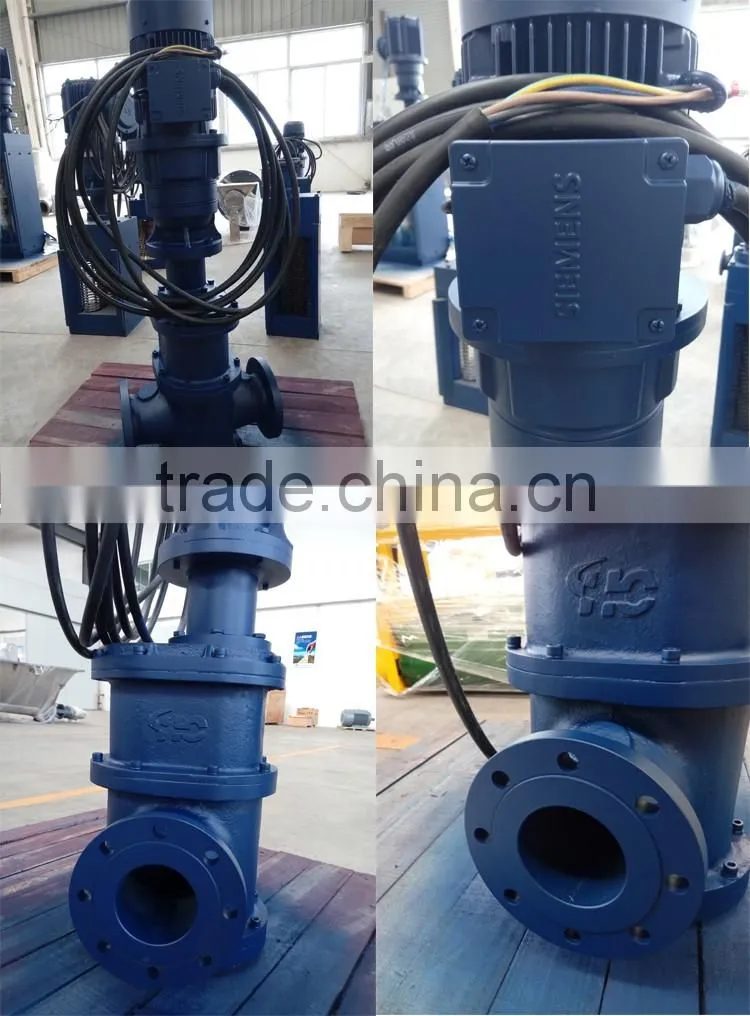

*** Relevant Photos
More information, can refer to our official website:
