Product Details
Place of Origin: | Fujian, China | Brand Name: | HC | Model Number: | HCC-N80 |
Product Description
Product Application

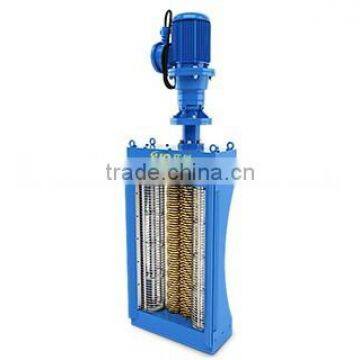

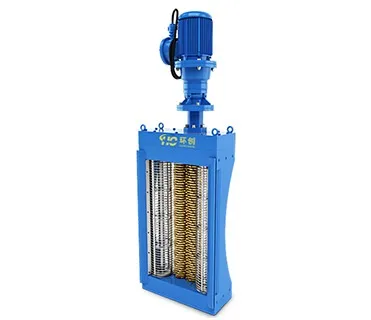

Huangchuang wastewater grinder introduction
The HC wastewater grinder is a high torque, low rotating speed and double shaft grinder under water. It is designed to pulverizing all kinds of solid waste(clothing, plastics, trash, wood, aluminum pot, glass bottle and other debris) to 6 mm-12mm in the modern waste water and sludge to protect pumps, prevents binding and clogging problems. Accommodates high speed water flow while pulverizing various solid waste into particles that let the water flow harmlessly through pumps, pipes and etc.
The HC wastewater grinder is suitable for wastewater treatment plant, waterworks, rain pumping station and the water inlet channel(well), intercepts floating materials in water, guarantees normal operation of subsequent pump, it’s an advance intercepting wastewater device.
The HC wastewater grinder owns 13 national patents including almost core technologies of wastewater grinder, easy installation, convenient maintenance, it’s the best choice to reduce the pump stations’ operating cost and prolong operating life.
Ours grinders series include Pipe-line wastewater grinder, Channel wastewater grinder(with0/1/2 drums),and Transit wastewater grinder.
Main Features
1) Electric Motor: dry & wet motor:IP55(optional) submersible & anti-explosion type:IP68(optional).special design for
grinder
2) dual shaft blade: low rotating speed, low noise level, high-torque power to shred any tough solids under water.
3)planetary gear reducer.
4)Elastic coupling(shock-absorbing and easy maintenance)
5) patented mechanical seal assembly.

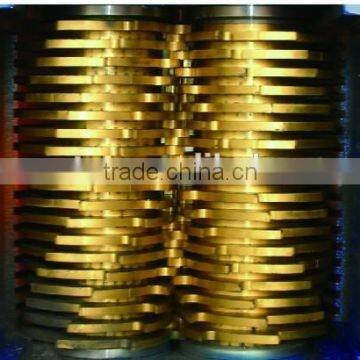

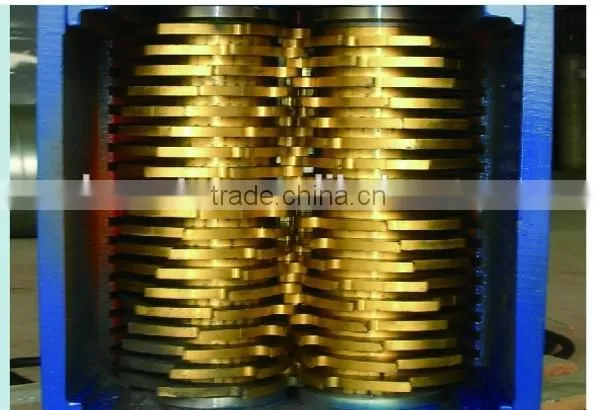

6)high hardness cutter and spacer
7)shaft and cutters : six -slot-spline
8)ductile Iron(ASTMA 536), sturdy and durable
9)installation slot.
Machine Parts

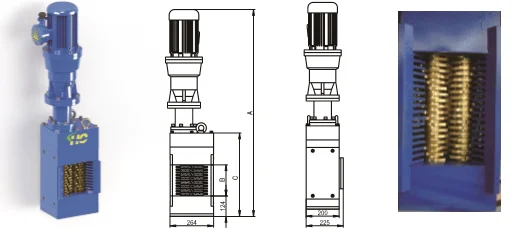

Name: No Drum Channel Grinder Specification
Brand:HC
Original: China
Main Features
No Drum Channel Grinder Specification is suitable for small channel with flow rate from 80m³ -1000 m³/hour.
optional main spare parts:
motor: IP55, IP68
optional: Dry & wet :IP55;Submersible &anti-explosion:IP68
Brand: HC
Original: China
optional main spare parts
Name: PLC cabinet indoor cabinet(IP55) outdoor (IP65)
cutter
Brand: HC
Original: China
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
