Product Application
Operation Principle
1． Solids enter grinders through open channel；
2．Solids pass through cutters for size reduction.；
3．Solids are cut into smaller particles and no threat to downstream equipment.
Materials of Construction
Motor: Customized, multiple power options
Reducer: Planet gear reducer, good ability to against the load impact
Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
The hardness is not less than 45~50HRC
Shaft: heat-treated alloy steel 4140
Mechanicals Seals: Tungsten Carbide faces
Housings: Ductile cast iron ASTMA 536
Frame: Stainless steel(304,316)
Main Features
Ease and Flexibility of Installation
● Adapts to most existing pipelines with little or no modification
Mechanical Seals
● Pressure capability up to 6.3kg/cm2;
● No seal flush required and no packing gland to adjust;
Manhole
● Manhole diameter: 1.2m
● Wall thickness: 12mm
Dual Shaft Design
●Low-speed, high torque grinders handle rags, rocks, wood,clothing, plastics and other debris
●Capable of handling a wider variety of solids than single shafted machine
Cutter Options
● Customized cutters with various tooth configurations to meet special application
Machine Parts

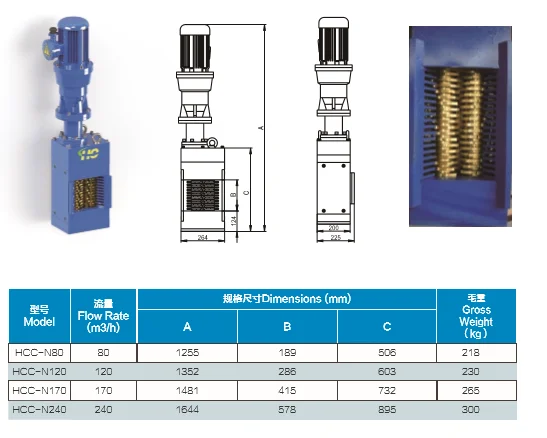

Name: No Drum Channel Grinder Specification
Brand:HC
Original: China
Main Features
No Drum Channel Grinder Specification is suitable for small channel with flow rate from 80m³ -1000 m³/hour.
optional main spare parts:
motor: IP55, IP68
optional: Dry & wet :IP55;Submersible &anti-explosion:IP68
Brand: HC
Original: China
optional main spare parts
Name: PLC cabinet indoor cabinet(IP55) outdoor (IP65)
cutter
Brand: HC
Original: China
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
