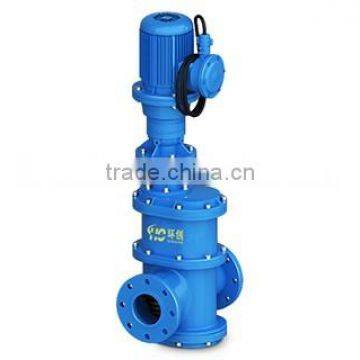

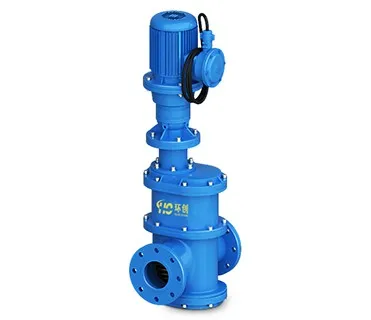

Pipine Wastewater Grinder

Product Application

Huangchuang wastewater grinder introduction

The HC wastewater grinder is a high torque, low rotating speed and double shaft grinder under water. It is designed to pulverizing all kinds of solid waste(clothing, plastics, trash, wood, aluminum pot, glass bottle and other debris) to 6 mm-12mm in the modern waste water and sludge to protect pumps, prevents binding and clogging problems. Accommodates high speed water flow while pulverizing various solid waste into particles that let the water flow harmlessly through pumps, pipes and etc.

The HC wastewater grinder is suitable for wastewater treatment plant, waterworks, rain pumping station and the water inlet channel(well), intercepts floating materials in water, guarantees normal operation of subsequent pump, it’s an advance intercepting wastewater device.

The HC wastewater grinder owns 13 national patents including almost core technologies of wastewater grinder, easy installation, convenient maintenance, it’s the best choice to reduce the pump stations’ operating cost and prolong operating life.

Ours grinders series include Pipe-line wastewater grinder, Channel wastewater grinder(with0/1/2 drums),and Transit wastewater grinder.

Main Features

1) Electric Motor: dry & wet motor:IP55(optional) submersible & anti-explosion type:IP68(optional).special design for

grinder

2) dual shaft blade: low rotating speed, low noise level, high-torque power to shred any tough solids under water.

3)planetary gear reducer.

4)Elastic coupling(shock-absorbing and easy maintenance)

 5) patented mechanical seal assembly.

6)high hardness cutter and spacer

7)shaft and cutters : six -slot-spline

8)ductile Iron(ASTMA 536), sturdy and durable

9)installation slot.

Machine Parts

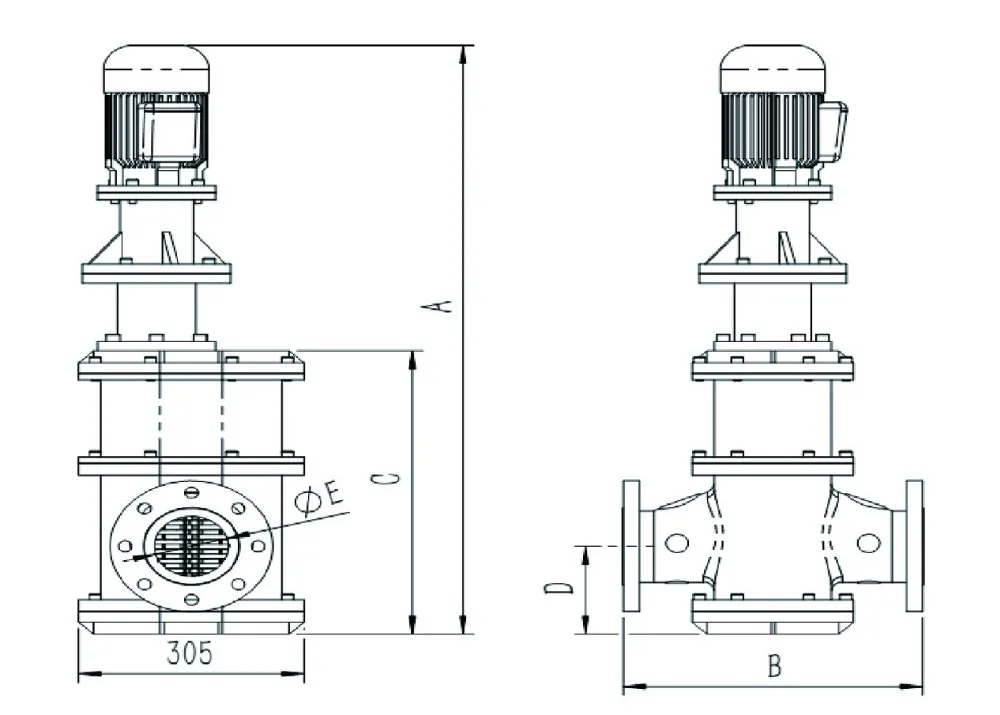

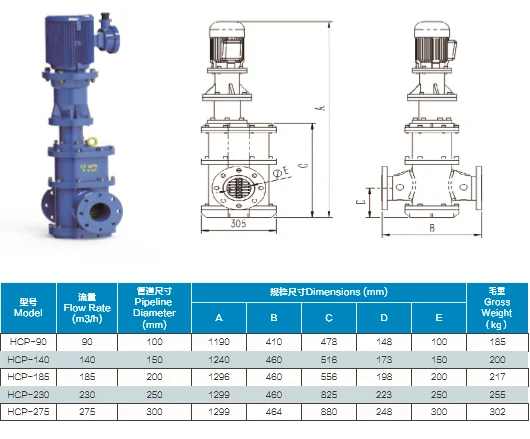

Name: pipeline grinder specification

Brand:HC

Original: China

Main Features

pipeline grinder can be installed in variety of diameter pipelines    to pulverize the solids to 8mm-12mm particles

optional main spare parts:

motor: IP55, IP68

optional: Dry & wet :IP55;Submersible &anti-explosion:IP68
Brand: HC
Original: China

optional main spare parts

Name: PLC cabinet

             reducer: imported planetary gear reducer

             cutter
Brand: HC
Original:  China
