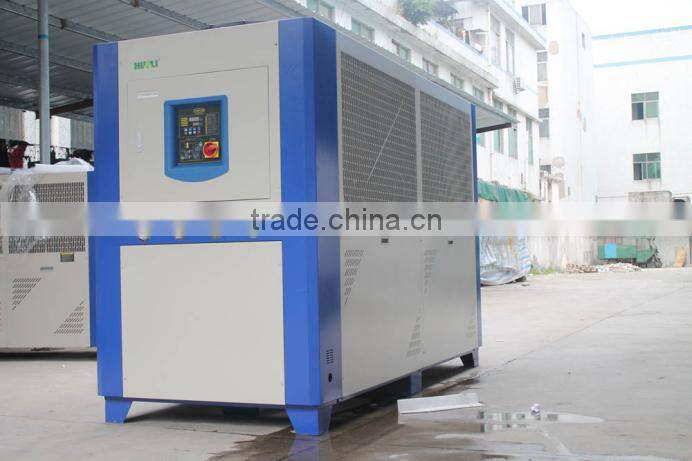

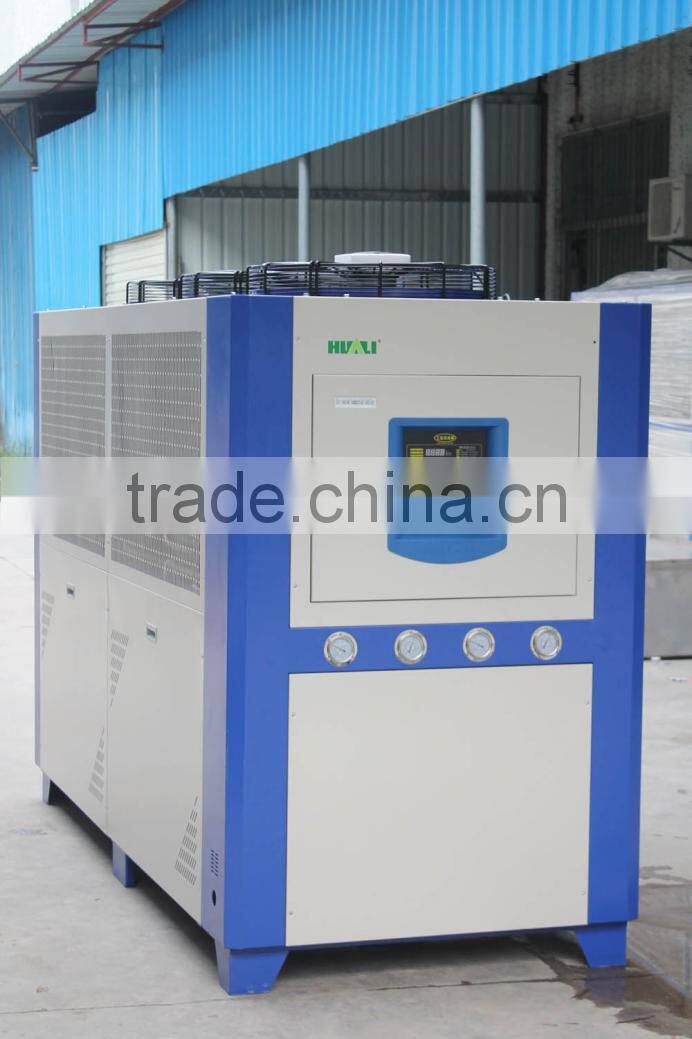

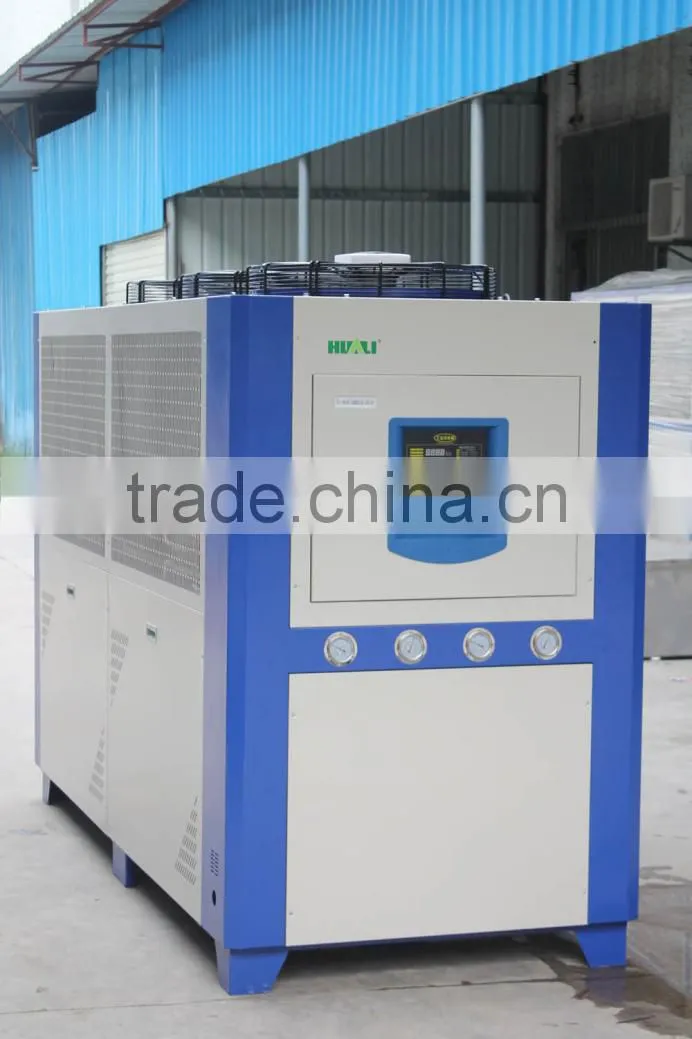

25HP Stainless Water Tank Plastic Industrial Water Chiller
25HP Stainless Water Tank Plastic Industrial Water Chiller
Production Description:
Industrial air cooled water chiller:
1. CE certification.
2. Imported Brand Parts
3. Capacity: 9.2KW to 142.2 KW.
4. Air cooled.
5. Chilled water temp: 5~20°C.
Product Function:
Golden brand industrial chiller are the perfect solution for many application of industry, particular for plastic field, such as: injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field: medicine, food, chemical, leaser, shoe-making, electronic, printing etc, which need to low the water temperature.
Payment term:
T/T, L/C, D/A, D/P, Paypal, Western&Union etc.
30% as deposit, 70% before delivery.
Product Detail:
Model HLLA ~ | 30DI | |
Rated Cooling Capacity | ×1000 kcal/h | 81.5 |
KW | 94.8 | |
Input Power (KW) | 31.2 | |
Comp. Input Power×Qty. (KW) | 12.5×2 | |
Chillded Water Pump Model | HT65-19 | |
Chilled Water Pump Power (KW) | 2.2 | |
Comp. Current (A) | 49.8 | |
Power Supply | 3φ-380V-50HZ | |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, | |
Number of Refrigeration Circuit | 2 | |
Capacity Control (%) | 0, 50, 100 | |
Refrigerant | R22 | |
Condenser | Ripple Aluminum Fins around Cooper Pipe | |
Power lnput of Fan (KW) | 4.0 | |
Evaporator | Shell and Tube Type | |
Water Side Max Pressure (MPa) | 1 | |
Dia.of Pipe to Evaporator (inch) | 2-1/2" | |
Chilled Water Flow (L/m) | 272.2 | |
Evaporator Water Pressure drop (kPa) | 32 | |
Running Noise dB(A) | 75 | |
Tank Volume (L) | 270 | |
Total weight (Kg) | 980 | |
Dimension L×W×H | 2200×1180×2200 | |
Product Sale Service:
Technical support online service provided.
Technical files service provided.
On-site training service provided.
Spare parts replacement and repair service provided.
Product Show:
Product Certificate:
| Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
| Why chose us ? |
