Home > Products > Air Cooling Machine > HIROSS high quality air cooling machine system industry water cooled low temp chiller

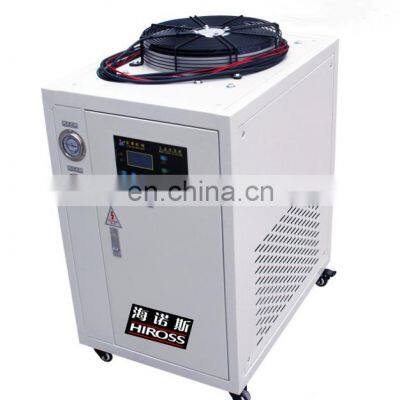

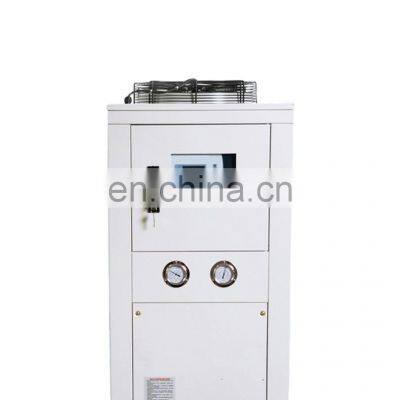

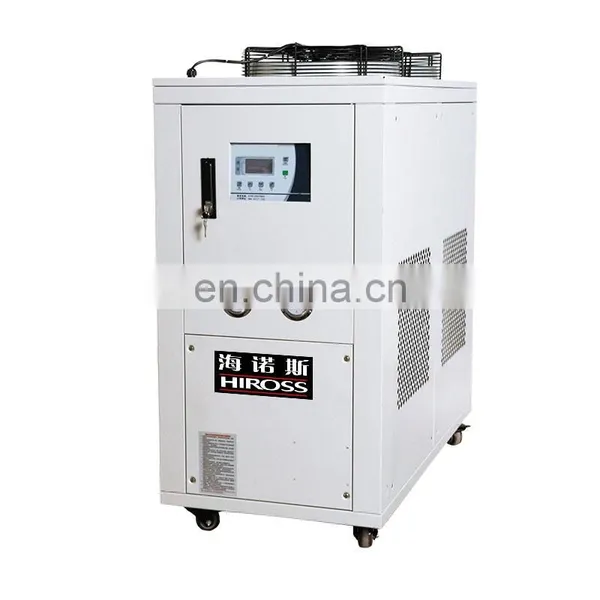

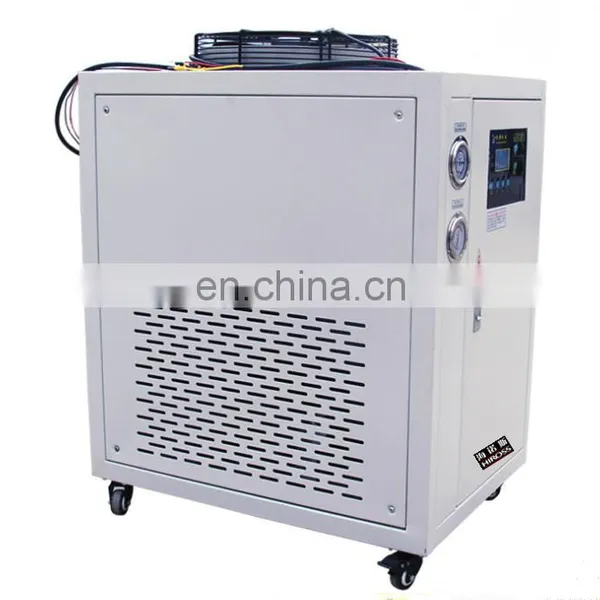

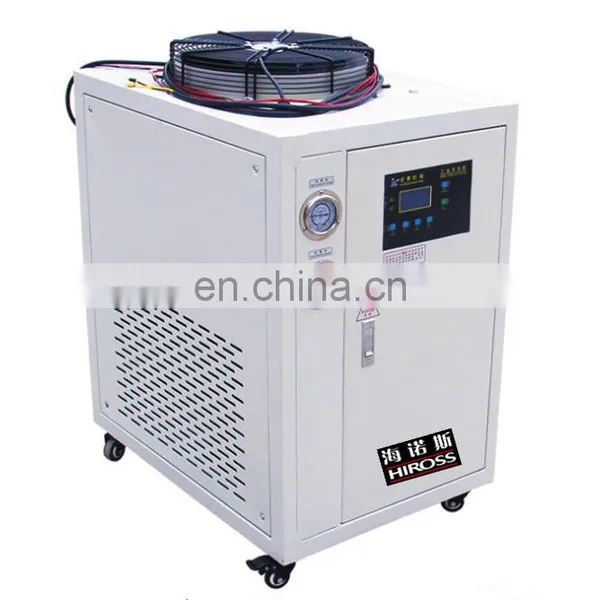

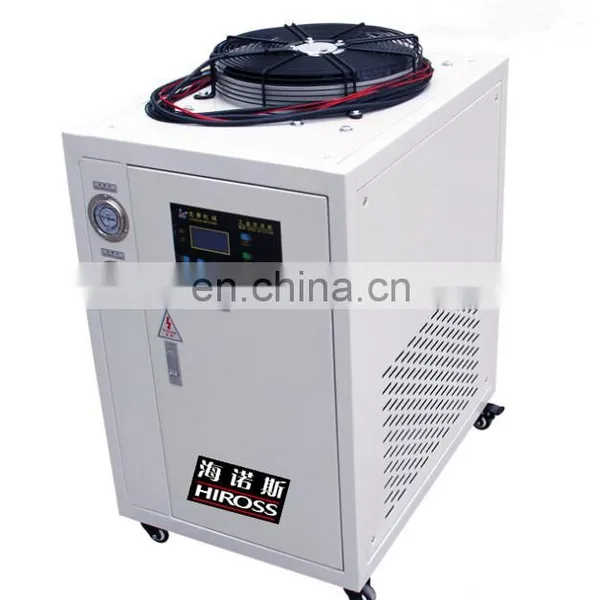

HIROSS high quality air cooling machine system industry water cooled low temp chiller
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
HIROSS High quality auto Air cooling machine industry cooling-water chiller machine
-
Factory direct sale 1/2\" BSP Float ball type drain valve Automatic drainer
-
JORC 1/2\" Automatic Drain Solenoid Valve with Timer for Air Compressor
-
Float type 1/2\" Jorc auto solenoid drain valve AD402
-
Auto Automatic Brass Water Drain Electronic with Mechanical Solenoid Valve Pneumatic Timer
-
Hot Sale 40 bar Jorc Electric Auto Drain Valve for High Pressure Air dryer
Product Description
Water Cooled Air Cooler
We supply water cooled air cooler. We will supply detailed specs from your exact requirement,like outlet air temp,cooling capacity
and fan motor power.Waiting for your news for further communication.
Water Cooled Air Cooler
Disposition：
1.Compressor:Sanyo /Copeland；
2.Punp brand electronic board of micro computer
3.LG Exchange the contactor , LG heat relay，Carlo Phase；
We supply water cooled air cooler. We will supply detailed specs from your exact requirement,like outlet air temp,cooling capacity
and fan motor power.Waiting for your news for further communication.
Water Cooled Air Cooler
Disposition：
1.Compressor:Sanyo /Copeland；
2.Punp brand electronic board of micro computer
3.LG Exchange the contactor , LG heat relay，Carlo Phase；
Specification
Parameter | Model | HRL-20W |
Cooling Capacity | KW 50HZ/60HZ | 67.14 78.56 |
Kcal/h 50HZ/60HZ | 57748 67565 | |
Input Power | KW | 17.3 |
Running Current | A | 42.1 |
Power supply | Volt | 3P-380V/415V-50HZ/60HZ |
Refrigerant | Name | R22 |
Fill(kg) | 2.8*4 | |
Control method | Thermal expansion valve | |
Compressor | Type | Hermetic scroll |
Power | 3.75*4 | |
Cooling Water | Water flow(m³/h) | 14.44 |
Pipe Diameter | 2'' | |
Chilled Water | Water flow(m³/h) | 11.55 |
Water tank(L) | 80 | |
Pipe Diameter | 2'' | |
Water pump | Power(KW) | 2.2 |
Pressure(Mpa) | 0.23 |
Detailed Images
Advantages
Application
Packing & Delivery
Certifications
Our company
HIROSS INDUSTRY MACHINERY CO.,ltd have more than 10 years experience in designing,researching and developing and manufacturing the purify,environment friendly,energy saving equipment.Product various from compressed air dryer, dehumidifier,filter,chiller,to accessories,etc.
HIROSS company occupies a 1500 square meter manufacturing field,focus on advanced technology,combining with internationally processing technology to develop and manufacture a series of high performance,low vibration, quiet operation and trouble free equipment.A series of HIROSS products have passed ISO9001,CE,2008 international quality system certification.
We are pleased to welcome you from home or abroad to our company for a visit or a business talk, even if you have already had a familiar partner.
HIROSS company occupies a 1500 square meter manufacturing field,focus on advanced technology,combining with internationally processing technology to develop and manufacture a series of high performance,low vibration, quiet operation and trouble free equipment.A series of HIROSS products have passed ISO9001,CE,2008 international quality system certification.
We are pleased to welcome you from home or abroad to our company for a visit or a business talk, even if you have already had a familiar partner.
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the
process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Types of chiller system?
Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.
4. What type of the chiller should I use ?
It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.
5. How to select the model of the chiller ?
It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature,Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.
6.Cooling capacity unit conversion?
1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;
7.The chiller can heat?
Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.
8. What is production period ?
Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.
9.What is your company after-sales service ?
Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile,welcome to consulting the technical knowledge.
10.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
