HLLA~08SI Air cooled Industrial Water Chiller Injection Use Chiller
Production Description:
1. Working power supply: 380V/50Hz/3Ph.
2. Temperature control precision: ≤ ± 1 °C.
3. Temperature control range: 5 °C~20 °C.
4. Total power: 8.15KW.
5. Cooling capacity: 24.2KW.
6. Refrigerant: R22 / R407C / R134A.
7. Working environment: temperature ≤ 36 °C.
Product Function:
The water chiller is widely applicable for:
• Induction heating equipment, and diathermy device
• High/ medium frequency power supply, and IGBT quenching equipment
• Die casting machine, injection molding machine
• Rectifier equipment, and resistance welding machine
• Other water equipment with higher requirements on water quality and water temperature. .
Product Detail:
Model HLLA ~ | 08SI | |
Rated Cooling Capacity | ×1000 kcal/h | 20.8 |
KW | 24.2 | |
Input Power (KW) | 8.15 | |
Comp. Input Power×Qty. (KW) | 6.35 | |
Chillded Water Pump Model | HT40-15 | |
Chilled Water Pump Power (KW) | 1.1 | |
Comp. Current (A) | 14 | |
Power Supply | 3φ-380V-50HZ | |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, | |
Number of Refrigeration Circuit | 1 | |
Capacity Control (%) | 0, 100 | |
Refrigerant | R22 / R407C | |
Condenser | Ripple Aluminum Fins around Cooper Pipe | |
Power lnput of Fan (KW) | 0.7 | |
Evaporator | Shell and Tube Type | |
Water Side Max Pressure (MPa) | 1 | |
Dia.of Pipe to Evaporator (inch) | 1-1/2" | |
Chilled Water Flow (L/m) | 69.4 | |
Evaporator Water Pressure drop (kPa) | 17 | |
Running Noise dB(A) | 73 | |
Tank Volume (L) | 180 | |
Total weight (Kg) | 430 | |
Dimension L×W×H | 1500×1100×2200 | |

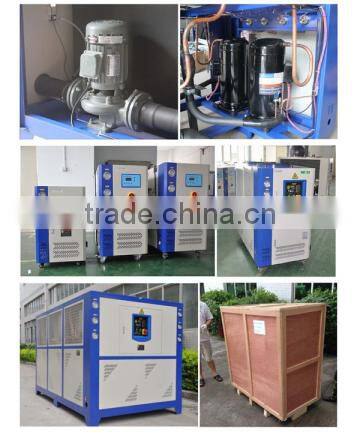

Product Show:
Product Certificate:
| Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
