Good quality HLLA~10SI 32.4 KW Cooling capacity Industrial Air Cooled Chiller
Production Description:
1. World famous scroll compressor: Copeland,Dakin,Sanyo.
2. Adopt stainless stell water tank.
3. We have own processing department of red cooper piper and professional welding technician team for weld, completely eradicate any concurrency problems of weld break.
4. Cooling capacity:9.3-142.2KW
5. Support kinds of refrigerants,R22/R407C/R410A
6. We would like to production non-standard unit accoridng to client requirement.
Product Function:
HLLA series industrial chiller are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature, which requested by the modernized machinery production, and greatly improved the production efficiency and product quality.
HUALI Brand Industrial chiller is easy to operate with reasonable design, high quality and complete range of specifications. We hope it will be a good partner for your modernized industry,
Noted:
1. Air cooled industrial chiller is no need to apply with cooling tower, and convenient to install and move in the factory, but the cooling efficiency will be affected by the ambient working condition.
2. Water cooled chiller, a little complicated to assemble the cooling tower and cooling pump, need much more water sources, but it supply the better cooling efficiency in the higher ambient working condition compare to air cooled one.
Product Detail:
Model HLLA ~ | 10SI | |
Rated Cooling Capacity | ×1000 kcal/h | 27.9 |
KW | 32.4 | |
Input Power (KW) | 10.4 | |
Comp. Input Power×Qty. (KW) | 8.1 | |
Chillded Water Pump Model | HT40-15 | |
Chilled Water Pump Power (KW) | 1.1 | |
Comp. Current (A) | 17.5 | |
Power Supply | 3φ-380V-50HZ | |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, | |
Number of Refrigeration Circuit | 1 | |
Capacity Control (%) | 0, 100 | |
Refrigerant | R22 | |
Condenser | Ripple Aluminum Fins around Cooper Pipe | |
Power lnput of Fan (KW) | 1.2 | |
Evaporator | Shell and Tube Type | |
Water Side Max Pressure (MPa) | 1 | |
Dia.of Pipe to Evaporator (inch) | 1-1/2" | |
Chilled Water Flow (L/m) | 92.9 | |
Evaporator Water Pressure drop (kPa) | 23 | |
Running Noise dB(A) | 75 | |
Tank Volume (L) | 180 | |
Total weight (Kg) | 480 | |
Dimension L×W×H | 1500×1100×2200 | |

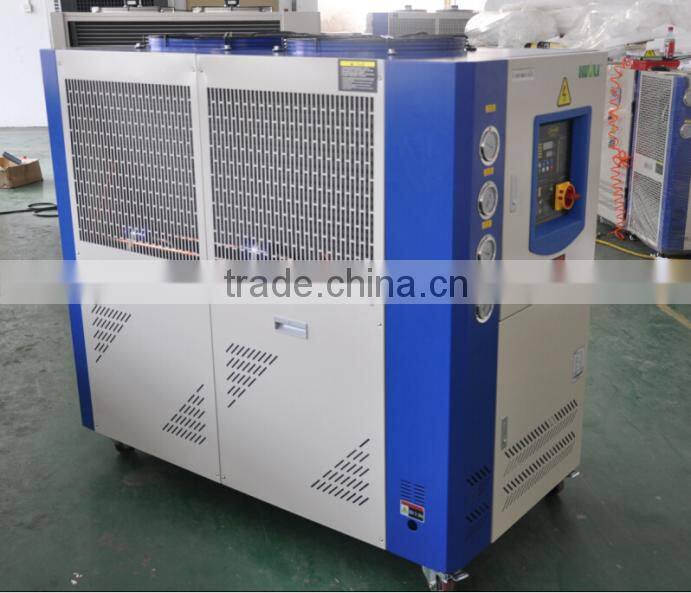

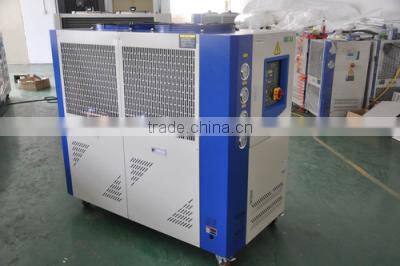

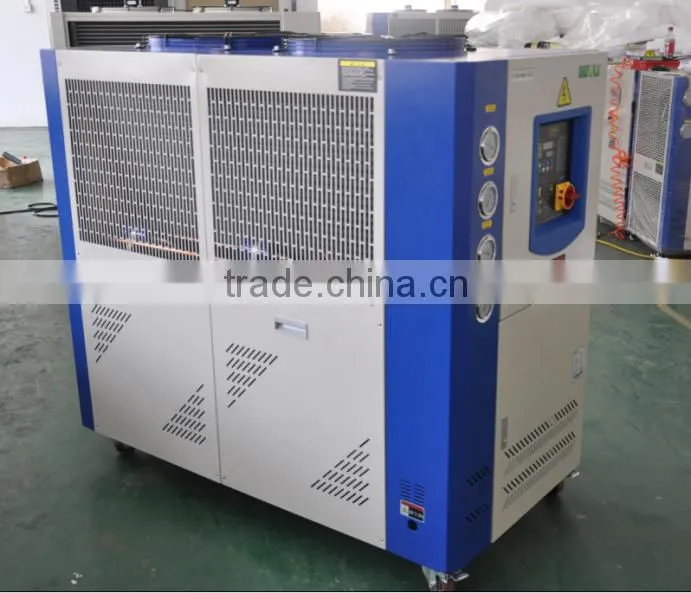

Product Show:
Product Certificate:
| Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
