Copeland compressor Industrial Water Chiller Plastic Injection Water Chiller
Production Description:
1. Air-cooling type;
2. With Copeland compressor;
3. Electricity-saving and endurance;
4. Certification: CE Certification;
5. Rated Cooling Capacity: 32.4KW;
6. Chilled Water Range: 5~20℃;
7. No need to compact cooling tower and water pump;
8. Easy installation with running low noise.
9. Phase reversion protection, Overload current protection, Low & High pressure protection, Low temp. protection, Water flow protection, and other protections.

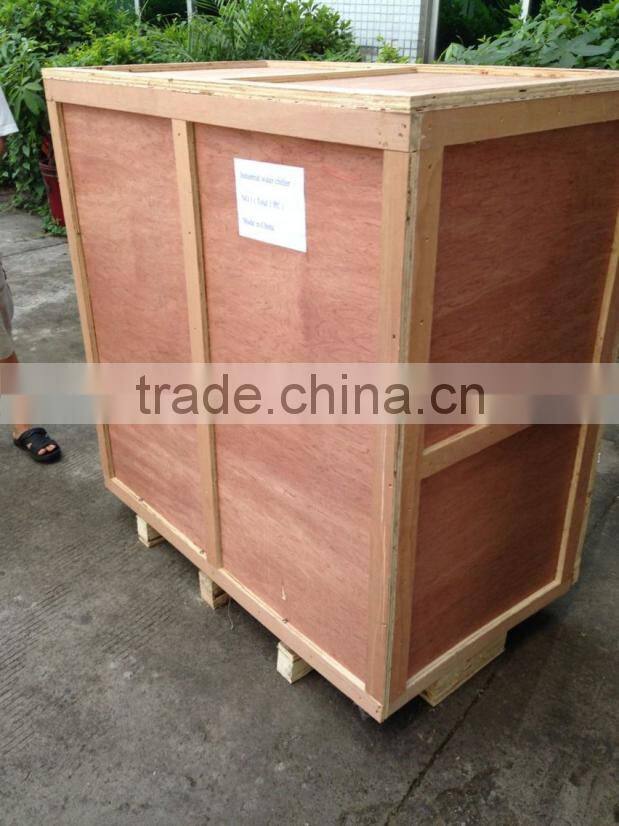

10. Standard wooden packaged.

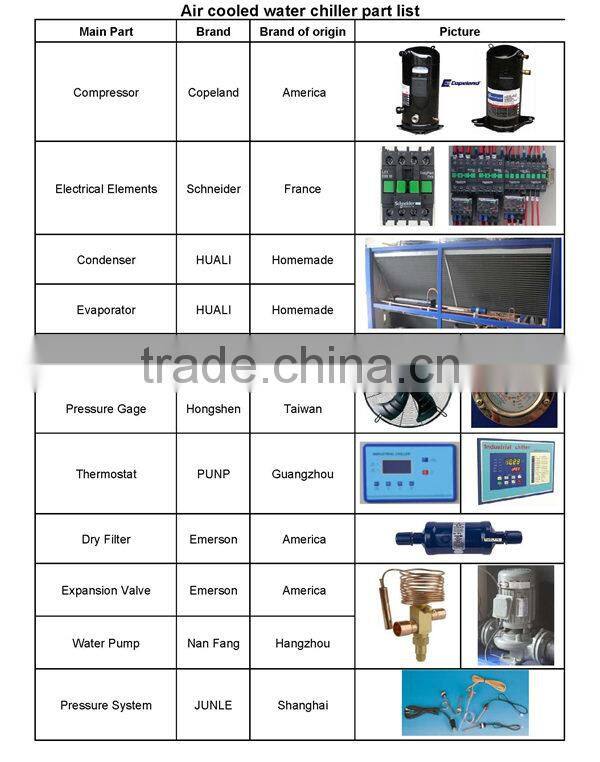

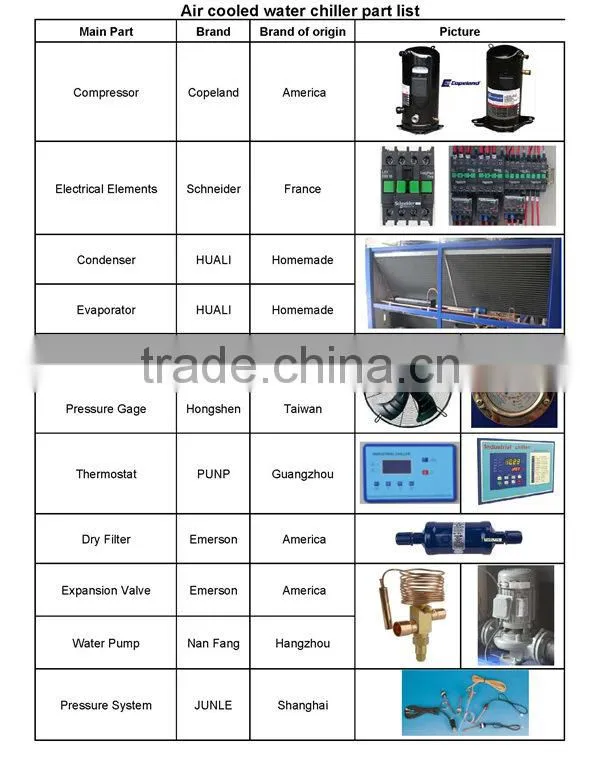

Spare parts:
Compressor: Copeland Brand;
Electrical Elements: Schneider Brand;
Condenser/Evaporator: Huali Brand;
Fan Motor: Maer Brand;
Microcomputer program controller/Thermostat: Pump Brand;
Dry filter: Emerson Brand;
Expansion Valve: Emerson Brand;
Product Detail:
Model HLLA ~ | 40TI | |
Rated Cooling Capacity | ×1000 kcal/h | 97.0 |
KW | 112.8 | |
Input Power (KW) | 33.7 | |
Comp. Input Power×Qty. (KW) | 9.3×3 | |
Chillded Water Pump Model | HT65-19 | |
Chilled Water Pump Power (KW) | 2.2 | |
Comp. Current (A) | 55.8 | |
Power Supply | 3φ-380V-50HZ | |
Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, | |
Number of Refrigeration Circuit | 3 | |
Capacity Control (%) | 0, 33, 66, 100 | |
Refrigerant | R22 | |
Condenser | Ripple Aluminum Fins around Cooper Pipe | |
Power lnput of Fan (KW) | 3.6 | |
Evaporator | Shell and Tube Type | |
Water Side Max Pressure (MPa) | 1 | |
Dia.of Pipe to Evaporator (inch) | 2-1/2" | |
Chilled Water Flow (L/m) | 292.2 | |
Evaporator Water Pressure drop (kPa) | 32 | |
Running Noise dB(A) | 75 | |
Tank Volume (L) | 270 | |
Total weight (Kg) | 1130 | |
Dimension L×W×H | 3200×1180×2200 | |
After-sale Service:
Testing before leaving factory.
Spare parts replacement.
Repair service oversea available.
Technical instructions service and documents provided.

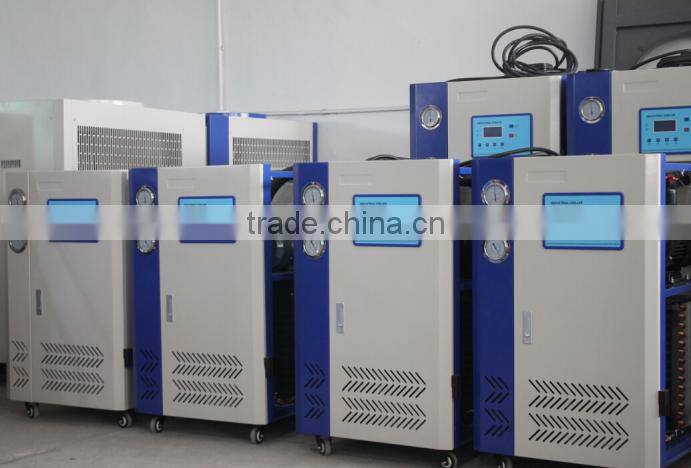

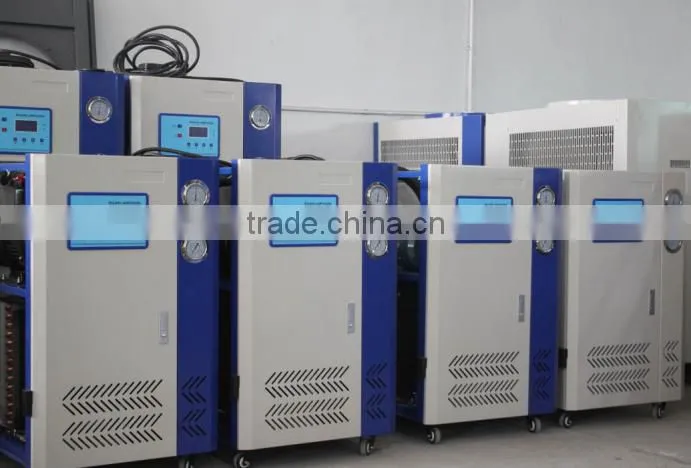

Product Show:

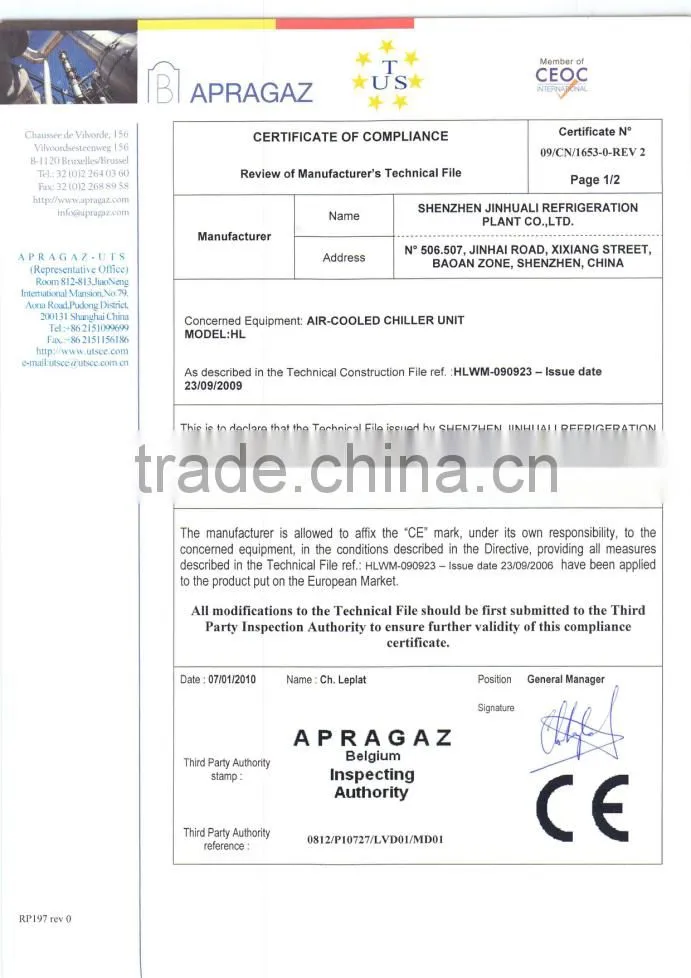

Product Certificate:
| Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
| Why chose us ? |
|
