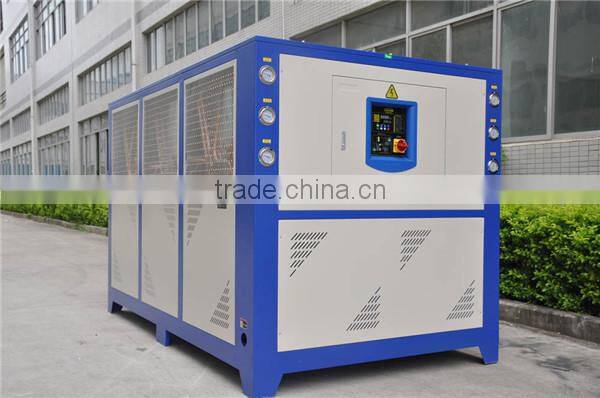

Box type High Efficient 142.2 KW Industrial Air Cooled Chiller

  Model  HLLA ~

45TI

Rated Cooling Capacity

×1000 kcal/h

122.3

KW

142.2

Input Power (KW)

45.7

Comp. Input Power×Qty.  (KW)

12.5×3

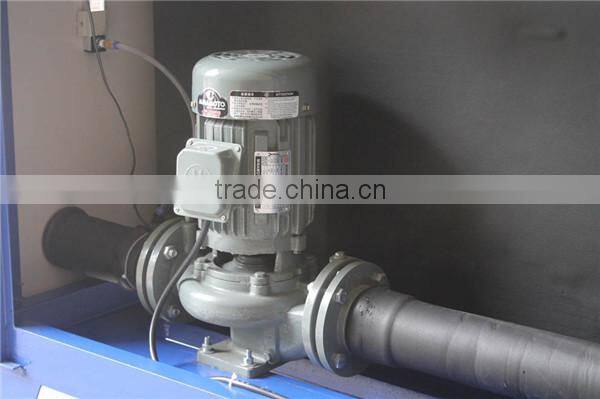

 Chillded Water Pump Model

HT65-19

 Chilled Water Pump Power  (KW)

2.2

 Comp. Current (A)

72.6

Power Supply

3φ-380V-50HZ

 Safety Protection

Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,

 Number of Refrigeration Circuit

3

 Capacity Control (%)

0, 33, 66, 100

 Refrigerant

R22

 Condenser

Ripple Aluminum Fins around Cooper Pipe

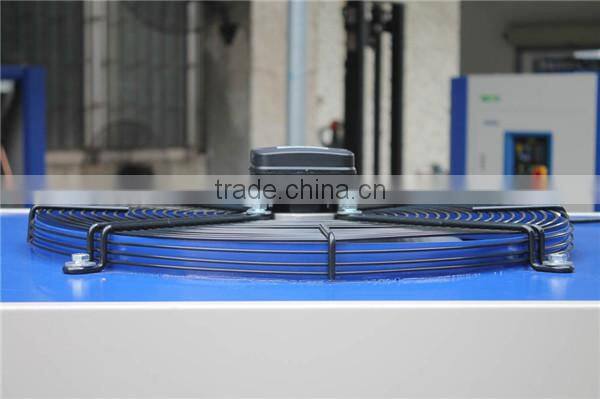

 Power lnput of Fan (KW)

6.0

 Evaporator

Shell and Tube Type

 Water Side Max Pressure (MPa)

1

 Dia.of Pipe to Evaporator (inch)

2-1/2"

 Chilled Water Flow (L/m)

408.3

 Evaporator Water Pressure drop (kPa)

31

 Running Noise dB(A)

75

 Tank Volume (L)

270

 Total weight (Kg)

1280

 Dimension L×W×H

3200×1180×2200

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
