Provincial power/ball mill grinding machine for sell

FOB Price

USD $5,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Ball Mill
Motor Type	AC Motor	Power(W)	According to model
Capacity(t/h)	According to model	Place of Origin	Henan, China
Brand Name	XinGuang	Model Number	According to model
Dimension(LWH)	According to model	Weight	According to model
Certification	ISO9001:2008	Warranty	365days
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1.Horizontal ball mill

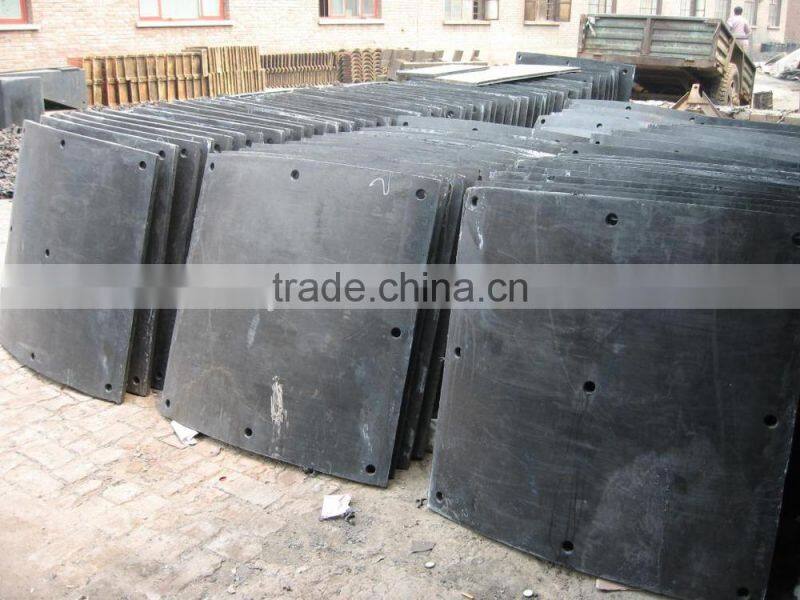

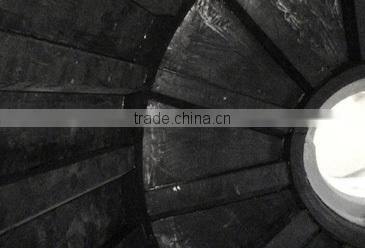

Horizontal ball mill including liquid ball mill and dry ball mill. Grinding cylinder can be divided into material processing for: carbon steel, stainless steel lining, lined with marble, alumina, lining of wear-resisting polyurethane, etc.

Working Principle

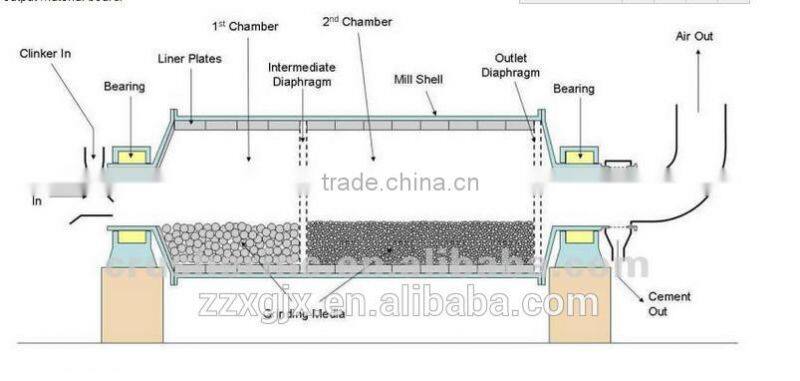

The barrel of grinder is driven by the motor through transmission and reduction gears to rotate at a proper speed. The grinding media in the rotating barrel is lifted to a certain height and then acts by tossing and falling, by which the material is impacted and grinded.

Ball mill accessories

Model	Rotationna speed (r/min)	Ball load (t)	Feeding size(mm)	Output size (mm)	Capacity	Power(kw)	Weight (t)
Model	Rotationna speed (r/min)	Ball load (t)	Feeding size(mm)	Output size (mm)	(t/h)	Power(kw)	Weight (t)
900×1800	36~38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
1500×4500	27	11	≤25	0.074-0.4	3-6	110	21
1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	28
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	56
2400×3000	21	23	≤25	0.074-0.4	7-50	245	54
2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
