Specifications
Widely used ball millwet or dry grinding
stable discharging size
various grinding media & liner
ISO, CE, BV certified

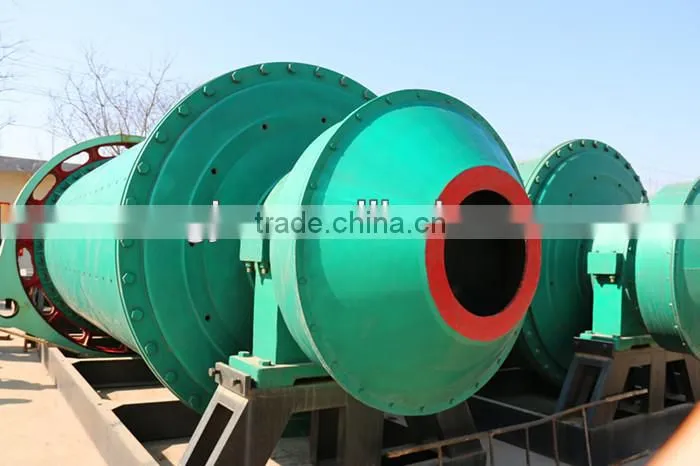

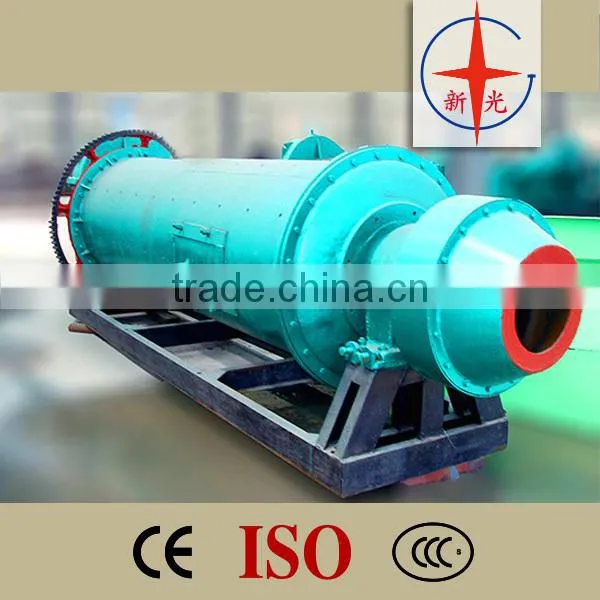

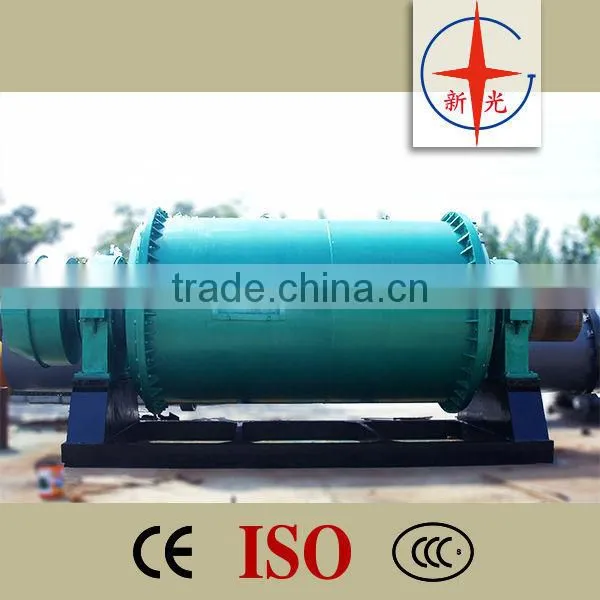

1. Ball Mill Description
Ball mill is the key equipment for re-crushing the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
2.Ball Mill Features
Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.
3.Applications of Ball Mill
1) Size reduction of various materials
2) Feed sizes of 25mm to product sizes of 0-400mesh
3) Wet or dry grinding
4) Continuous grinding process
5) Mineral processing
6) Environmental grinding

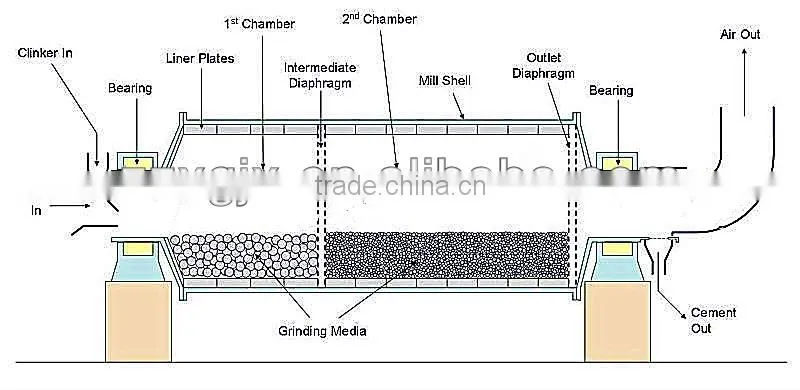

4.Working Principle of Ball Mill
To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs.
5.Beneficiation production line
At first, ore is preliminary broken by jaw crusher. When it has been broken to a reasonable size, it will be send to ball mill symmetrical through bucket and feeder. Next, ball mill will crush and grand ore then go to next step- Classification.
6.Technical parameters
|
Model |
Drum rotary speed (r/min) |
Feeding capacity (t) |
feeding size (mm) |
Discharging size (mm) |
Output (t/h) |
Power (kw) |
Weight (t) |
Φ900×2100 |
38 |
1.5 |
≤15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
4 |
7. Certificate
We are the largest enterprise which specialized in the production of beneficiation machinery in Zhengzhou. It is China import and export enterprise, China AAA grade quality credit enterprise, ISO9001 international quality certification enterprise and international BV quality and environmental system certification enterprise.

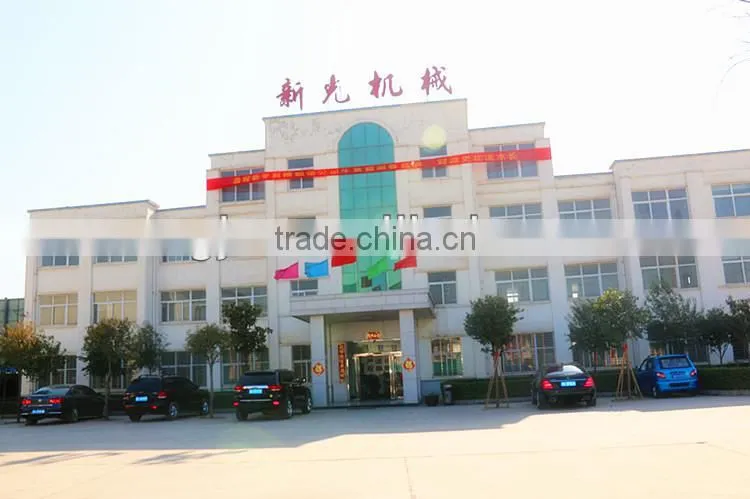

8.Company Introduction
Zhengzhou Xinguang Mining Machinery Manufacturing Co., Ltd was founded in the 1980s, now has become a group company which own many branches in China and abroad. As a professional mining machinery manufacturer, we provides complete sets of mine selection machines, sand making equipment, cement making equipment, and compound fertilizer equipment, with a production capacity ranging from five tons to five thousand tons per day.
