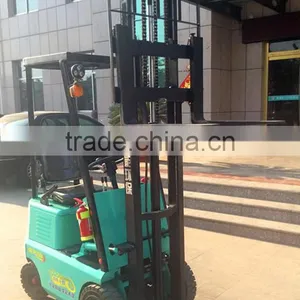

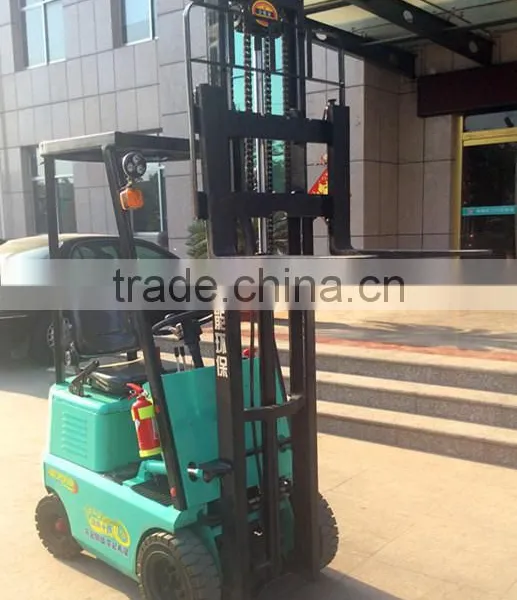

China 0.5ton Electric Forklift, Forklift Truck, Fork Lift
1.Main technical parameters:
Model | CPD500 | CPD1000 |
Power type | Electric | Electric |
Operating mode | Seated type | Seated type |
Rated load | 500kg | 1000kg |
Max. lifting height | 2000mm | 3000mm |
Min. turning radius | 1200mm | 1650mm |
Door frame tilt angle | 8/8 degree | 6/12 degree |
Lift speed | 480/460mm/s | 480/460mm/s |
Down speed | 400mm/s | 400mm/s |
Driving speed | 12km/h | 15km/h |
Load center distance | 300mm | 400mm |
Turned way | Electric power(Mechanical) | Electric power |
Machine weight | 725kg | 1250kg |
Lifting motor power | 2kw | 2kw |
Drive motor power | 1.5kw | 2kw |
Motor brake | Front wheel foot brake | Front wheel foot brake |
Min ground clearance | 80mm | 100mm |
Overall dimension | 1350*760*1780mm | 1780*960*2150mm |
Fork length | 630mm | 630mm |
Fork width | 90mm | 90mm |
Max.extend width | 700mm | 700mm |
Wheel base | 890mm | 1080mm |
wheel tread | 620/580 | 780/730 |
Front tyre size | 15*4½-8 | 16*6-8 |
Rear tyre size | 3.50-5 | 15*4½-8 |
Battery | 12v/170ah * 4 | 12v/70ah * 5 |
Working time for one charge | Less than 8h | Less than 8h |
Input voltage | 220v | 220v |
Charging time | 8/10h | 8/10h |
2.Electic forklift application:
Widely used in Railway stations, ports, airports, factories, warehouses,containers and so on .
3.Friend tips:
we are a professional manufacturer for making electric forklift and have enjoyed a good reputation for many years. We have confidence of making high class products for you , so any requirements ,please contact us freely ,we can reply you promptly!
a) Mini electric forklift with small turning radius of 1200mm which can pass through 760mm width aisle
b) No pollution, energy efficiency and environmental protection.
c) Power consumption: 3kw/h per day
d) Own national patents, more competitive
e) Stable four fulcrum, more secure, and more reliable
f) Full model stamping,stronger interchangeable
g) First spraying after assembly, clearer appearance
h) Can be equipped with different equipment to achieve a multi-purpose machine
