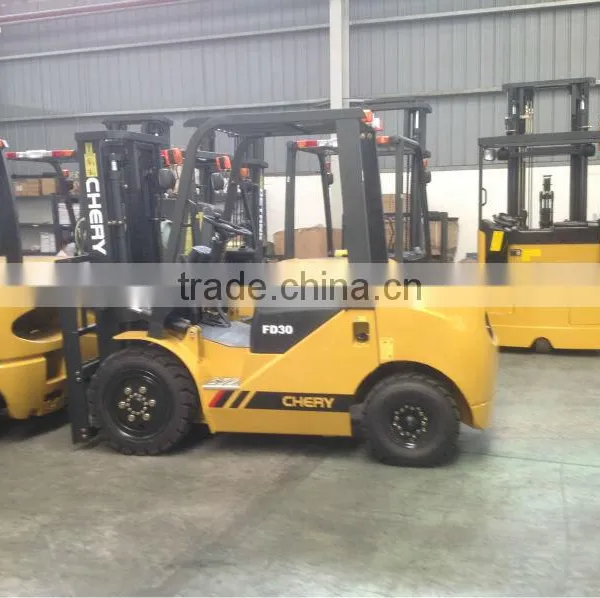

2 Ton Chinese Mini Truck Forklift

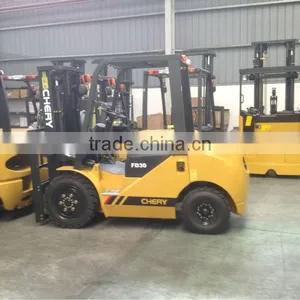

2 Ton Chinese Mini Truck Forklift thumbnail-1
2 Ton Chinese Mini Truck Forklift photo-1
US$ 7,000 - 9,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Model Number:
FD20
Contact Supplier Request Quote Chat Now
Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Model Number FD20
Type Powered Pallet Truck
Power Souce Gasoline Engine
Rated Loading Capacity 2000KG
Max. Lifting Height 6m
Min. Lifting Height 3m
Fork Length 1070mm
Fork Width 122mm
Overall Dimensions 2530*1160*1990mm
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

2 Ton Chinese mini truck
1 Various attachment
2.Customization accept
3.China or Import Engine

2 Ton  Chinese mini truck



Details

Technical parameters

Parameter Name

Unit

FD20C

Speciality

Power model



Diesel

Rated capacity

kg

2000

Load center

mm

500

Lifting height

mm

3000

Free lifting height

mm

135

Size of forks (L*W*H)

mm

1070*122*40

Mast tilt angle(Front/Back)

.

6/12

Minimum turning radius

mm

2240

Minimum right-angle stacking aisle width

mm

4110

Minimum right-angle aisle width

mm

2010

Minimum ground clearance

mm

110

Overhead guard height

mm

2090

Front overhang

mm

470

performance

Max driving speed (Full load)

km/h

19

Max lifting speed (Full load/Without load)

mm/s

490/510

Max tractive force (Full load)

KN

17

Max grade ability

%

20

Size

Overall length( No forks)

mm

2530

Overall width

mm

1160

Max fork lifting height(With load backrest)

mm

4024

Mast height

mm

1990

Chassis

Tyre               Front wheel

mm

7.00-12-12PR

Tyre               Back wheel

mm

6.00-9-10PR

Axle base

mm

1600

Wheel span(Front/Back)

mm

970/970

Dead weight(No load)

kg

3350

drive

Battery

               Voltage/Capacity

V/Ah

12/90

Engine

Model



XINGCHANG490BPG

Rated power

kw/r.p.m

40/2650

Rated torque

Nm/r.p.m

162/2000

Cylinders diameter *Stroke

mm

90*105

Number of cylinders



4

displacement

L

2.82

gears front/back

L

60

working pressure

Mpa

17.5



OPTION:

As a professional manufacturer of forklift, we also can offer you customized service, the following items are optional:



♦windscreen ♦two/three full-free mast♦luxury seat♦solid tyre♦warning light♦fan♦colored tyre(white/green)customer appointed color.

2 Ton Chinese mini truck forklift
