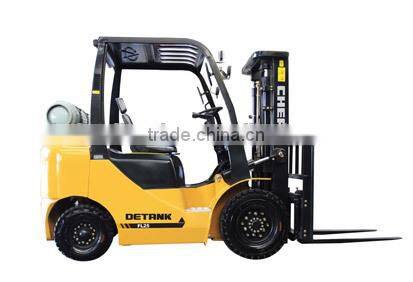

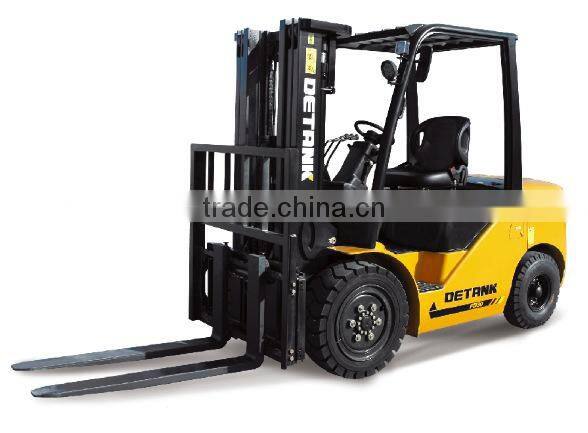

Cheap Forklift Truck 3.5 Ton

Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd.

US$ 7,000 - 9,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Model Number:

FD35

Payment & Shipping

Payment Methods:

Port of Shipment:

wuhu

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Model Number FD35

Type Powered Pallet Truck

Power Souce Gasoline Engine

Rated Loading Capacity 3.5 T

Max. Lifting Height 6,

Min. Lifting Height 3m

Fork Length 1070mm

Fork Width 125 mm

Overall Dimensions 2745*1230*2095mm

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Diesel forklift 3.5 ton

Details

Technical parameters		Parameter Name	Unit	FD35E
Speciality		Power model		Gasoline
		Rated capacity	kg	3500
		Load center	mm	500
		Lifting height	mm	3000
		Free lifting height	mm	145
		Size of forks (LWH)	mm	107012545
		Mast tilt angle(Front/Back)	.	6/12
		Minimum turning radius	mm	2445
		Minimum right-angle aisle width	mm	4320
		Minimum ground clearance	mm	120
		Overhead guard height	mm	2110
		Front overhang	mm	475
performance		Max driving speed (Full load)	km/h	20
		Max lifting speed (Full load)	mm/s	450
		Max tractive force (Full load)	KN	18
		Max grade ability (Full load)	%	20
Size		Overall length( No forks)	mm	2745
		Overall width	mm	1230
		Max fork lifting height(With load backrest)	mm	4265
		Mast height	mm	2095
Chassis		Tyre Front wheel	mm	28*9-15-12PR
		Tyre Back wheel	mm	6.50-10-10PR
		Axle base	mm	1700
		Wheel span(Front/Back)	mm	1000/970
		Dead weight(No load)	kg	4850
drive	Battery	Voltage/Capacity	V/Ah	12/90
	Engine	Model		NISSAN
		Rated power	kw/r.p.m	37/2500
		Rated torque	Nm/r.p.m	148/1800
		Cylinders diameter *Stroke	mm	108*125
		Number of cylinders		4
		displacement	L	2.54
		gears front/back	L	100
		working pressure	Mpa	17.5
