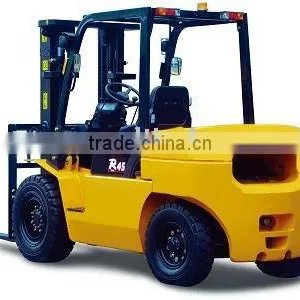

Diesel Forklift (HC)

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier

5Yrs

US$ 10,000 - 50,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name HC

Model Number HC series

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 10ton

Max. Lifting Height 7000mm

Min. Lifting Height 25200mm

Fork Length 1200mm

Fork Width 60mm

Specifications

Diesel Forklift Truck, 1~18 ton
Standard mast height: duplex 3000mm
Standard tyre: pneumatic
Option: solid tyre, sideshift..

Hangcha HC 10 ton Diesel Forklift

10T Diesel Forklift specification
1	Model				CPCD100
2	Type				RW14	RG16	RG17	RG25
3	Power type				Diesel	Diesel	Diesel	Diesel
4	Rated capacity			kg	10000	10000	10000	10000
5	Load center			mm	600	600	600	600
6	Lift height			mm	3000	3000	3000	3000
7	Free lift height			mm	200	200	200	200
8	Fork size		LWT	mm	150016080	150016080	150016080	150016080
9	Fork spread (outside)		Min./Max.	mm	440/1800	440/1800	440/1800	440/1800
10	Mast tilt range		F/R	deg	6/12	6/12	6/12	6/12
11	Fork overhang (Wheel center to fork face)			mm	730	730	730	730
12	Overall dimensions	Length to face of fork		mm	4235	4235	4235	4235
13		Overall width		mm	2165	2165	2165	2165
14		Mast lowered height		mm	2850	2850	2850	2850
15		Mast extended height		mm	4510	4510	4510	4510
16		Overhead guard height		mm	2490	2490	2490	2490
