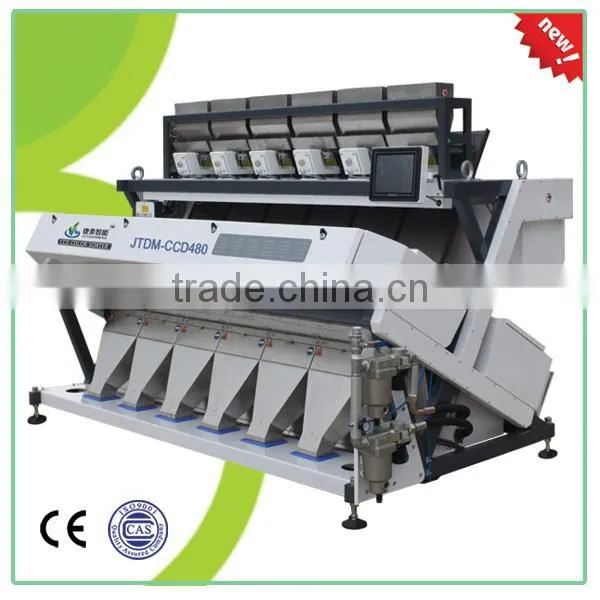

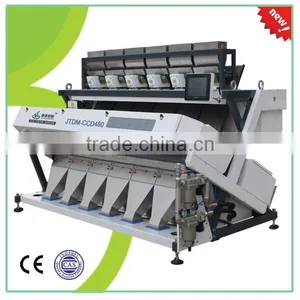

High Market Share 480 Channels Parboiled Rice Color Sorter With Sorting Accuracy up to 99.99%

High Market Share 480 Channels Parboiled Rice Color Sorter With Sorting Accuracy up to 99.99% photo-1
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jietaizhineng
Model Number:
JTDM-CCD480
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Jietaizhineng
Model Number JTDM-CCD480
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Sesame color sorter
5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

High Market Share 480 channels Parboiled Rice Color Sorter with Sorting Accuracy up to 99.99%

High Market Share 480 channels Parboiled Rice Color Sorter with Sorting Accuracy up to 99.99%

1.High speed,reliable communication, high signal consistency, anti/disturbance ability, ensure system running stable and reliable.

2.Ultra/fast solenoid valve with two row 16 holes, more stable and frequent. Besides,you only need to replace the bad one and not the entire solenoid valve,service life of more than forty billion times.

3.High Speed linear array CCD true color sorting technology with HD lens ensure high speed, accurate sorting.

4.Advanced LED light source, reliable, durable, energy saving and environmental care.

Suitable for cereal and industrial granular sorting.



High Market Share 480 channels Parboiled Rice Color Sorter with Sorting Accuracy up to 99.99%



Model

JTDM-CCD160

JTDM-CCD240

JTDM-CCD320

JTDM-CCD400

JTDM-CCD480

Throughput(T/H)

1.5~3

3~8

4~11

6~13

7~15

Channels

160

240

320

400

480

Chutes

2

3

4

5

6

Light Source

Led Light

Led Light

Led Light

Led Light

Led Light

Pixel of Camera

2048

2048

2048

2048

2048

Color Sorting Accuracy

99.99%

99.99%

99.99%

99.99%

99.99%

Carryover rate

10:1

10:1

10:1

10:1

10:1

Power(KW)

0.8-2

1.0~2.5

1.2~3.0

1.4~3.5

1.6~4.0

Air pressure(Mpa)

0.6

0.6

0.6

0.6

0.6

Voltage(v)

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

Air consumption (L/min)

800-1300

1000-1800

1200-2500

1500-3000

1800-3600

Weight(kg)

700

900

1100

1300

1500

Diamension(mm)L*W*H

1674* 1520*1800

1674* 1520*1800

1983*1520*1800

2319*1520*1800

2655*1520*1800

Package

wooden case

wooden case

wooden case

wooden case

wooden case

 Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
