Specifications
Rice color sorter5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

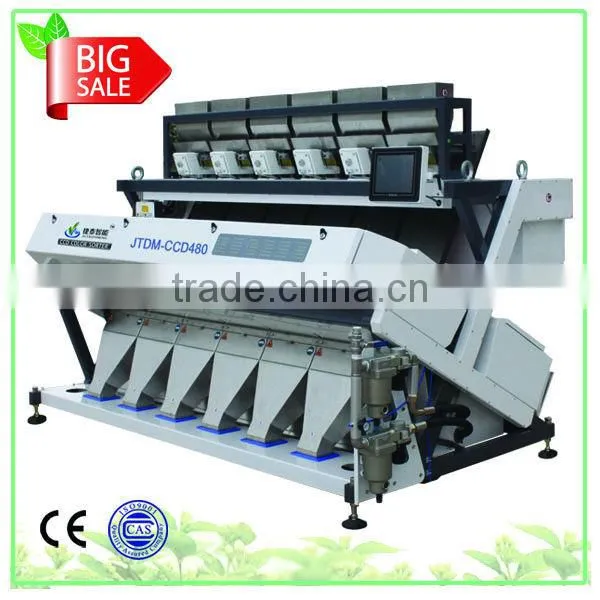

Double Camera Color Sorting Machine With CCD Sensor Led Light
1.The Color Sorter uses 2048 high-performance CCD image sensor with resolution up to 0.04mm²,Sorting accuracy is invincible.
2.The high speed FPGA Digital image processing technology provides the sorter with fast detection and high identification rate.
3.The main control system adopts ARM7 high-end embedded processor.it effectively enhances processor speed and color selection precision.
4.The Grain Color Sorter adopts high quality special industrial lens to ensure the each size has a perfect image on the image sensor.
Model |
JTDM-CCD160 |
JTDM-CCD240 |
JTDM-CCD320 |
JTDM-CCD400 |
JTDM-CCD480 |
Throughput(T/H) |
1.5~3 |
3~8 |
4~11 |
6~13 |
7~15 |
Channels |
160 |
240 |
320 |
400 |
480 |
Chutes |
2 |
3 |
4 |
5 |
6 |
Light Source |
Led Light |
Led Light |
Led Light |
Led Light |
Led Light |
Pixel of Camera |
2048 |
2048 |
2048 |
2048 |
2048 |
Color Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
Carryover rate |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
Power(KW) |
0.8-2 |
1.0~2.5 |
1.2~3.0 |
1.4~3.5 |
1.6~4.0 |
Air pressure(Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Voltage(v) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Air consumption (L/min) |
800-1300 |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Weight(kg) |
700 |
900 |
1100 |
1300 |
1500 |
Diamension(mm)L*W*H |
1674* 1520*1800 |
1674* 1520*1800 |
1983*1520*1800 |
2319*1520*1800 |
2655*1520*1800 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
wooden case |
Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
