High Resolution 2048 Automatic CCD Color Sort Machine With Resolution Up To 0.02mm2

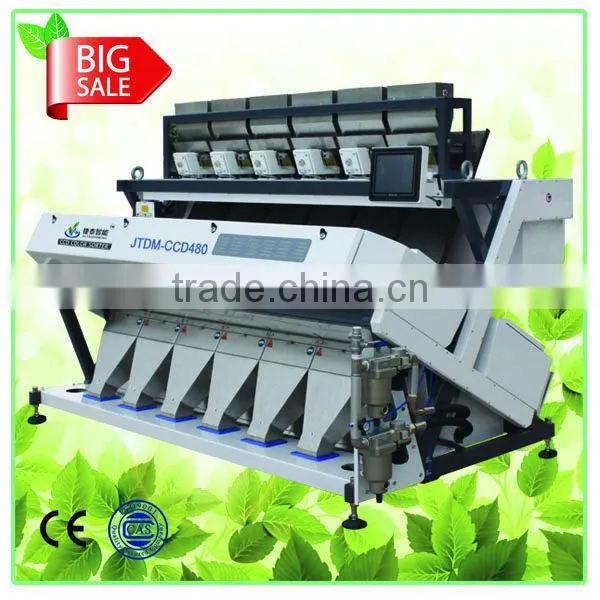

High Resolution 2048 Automatic CCD Color Sort Machine With Resolution Up To 0.02mm2 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jietaizhineng
Model Number:
JTDM-CCD480
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Jietaizhineng
Model Number JTDM-CCD480
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

rice color sorter
5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

High Resolution 2048 Automatic CCD Color Sort Machine With Resolution Up To 0.02mm2

High Resolution 2048 Automatic CCD Color Sort Machine With Resolution Up To 0.02mm2

1.Imported from Japan 2048 highperformance CCD image sensor with resolution up to 0.02mm2,high quality special industrial lens to ensure the each size has a perfect image on the image sensor.

2. The hardware system architecture of chip is ARM+FPGA,with powerful computing capacity and flexible processing capability.

3. Designated procurement of double row intensive LED lights with radiator, Higher stability, longer service life

4. The operation interface adopts the 10inch TFT color touch screen.,it is easy to adjust parameter and operate it is more humanity.

5.You operate the machine just only by the program setting of the compute,not by hands,it is easy to operate.



High Resolution 2048 Automatic CCD Color Sort Machine With Resolution Up To 0.02mm2



Model

JTDM-CCD160

JTDM-CCD240

JTDM-CCD320

JTDM-CCD400

JTDM-CCD480

Throughput(T/H)

1.5~3

3~8

4~11

6~13

7~15

Channels

160

240

320

400

480

Chutes

2

3

4

5

6

Light Source

Led Light

Led Light

Led Light

Led Light

Led Light

Pixel of Camera

2048

2048

2048

2048

2048

Color Sorting Accuracy

99.99%

99.99%

99.99%

99.99%

99.99%

Carryover rate

10:1

10:1

10:1

10:1

10:1

Power(KW)

0.8-2

1.0~2.5

1.2~3.0

1.4~3.5

1.6~4.0

Air pressure(Mpa)

0.6

0.6

0.6

0.6

0.6

Voltage(v)

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

Air consumption (L/min)

800-1300

1000-1800

1200-2500

1500-3000

1800-3600

Weight(kg)

700

900

1100

1300

1500

Diamension(mm)L*W*H

1674* 1520*1800

1674* 1520*1800

1983*1520*1800

2319*1520*1800

2655*1520*1800

Package

wooden case

wooden case

wooden case

wooden case

wooden case

 Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
