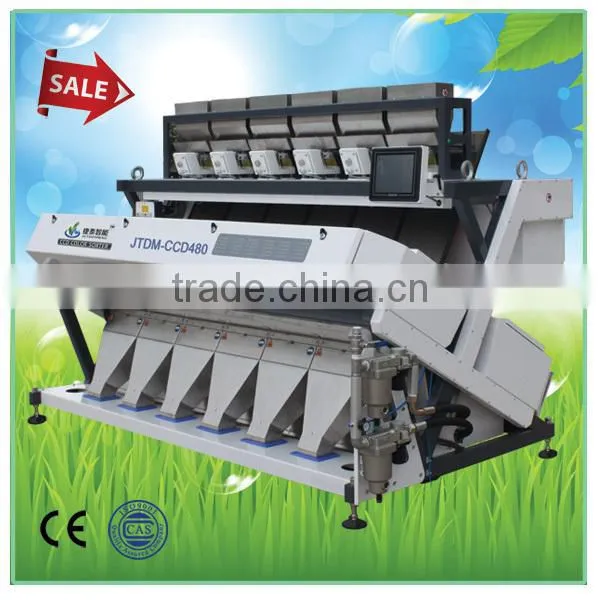

Easy Operation High-frequency Rice Color Sorter Machine With Advanced LED Light Source, Bad Rice Sorting

Easy Operation High-frequency Rice Color Sorter Machine With Advanced LED Light Source, Bad Rice Sorting photo-1
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jietaizhineng
Model Number:
JTDM-CCD480
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Jietaizhineng
Model Number JTDM-CCD480
Type Grain Processing Equipment
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Rice color sorter
5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

Easy Operation High-frequency Rice Color Sorter Machine with Advanced LED Light Source, Bad Rice Sorting

Easy Operation Rice Color Sorter Machine with Advanced LED Light Source, Bad Rice Sorting

1.All machines voltage rating are 220V.

2.All machine performance date listed is obtain when running the machine at 5-20kg/h/channel using raw material with 2% contaminant.

3.Minimize production cost with less reject.

4.Advanced imported CCD camera and lens.

5.Improved ejector with less air consumption.

6.10-inch TFT color touch screen,easy to adjust parameter and operate more humanity.

7.ARM+FPGA hardware system architecture of chip, more powerful computing capacity and flexible processing capability.



Easy Operation High-frequency Rice Color Sorter Machine with Advanced LED Light Source, Bad Rice Sorting



Model

JTDM-CCD160

JTDM-CCD240

JTDM-CCD320

JTDM-CCD400

JTDM-CCD480

Throughput(T/H)

1.5~3

3~8

4~11

6~13

7~15

Channels

160

240

320

400

480

Chutes

2

3

4

5

6

Light Source

Led Light

Led Light

Led Light

Led Light

Led Light

Pixel of Camera

2048

2048

2048

2048

2048

Color Sorting Accuracy

99.99%

99.99%

99.99%

99.99%

99.99%

Carryover rate

10:1

10:1

10:1

10:1

10:1

Power(KW)

0.8-2

1.0~2.5

1.2~3.0

1.4~3.5

1.6~4.0

Air pressure(Mpa)

0.6

0.6

0.6

0.6

0.6

Voltage(v)

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

220V/50HZ

Air consumption (L/min)

800-1300

1000-1800

1200-2500

1500-3000

1800-3600

Weight(kg)

700

900

1100

1300

1500

Diamension(mm)L*W*H

1674* 1520*1800

1674* 1520*1800

1983*1520*1800

2319*1520*1800

2655*1520*1800

Package

wooden case

wooden case

wooden case

wooden case

wooden case

 Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
