Specifications
Color sorter5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI
Multi Function / Model Customize Color Sorters With Advanced Technology For Kinds Of Materials
1.We can customize different machine base on the demand of the customer and we can also suggest the machine model base on the sorting materials.
2.We have established a dedicated R&D center and a R&D team composed of experienced engineers and headed by leading experts in China who have been keeping up with leading edge technologies in color sorting machine.
3.We have established indepth technology cooperation with foreign companies especially a well known ducer of color sorter.In particular,the cooperation has brought significant achievements in the research of CCD color sorting technologies.
4.We are offering a complete range of sophisticated color sorters.and on the request of customers for sorting out specific objects, customization is available and accordingly a complete set of solutions can be offered. We are looking forward to establishing cooperation with customers for mutual benefits and common development.

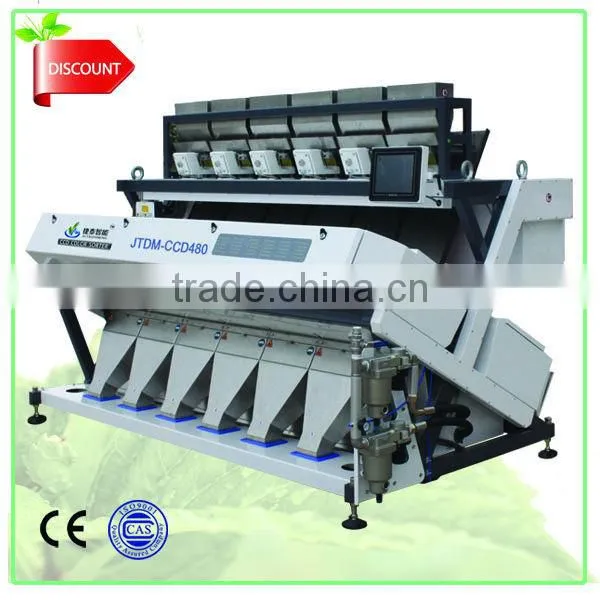

Model | JTDM-CCD160 | JTDM-CCD240 | JTDM-CCD320 | JTDM-CCD400 | JTDM-CCD480 |
Throughput(T/H) | 1.5~3 | 3~8 | 4~11 | 6~13 | 7~15 |
Channels | 160 | 240 | 320 | 400 | 480 |
Chutes | 2 | 3 | 4 | 5 | 6 |
Light Source | Led Light | Led Light | Led Light | Led Light | Led Light |
Pixel of Camera | 2048 | 2048 | 2048 | 2048 | 2048 |
Color Sorting Accuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
Carryover rate | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
Power(KW) | 0.8-2 | 1.0~2.5 | 1.2~3.0 | 1.4~3.5 | 1.6~4.0 |
Air pressure(Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Voltage(v) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Air consumption (L/min) | 800-1300 | 1000-1800 | 1200-2500 | 1500-3000 | 1800-3600 |
Weight(kg) | 700 | 900 | 1100 | 1300 | 1500 |
Diamension(mm)L*W*H | 1674* 1520*1800 | 1674* 1520*1800 | 1983*1520*1800 | 2319*1520*1800 | 2655*1520*1800 |
Package | wooden case | wooden case | wooden case | wooden case | wooden case |
Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
