Ball milling machine for gold
------Welcome to Derui Machinery------
Ball milling machine classification: ball mill, energy saving ball mill, overflow type ball mill, lattice-type ball mill, intermittence ball mill or rod mill, raw materials mill, coal mill.

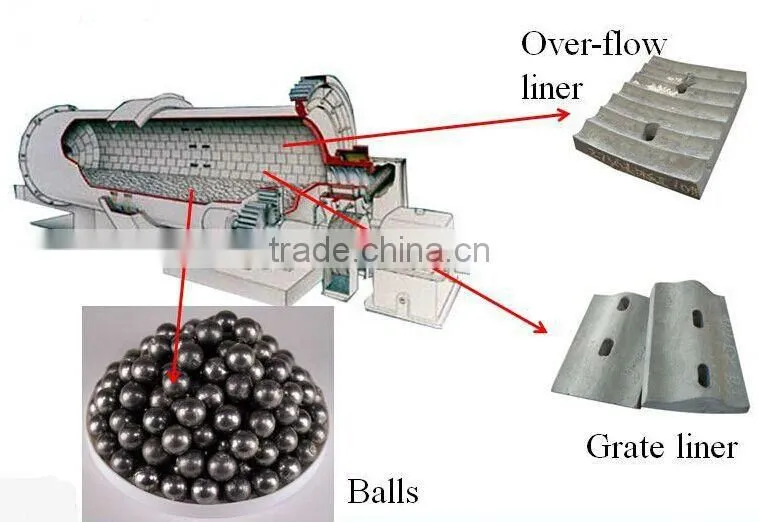

Ball milling machine is composed of the feeding part, discharging part, turning part and driving part (reducer, small transmission gear, motors, electrical control) and other components.
Ball milling machine technical parameters:
| Model(D*L) | Rotation speed(r/min) | Steel ball quantity(t) | Feeding material size(mm) | Discharging material size(mm) | Output | Motor power(kw) | Weight(t) |
| (t/h) | |||||||
| 900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 3.6 |
| 900×3000 | 41 | 1.7 | ≤15 | 0.075-0.83 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.6 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 185 | 35 |
| 1830×7000 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 26 | 22 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 38 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Customized | 800 | 137 |
How to Choose a Suitable Ball milling machine ?
Before buying and asking the price of ball mill, you should firstly determine the following points: which field you want to use with ball mill? According to your usage of ball mill, we will choose the right ball mill for you, such as dry type ball mill, wet type ball mill or intermittent ball mill. How about the fineness you need? Then select the appropriate length of ball mill.
Ball milling machine :
Price is a very important part in the ball mill equipment sale. The materials, production process and wearing parts of ball mill are directly related to the prices of the equipment, and other factors also have a certain relationship with the ball mill prices.
Ball milling machine shipping:
Derui services:
Installation and guidance:When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training:We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
Derui introduction:
Derui machinery Co., Ltd. is a China-based high-technology heavy machinery manufacturer, which engaged in R&D, production and sales of machinery. Our main products include Ball milling machine, rotary kiln, mineral processing equipment, dryer equipment, stone crusher machine, sand and stone production line.
Why choose Derui Machinery?
1.We are energy saving ball mill manufacturer, have many years of experience in ball mill industry.
2.We have professional engineer to support you and offer after sales services.
3.Welcome to visit Derui Machinery factory, you also can choose our dryer, crusher, rotary kiln, ball mill,
mineral ore processing equipment, sand and stone production line.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
