Professional coal grinding machine
Contact Informations:
Contact Person: Ms. Angela
Mobile or WhatsApp or Wechat: 0086-13669258127
Skype: kingmachinery315
Application and Features of Coal Crusher
This crusher is suitable for crushing all kind of medium hard ores in mine, metallurgy, refractory, cement, coal, glass,ceramics and power plant.Its main feature are big crushing ratio,high output(1.4 times higher than that of the same crushing plants in domestic market,)high efficiency and energy conservancy,and the easy-wearing parts use wear-resisting materials with high hardness,high toughness and complex alloy so that its service life is improved by 2-3times and the gap between the hammer and the impacting plate is adjustable so that it can satisfy the different granularities.
Working Principle of Coal Crusher
Massive ores fall on the material dumping plate inside the crushing chamber,and under the eccentric force,it throws the material onto the internal wall of the cylinder,and the materials will violently hit the impact plate installed in the internal wall,at the same time,the material hit with each other,so that the materials will be crushed or a lot of hairline fissure will be produced.Then the materials go into cone rotor chamber and spirals down in the cone space,after impacting and squeezing,the materials with fissure will be further crushed.Due to the slope between the cone rotor and lining plate,the small materials are pushed to move down to automatically realize classification and crushing from big size to small size.Inside the cone rotor chamber,the materials are impacted by the hammer.the material running with high speed will hit with impacting plate again,and the materials also will hit with each other,thus improving the crushing efficiency.
Parameter of Coal Crusher
Model |
Max.Feeding Size(mm) |
Size of outputting feed(mm) |
Capacity (t/h) |
Host Rev. (r/min) |
Power (kw) |
Dimension (mm) |
YW-800 |
100 |
<3-5,60-90% |
10-20 |
934 |
30-45 |
2100*1200*1700 |
YW-1000 |
120 |
<3-5,60-90% |
20-40 |
760 |
55 |
2600*1400*1900 |
YW-1250 |
150 |
<3-5,60-90% |
40-70 |
530 |
90 |
2800*1600*2100 |
YW-1500 |
180 |
<3-5,60-90% |
70-100 |
495 |
132 |
3100*1900*2200 |

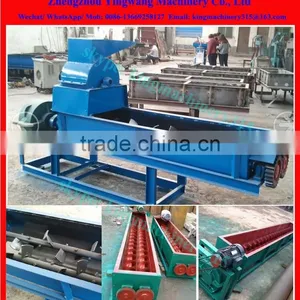

Product show of Coal Crusher:

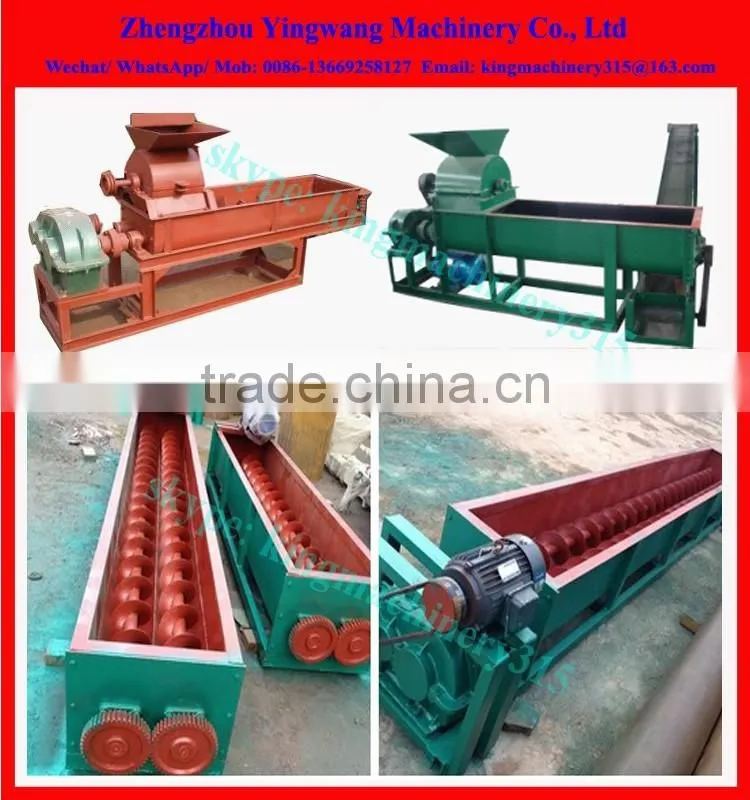

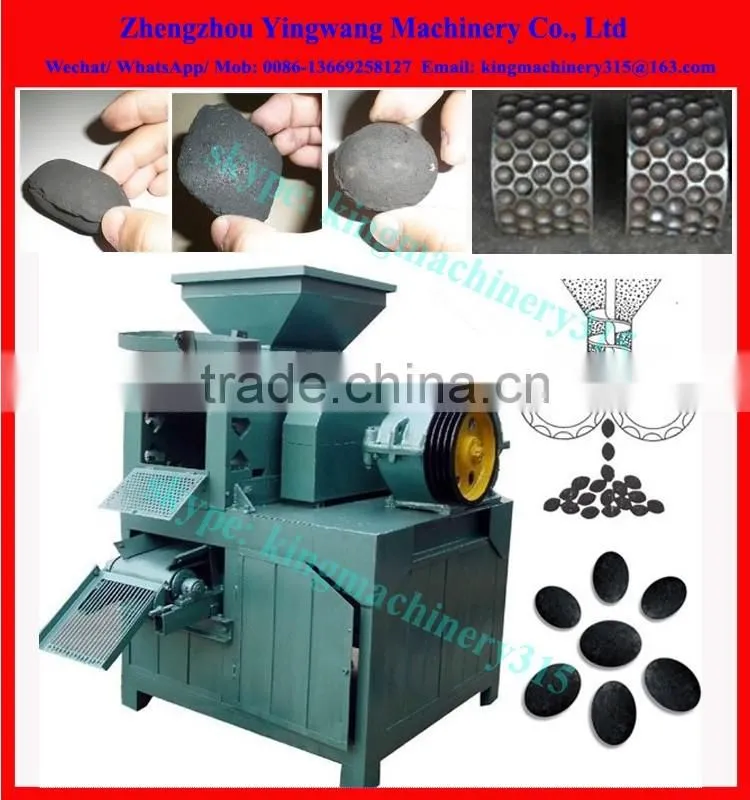

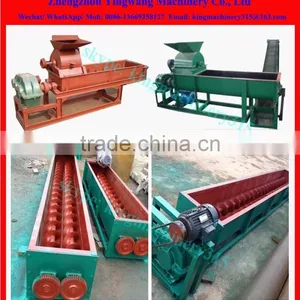

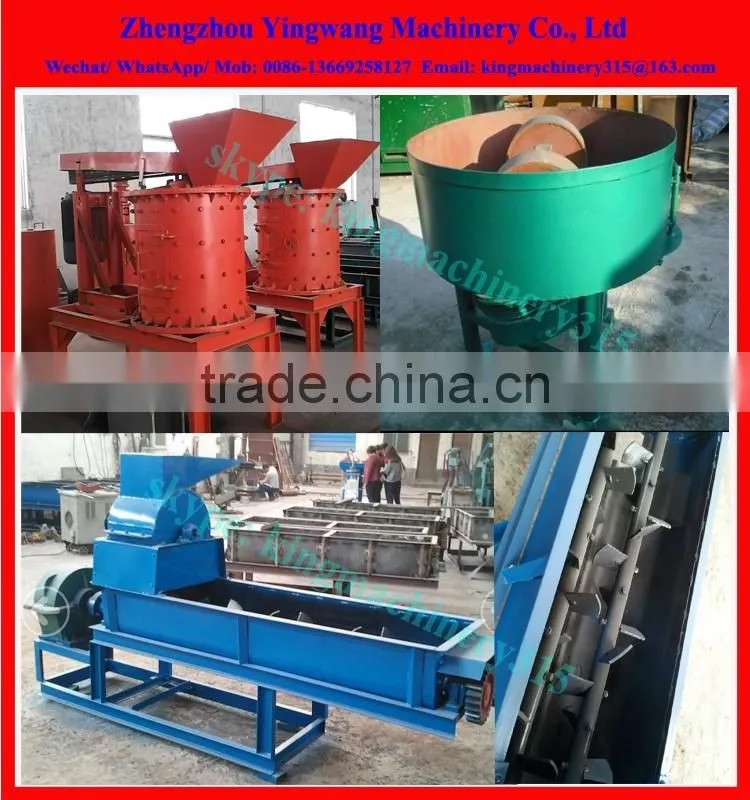

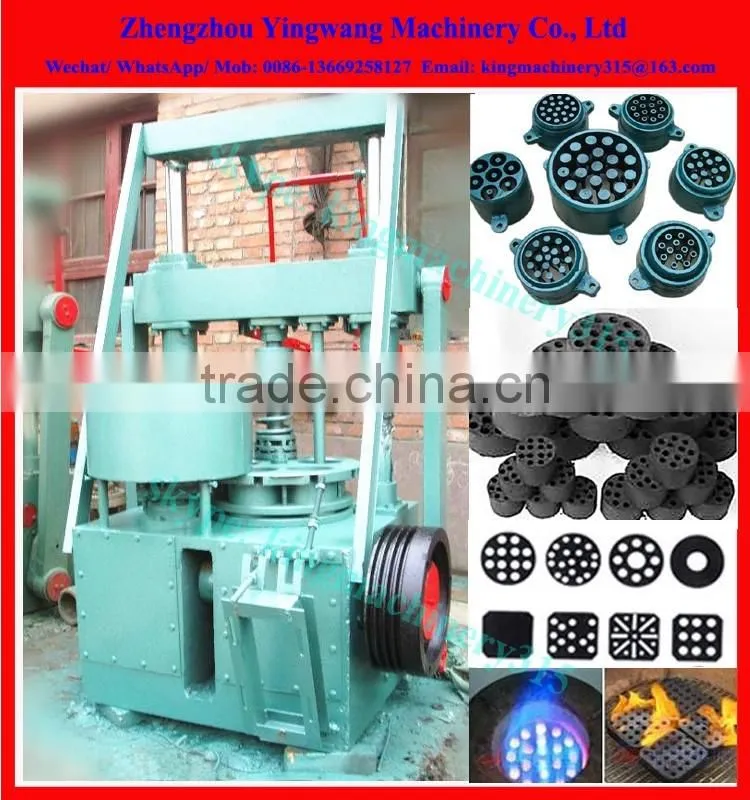

Other coal charcoal machine:
As one of the professional coal crusher machine exporters in China. We have been
supplying this machine for overseas customers for years and winning a renowned
reputation around the world. We would like to provide maximun service to meet customer's satisfaction.
If you want know more information of this machine Or you can’t make up your mind to
choose the right model,Please no hesitation to contact with me, by email / by call / by sms
/ by viber / by whatsapp / by skype / by QQ .Anyway, anywhere, anytime is okay.
We are ready now .Looking forward to your early contact ! ! !
