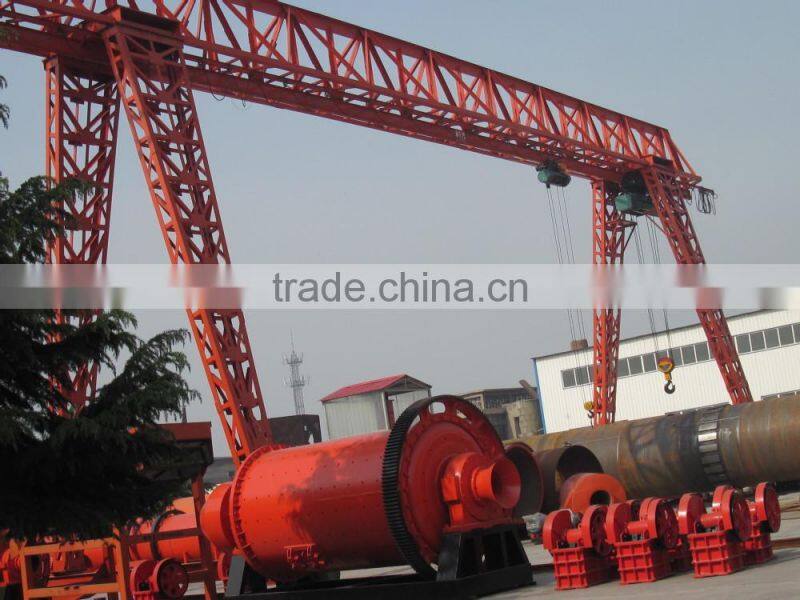

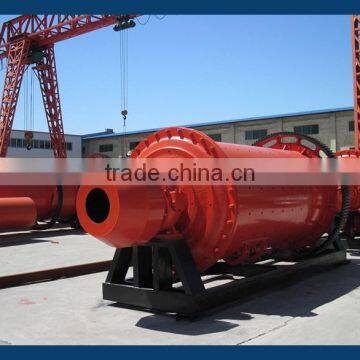

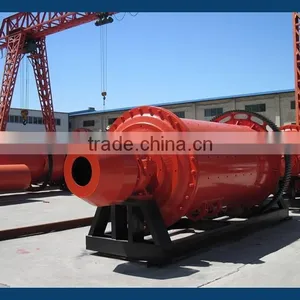

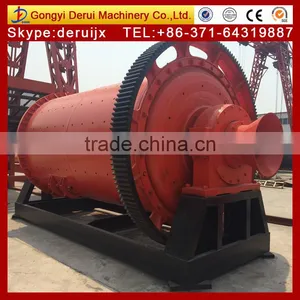

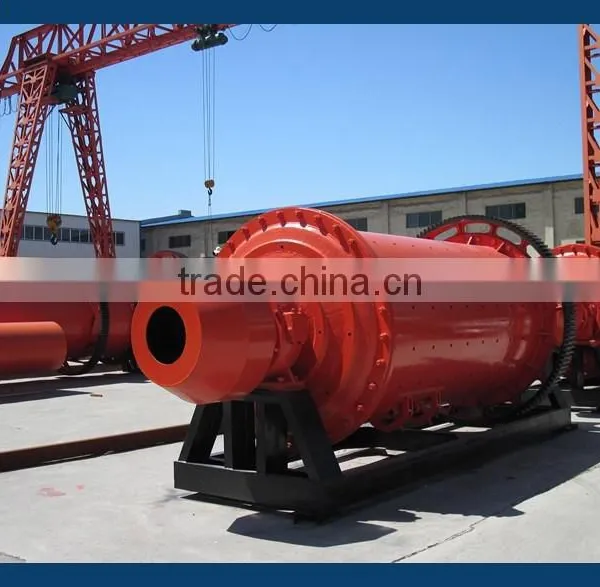

ball grinding machine, ball mill machine, milling machine

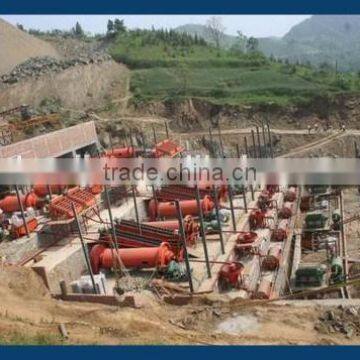

Ball grinding machine is a key equipment for regrinding, it is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. The ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
Working principle of ball grinding machine:

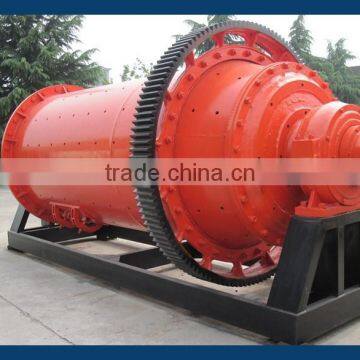

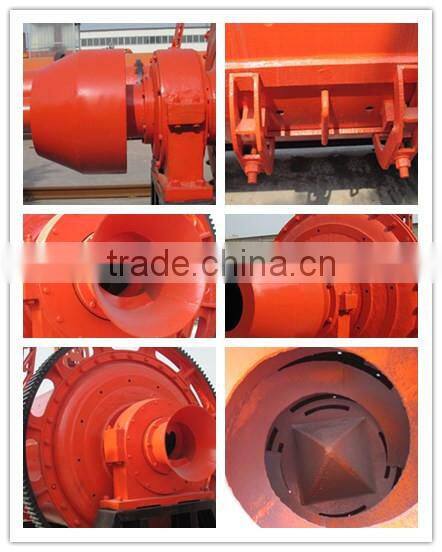

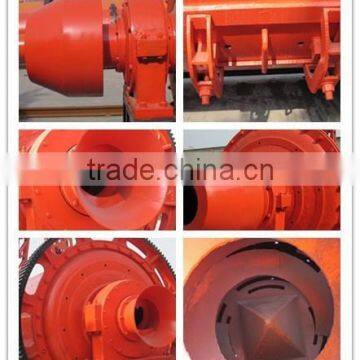

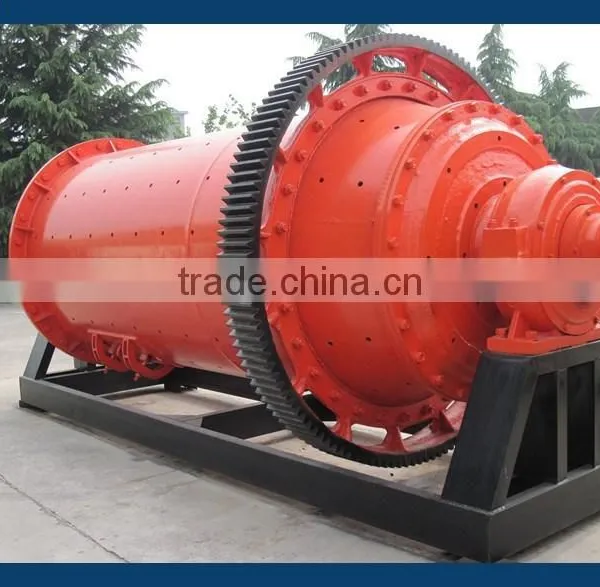

Ball grinding machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical parameter of ball grinding machine:
Model | Speed of bucket (r/min) | Weight of ball(T) | Size of feed opening(mm) | size of outputting feed (mm) | Production (t/h) | Power (kw) | Weight (T) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |

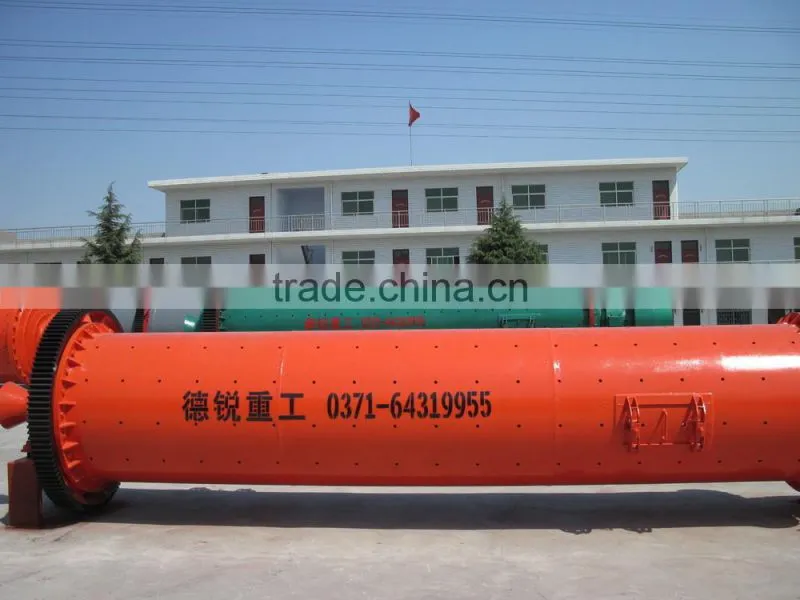

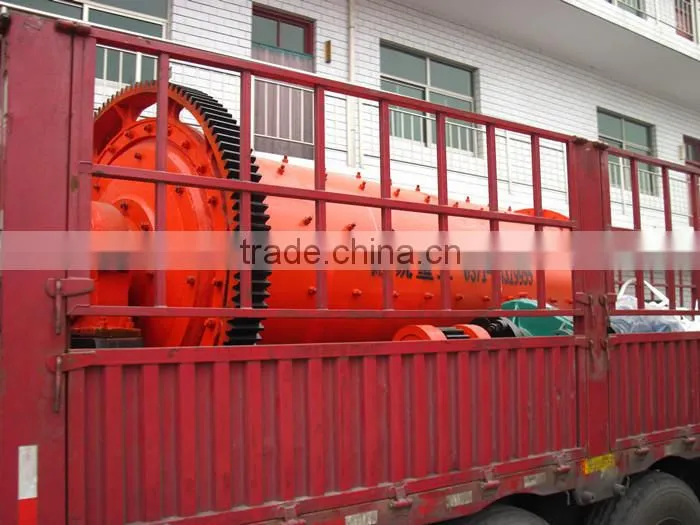

Ball grinding machine shipping:
Derui introduction:
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment:cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.
Dryer equipment:Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Beneficiation equipment series:fotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, rod mill, ball grinding machine, etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, etc.
Why choose Derui Machinery?
1. We are a large direct factory, not a middle man. We can provide most reasonable price.
2. More advanced technology and professional engineers.
3. The main raw material or parts are provided by China large & famous machinery supplier.
4. Favorable technology support. Accept customer’s consultation, make solution plan according to customer request, provide technical analysis & support from beginning of project till after-sales service.
5.We are concentrated on export business, acquainted with market abroad. Service will be professional.
In order to give you an accurate quotation about ball grinding machine, please tell us the following information:
1. What is your raw material to be grind?
Iron ore, gold ore, copper ore, or others.
2. What is the maximum feeding size of your raw material?
3. What are output sizes you want?
Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.
4. What is the capacity you want? How many tons per hour? Wet type or dry type?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
