Ball mill plant for copper ore, iron ore and gold grinding

Ball mill plant for copper ore, iron ore and gold grinding

Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:

Rotary kiln equipment: cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.

Dryer equipment: Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, coal dryer, etc.

Stone crusher series: jaw crusher, impact crusher, cone crusher, hammer crusher, roller crusher etc.

Beneficiation equipment series : gold flotation machine, spiral classifier, rotary dryer, etc.

Grinding mill series: ball mill, raymond mill, rod ball mill, overflow ball mill, etc.

Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.

Accessory equipment: belt conveyor, bucket elevator, screw conveyor, coal powder spraying machine, etc.

Ball mill is mainly used for grinding copper ore, iron ore, gold, limestone, bauxite, etc.

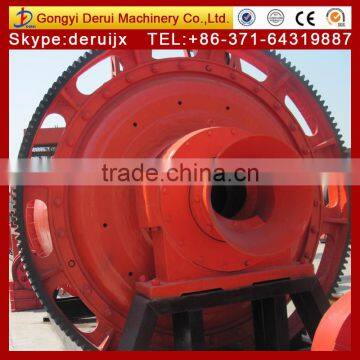

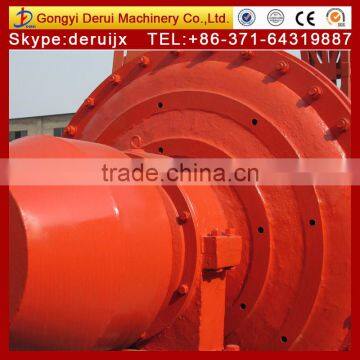

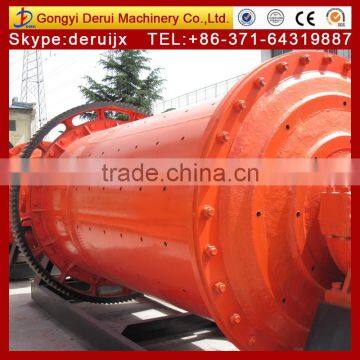

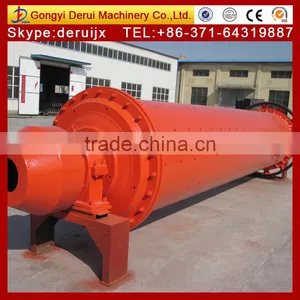

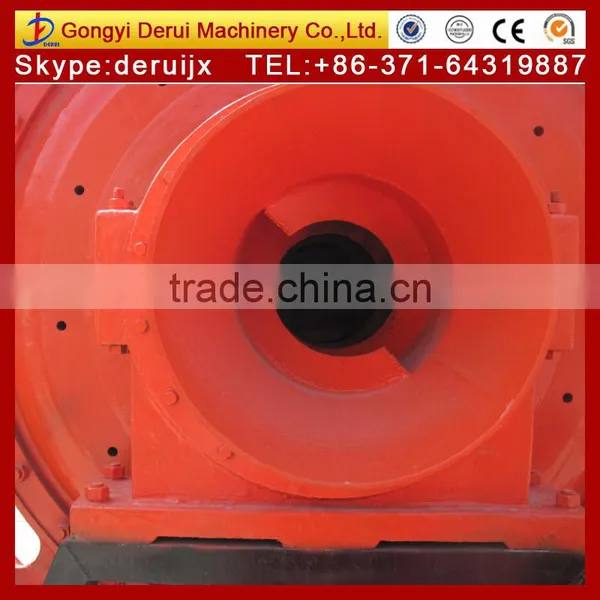

ball mill structure:

The structure of overflow type ball mill is basically the same with the grate one, only with no material discharging grate in the cylinder outlet end. Besides, it has reverse screw blade on the surface of the hollow shaft inner liner cover. It can return the small ball in the slurry and overflowed rough ore back to the mill. As the grinded material get flowed freely from the hollow shaft neck, the slurry level must be higher than the lowest mother line level of the discharging shaft neck. Therefore, it is called high surface slurry mill sometimes. It is of simple structure and easy to maintain. And as it has fine product, it is usually used in grinding the fine ore, that is the size less than 0.2mm or the second segment in the two continuous stages.

Intallation Notes of ball Mill:

1. Before installation, checking whether each spare part has any damage in transportation process and whether spare parts are complete according to packing list.

2. Before leaving the plant,  ball mill manufacturers have conducted several hours of trial operation, so, the running of rod milling machine should be normal. However, even so, you should also carry out a comprehensive check after the rod mill is installed on site. You should especially check whether the lubricating oil pipe is connected tightly. Before trial operation, you should refuel.

3. Check whether connection between each part is firm and reliable and whether there are foreign bodies on the impeller. If there are foreign bodies on the impeller, timely rule out in time. Check whether motor wiring is correct and voltage is normal.

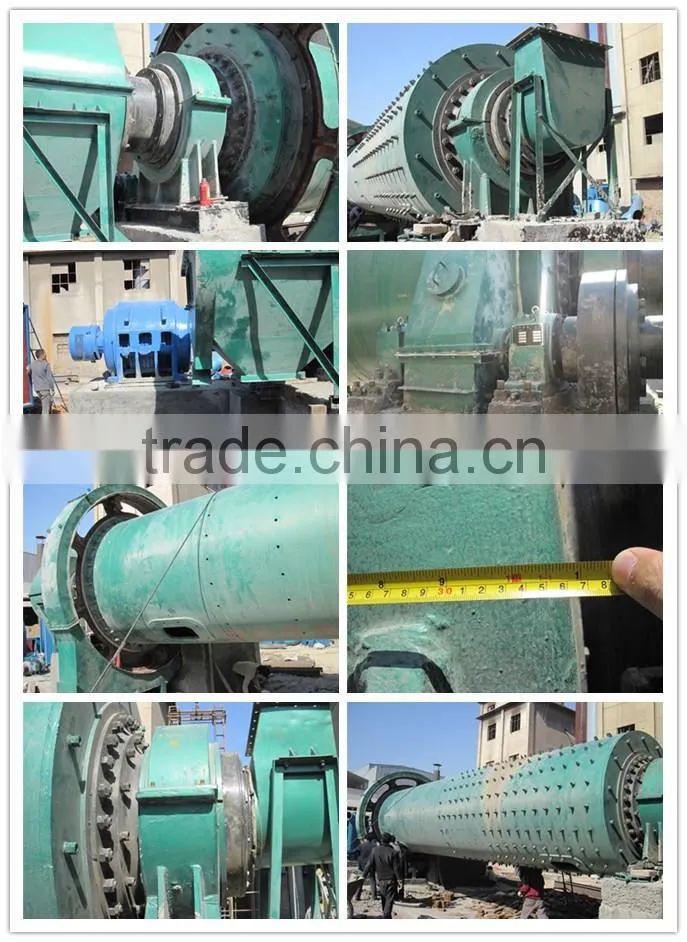

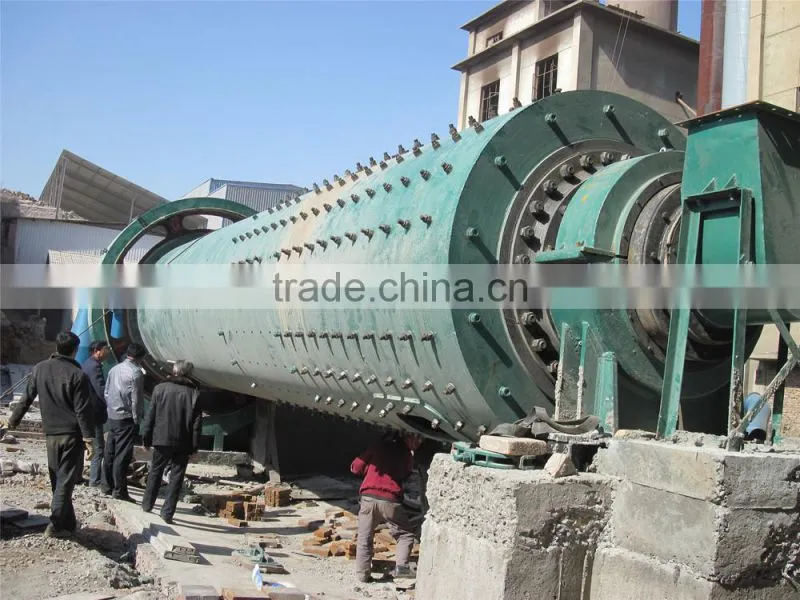

Working site of ball mill:

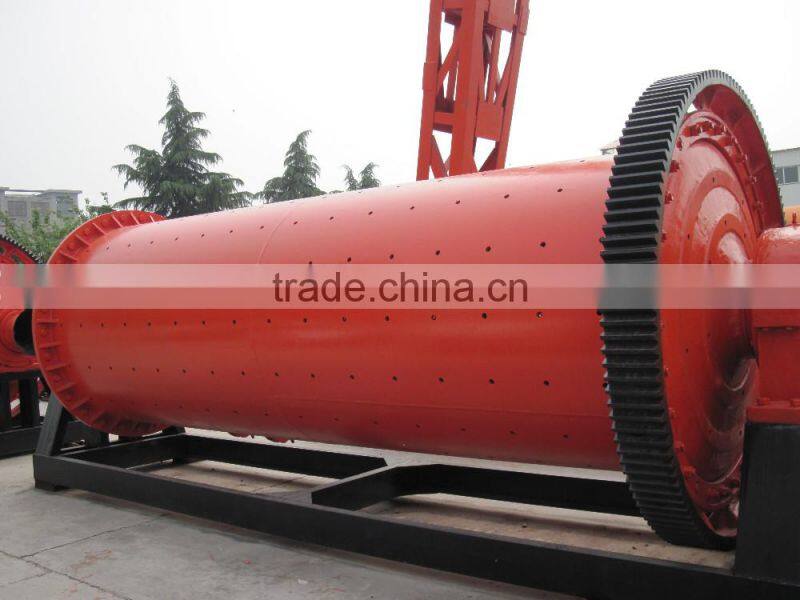

 ball mill shipping:

In order to give you an accurate quotation, please tell us the following information:

1. What is your raw material to be grind?

 Iron ore, gold ore, copper ore, or others.

2. What is the maximum feeding size of your raw material?

3. What are output sizes you want?

Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.

4. What is the capacity you want? How many tons per hour? Wet type or dry type?

How to visit us ?

If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)

Our air port name is : Zhengzhou Xinzheng International air port.

Train station name is: Zhengzhou (Zhengzhou north) train station
