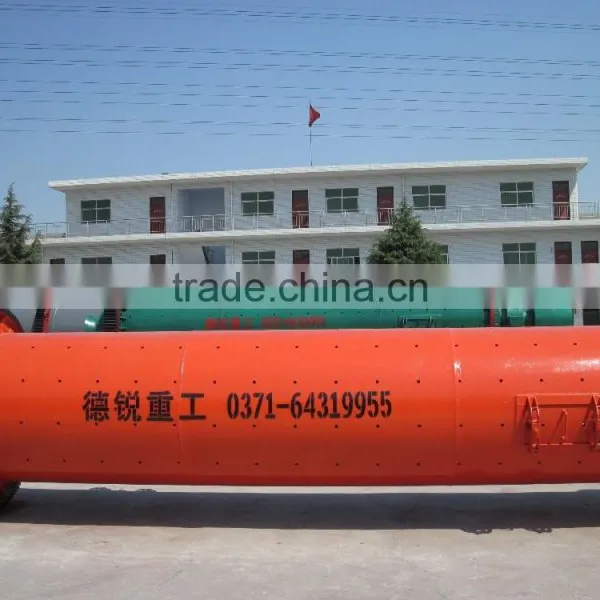

Ball mill grinder machine, mine mill machine, ball mill grinding machine
Ball mill grinder machine (ball grinding mill) is an important equipment used for recrushing, mainly used in cement, silicate products, new building materials, refractory, fertilizer, black and non-ferrous metal processing and production industries and glass-ceramic.
Ball mill grinder machine classification:
According to grinding media: ball mill, rod mill
According to discharging mode: wet grid ball mill, dry grid ball mill &overflow ball mill.
According to driving mode: side & central driving. Side driving is more popular now.

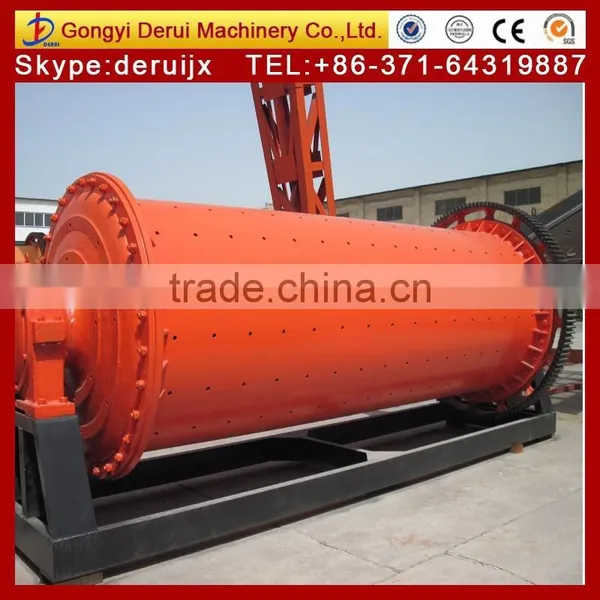

Structure: Ball mill is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control).
Ball mill grinder machine features:
1. Energy saving ball mill grinder machine is suitable for secondary crushing, fine crushing and super fine crushing.
2. Ball mill grinder machine is mainly used to mixing and grinding materials.
3. Ball mill grinder machine is with new structure, simple operation, safety and reliability and small investment.
Ball mill grinder machine working principles:
The electro motor drives the cylinder to rotate through the reducer, and the broken ore and the steel balls inside the cylinder are brought by the lining board to a certain height under the frictional force and eccentric force produced by the rotation of the cylinder. Due to the action of gravity, the ores will drop and are gradually crushed under the impacting and grinding effect and the crushed ores will be discharged out of the cylinder through the discharging part. The discharged ores are classified by the spiral classifier, and the coarse sand will go back to ball mill from the joint feeding machine to be ground again. The feeding machine continuously and evenly feeds materials, and the ores will continuously and evenly go into the ball mill through the joint feeding machine, and the ground materials will be continuously discharged from ball mill. For this reason, ball mill is a powder grinding machine that can continuously work for 24 hours every day.
Ball mill grinder machine technical parameters:
| Model(D*L) | Rotation speed(r/min) | Steel ball quantity(t) | Feeding material size(mm) | Discharging material size(mm) | Output | Motor power(kw) | Weight(t) |
| (t/h) | |||||||
| 900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 3.6 |
| 900×3000 | 41 | 1.7 | ≤15 | 0.075-0.83 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.6 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 185 | 35 |
| 1830×7000 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 26 | 22 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 38 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Customized | 800 | 137 |
Ball mill grinder machine application:
Energy-saving ball mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

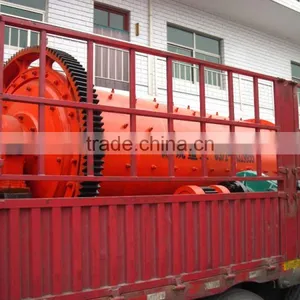

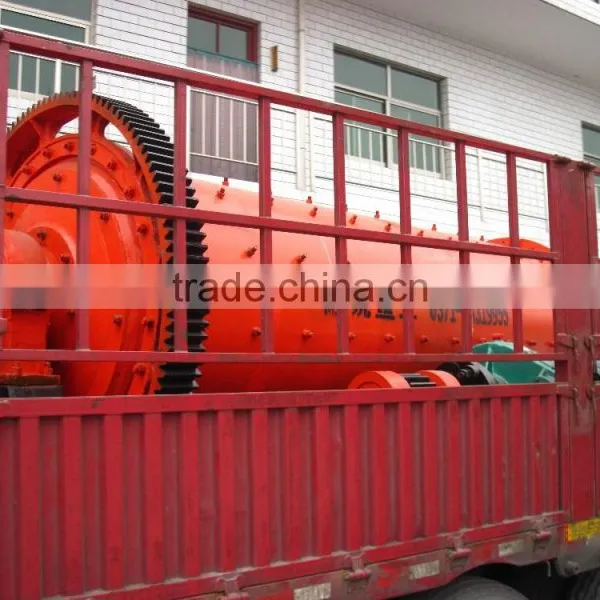

Ball mill grinder machine shipping:
Derui services:
Installation and guidance:When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training:We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
Derui introduction:
Derui machinery Co., Ltd. is a China-based high-technology heavy machinery manufacturer, which engaged in R&D, production and sales of machinery. Our main products include ball mill machine, mineral processing equipment, dryer equipment, stone crusher machine, sand and stone production line.
In order to give you an accurate quotation about ball mill grinder machine, please tell us the following information:
1. What is your raw material to be grind?
Iron ore, gold ore, copper ore, or others.
2. What is the maximum feeding size of your raw material?
3. What are output sizes you want?
Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.
4. What is the capacity you want? How many tons per hour? Wet type or dry type?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
