Wet Pan Mill for Sudan gold mining plant, wet pan grinding mill for sale

Name: Wet Pan Mill for Sudan gold mining plant, wet pan grinding mill for sale
Brand: Huahong
Price: USD $3,000 - 15,000 / Set

FOB Price

USD $3,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port Qingdao Shanghai Tianjin port
Payment Terms:T/T L/C Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, wet pan mill	Motor Type:	AC Motor
Power(W):	11kw	Capacity(t/h):	1-1.5t/h	Place of Origin:	Henan, China
Brand Name:	Huahong	Model Number:	1200	Dimension(LWH):	230023002000mm
Weight:	5.5t	Certification:	ISO, CE, CIQ	Warranty:	One Year
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

wet pan mill packed in standard container 20/40ft in nude packing or packed as your request

Product Description

Brief introduction for wet pan mill

Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. Based on the different structure it is divided into double roller grinding and three roller grinding. It grinds ores by wheel driving force. firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise.The wheels can revolve around the vertical shaft of the pan mill, at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are pressed, rubbed and grinded repeatedly.

New design wet pan mill for Sudan market. Motor and speed reducer is under of the stand support.

Another is standard design wet pan mill. Only gear-box is under of the frame.

Parameters of wet pan mill
Model	Specification	input size (cm)	Rotation speed(r/min)	Power(kw)	Weight (t)	Capacity (t/h)
1600	1600400200*500±20	30	20-22	30	14.5	6-10
1500	1500350200*460±20	30	20-22	22	13.5	5-8
1400	1400250150*350±20	30	16-18	18.5	8.5	3-5
1300	1300250150*350±20	30	16-18	15	7.5	2-4
1200	120020080*250±20	30	17-19	11	5.5	1.5-2
1100	110020080*250±20	30	17-19	7.5	5.0	1-1.5
1000	100020080*250±20	30	13-15	5.5	4.5	1
900	90020080	30	10-15	5.5	3.0	0.5

Advantages of wet pan mill

1) The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.

2) The ores and water are evenly mixed, which makes the pulp density and other indexes stable.

3) After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.

4) The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.

Working Principles of wet pan mill

1) When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2) Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3) At last, use a high-density red cloth to wrap mercury up.
4) Then squeeze it, the mercury will be pressed out and pure gold stayed.
5) As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.

Our Casting iron working site for grind roller and grind base

Detailed Images

Basin(Basin Diameter can be customized)

Stand support(Two types for your choice)

Grind roller and grind base

Speed reducer

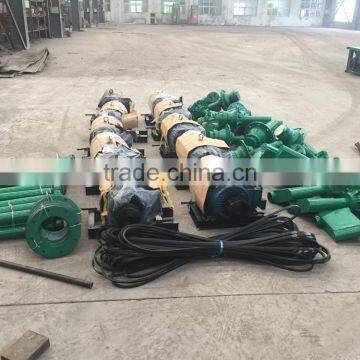

Wet pan mill components

Our Service

1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.

4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

Packing & Delivery

All our wet pan mills before leaving our factory, we will test each machine. If it work well, we will load and export. If it can not working smoothly, it won't be loaded. And our engineer will check and where it is worng, We promise all export machine is 100% good.

Packing:

The cargos are in nude packing. Some small components will be packed in carton. If the basin diameter is larger than container width, tha basin will be cutted, and you need to weld in your place.

Shipping

If the size is suitable for container ship, usually by container;
If the size is too big, usually by bulk ship or by container after truncation;
We have developed long-term and excellent relationship with many ocean freight partners, such asAPL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.

Our Company

Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers. please click www.zzhuahong.en.china.cn to learn more.

Our customer from Sudan and Egypt is visiting our factory and testing wet pan mill.

Certifications

We often export wet pan mill to Egypt, Sudan, Zimbabwe. We can supply Embssy certificates, Invoice certificate, CIQ/PSI and CO for you.
