Copper ore grinding mill manufacturer in China
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T Credit Card
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 75kw | Capacity(t/h): | 2-7t/h | Place of Origin: | Henan, China |
Brand Name: | Derui | Model Number: | 1500*3000m | Dimension(L*W*H): | 1.5*3m(D*L) |
Weight: | 17t | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Copper ore grinding mill manufacturer in China
If you need copper ore production line for copper concentrate, first you need offer your copper ore chemical analsis, we offer you full set equipment according to your raw materials.

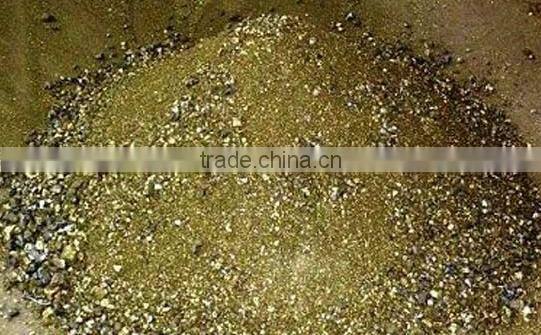

Name: copper ore
Hardness: 3-4
Category: native copper, chalcopyrite, bornite, chalcocite, azurite and covellite
Application: raw material for metallurgical industry

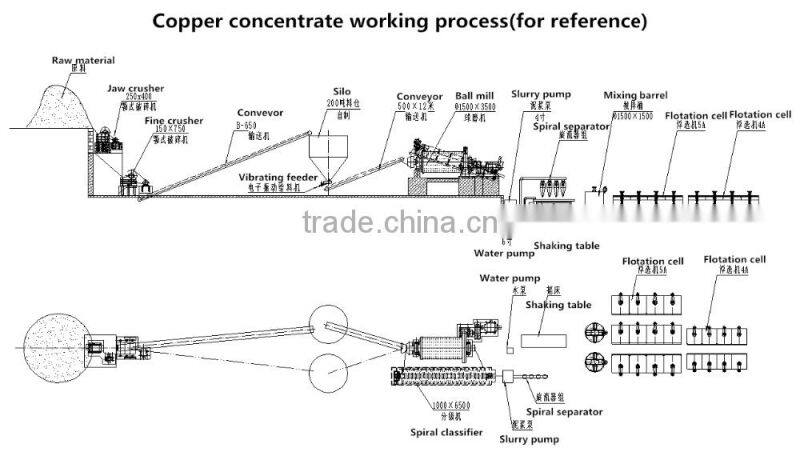

Copper ore grinding mill production line:
Stock bin------vibrating feeder------Jaw crusher------Fine crusher------Vibrating screen------powder ore bin------vibrating screen------belt conveyor------Copper ore grinding mill------spiral classifier------mixing tank------flotation machine------thickness------vacuum filter
1. Crushing machine: Triple or fourfold crushing are adopt for the copper ore crushing in the medium and large mining plant. Adhering to the modern dressing concept of more broken and less grinding.

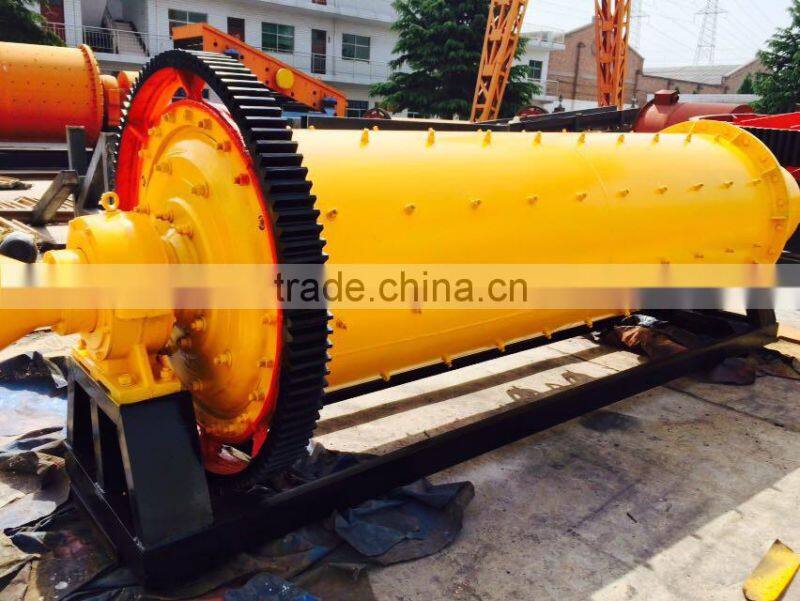

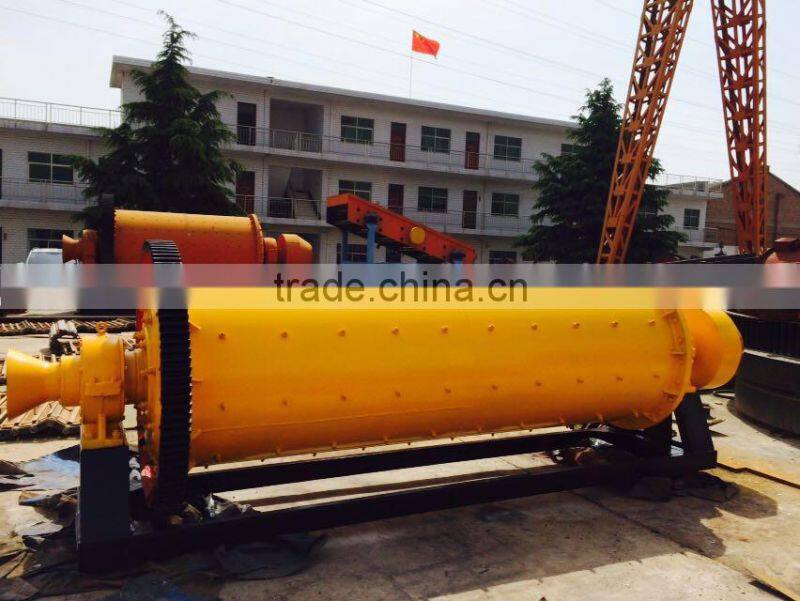

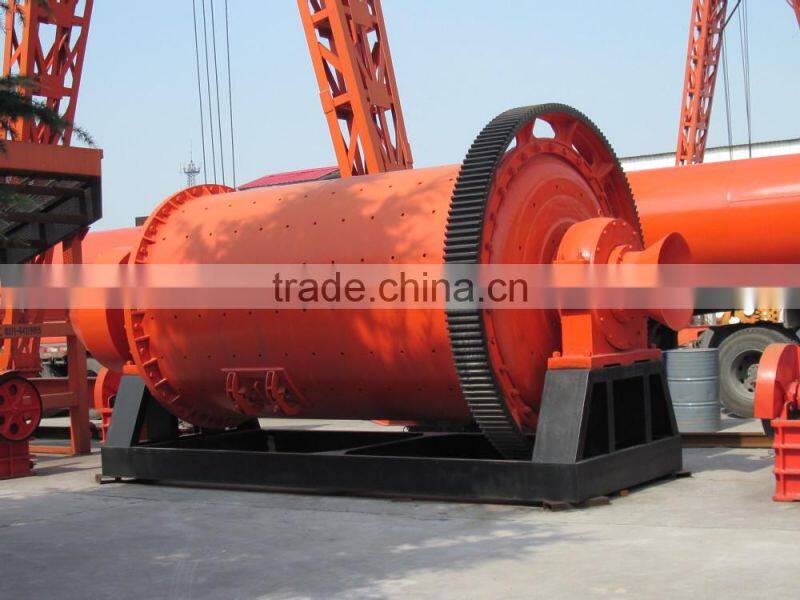

2. Copper ore grinding mill:Ball mills are the first choice for minerals grinding
3. Classifying machine: Classifying equipments are used to inspect copper ore process and control the grain size. The common equipments of classifying are spiral classifier, high frequency screen, hydrocyclone, etc.
4. Flotation machine: Flotation equipment is a main equipment for copper ore beneficiation.
Main equipment needed:

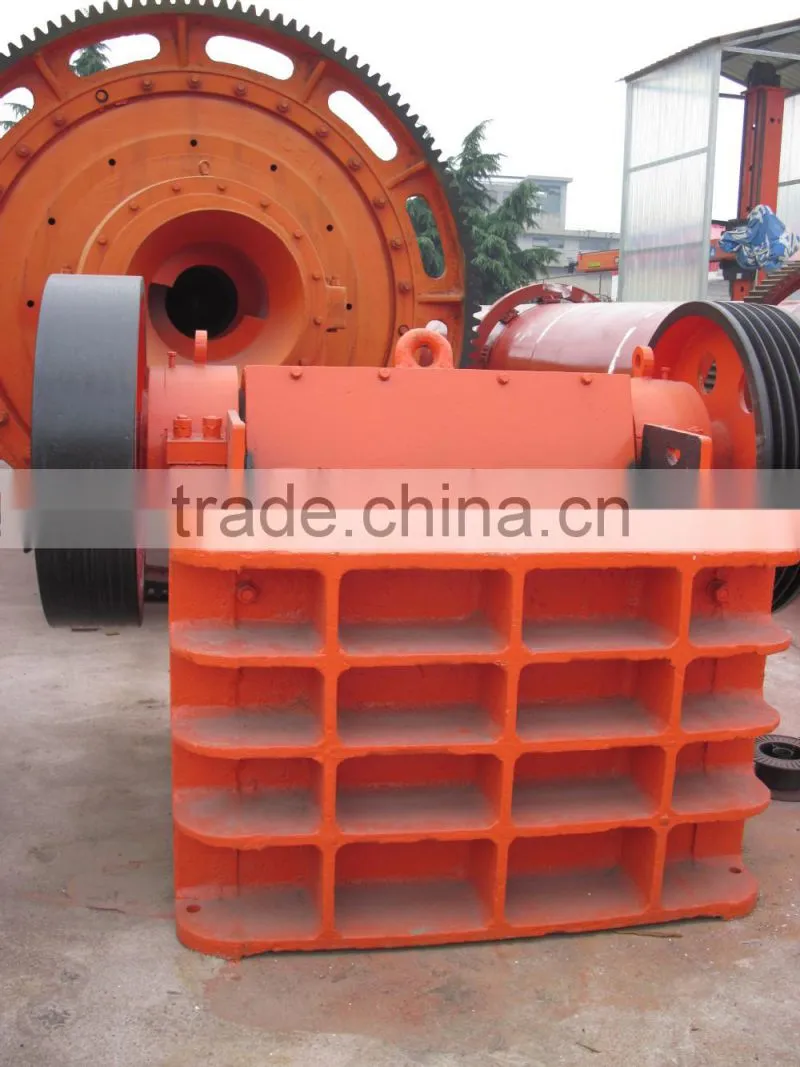

Jaw crusher and fine crusher for crushing raw ore into needed size.

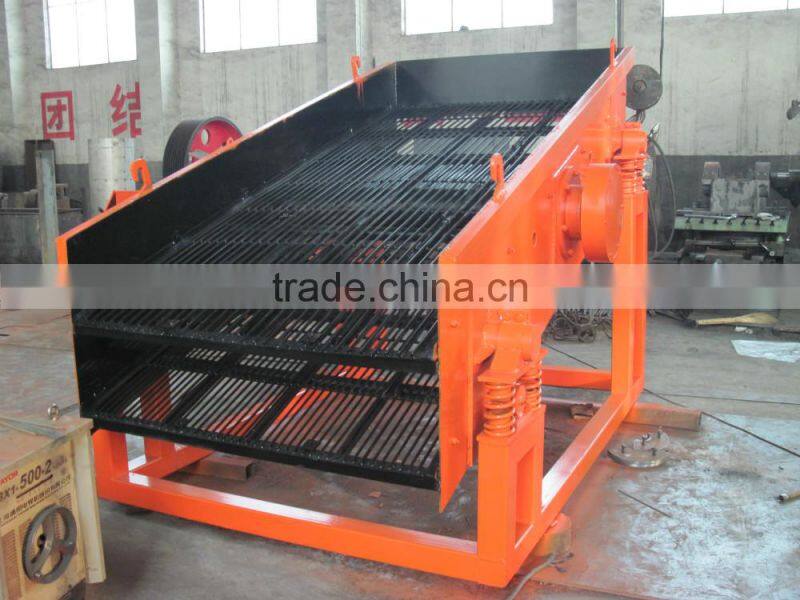

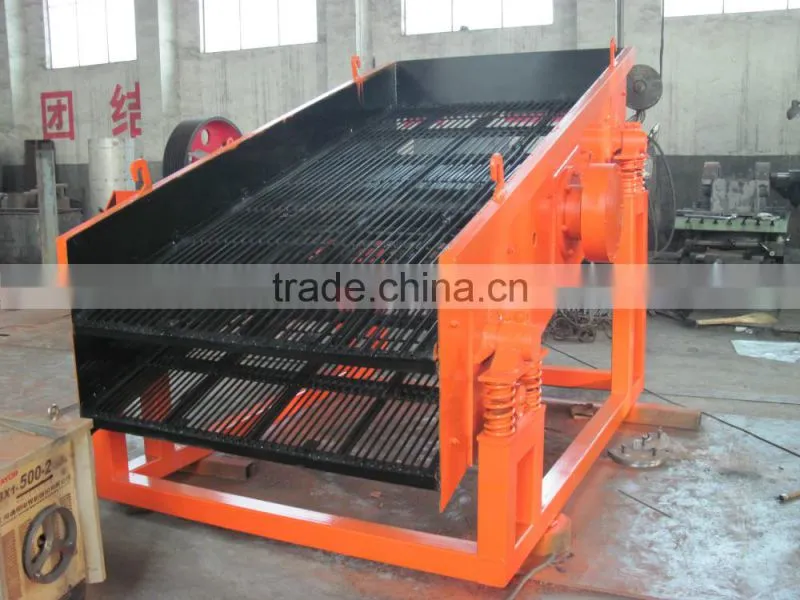

Vibrating screen for screening crushed ore
Copper ore grinding mill is a type of grinder used to grind materials into extremely fine powder for use in mineral dressing processes, paints,
pyrotechnics, ceramics,etc.
Technical parameter of Copper ore grinding mill:
Model(D*L) | Rotation speed(r/min) | Steel ball quantity(t) | Feeding material size(mm) | Discharging material size(mm) | Output | Motor power(kw) | Weight(t) |
(t/h) | |||||||
900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 3.6 |
900×3000 | 41 | 1.7 | ≤15 | 0.075-0.83 | 1.1-3.5 | 22 | 4.5 |
1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.6 |
1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 185 | 35 |
1830×7000 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 26 | 22 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 38 |
2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Customized | 800 | 137 |

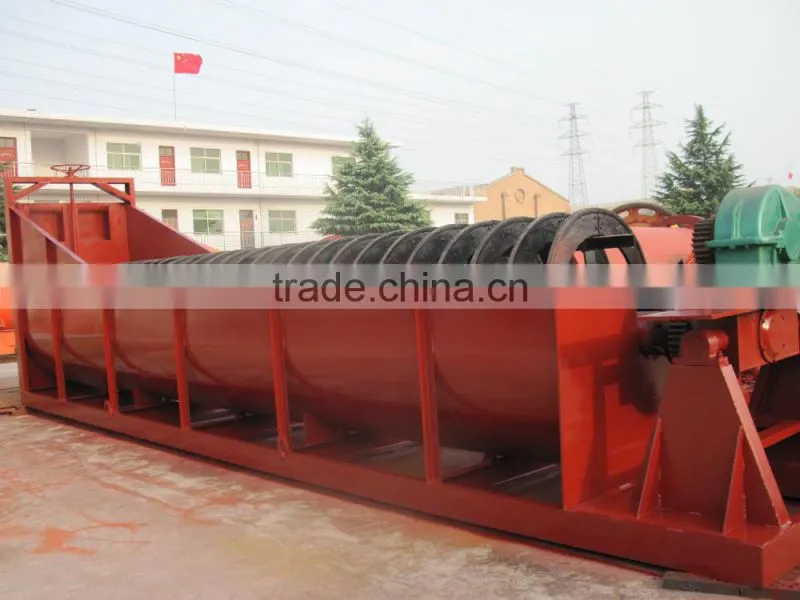

Spiral classifier is a mechanical grading equipment which works based on the different proportion of solid particles with different sedimentation rate in the liquid.

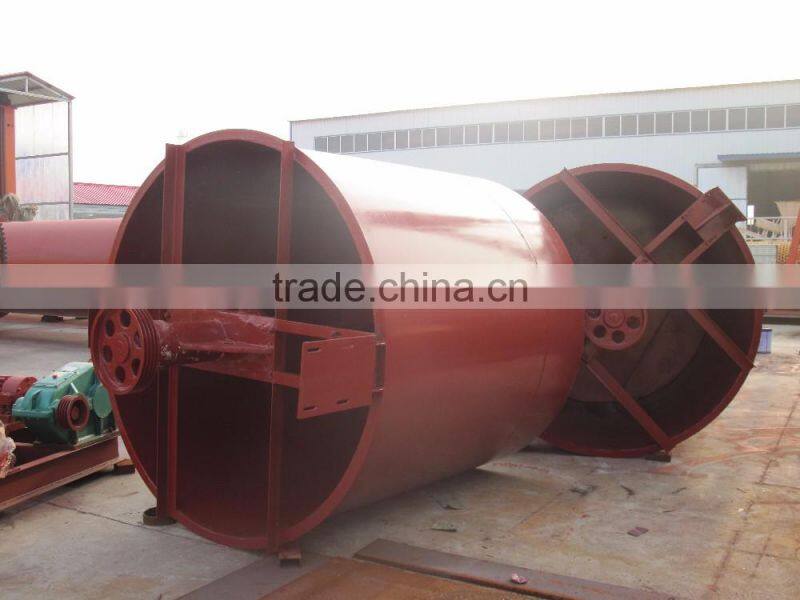

Mixer is suitable for mixing all kinds of metal before the flotation separation
Flotation machine is a machine that is used for completing the flotation separation process
Derui introduction:
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment:cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.
Dryer equipment:Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Beneficiation equipment series:fotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: Copper ore grinding mill, raymond mill, rod mill, overflow ball mill,etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, etc.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
Contact Us
- Gongyi Derui Machinery Co., Ltd.
- Contact nameLisa liu
- Phone0086-371-64319887
- AddressMiddle of Heluo Road, Gongyi, Henan, China(Mainland) Zhengzhou,Henan
