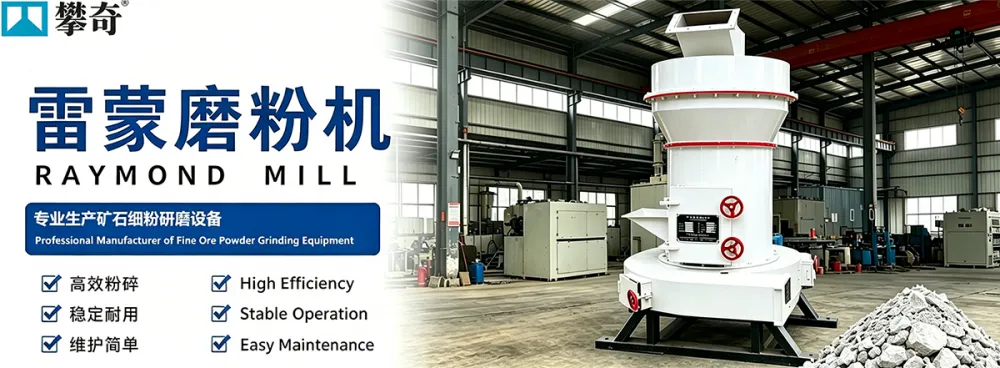

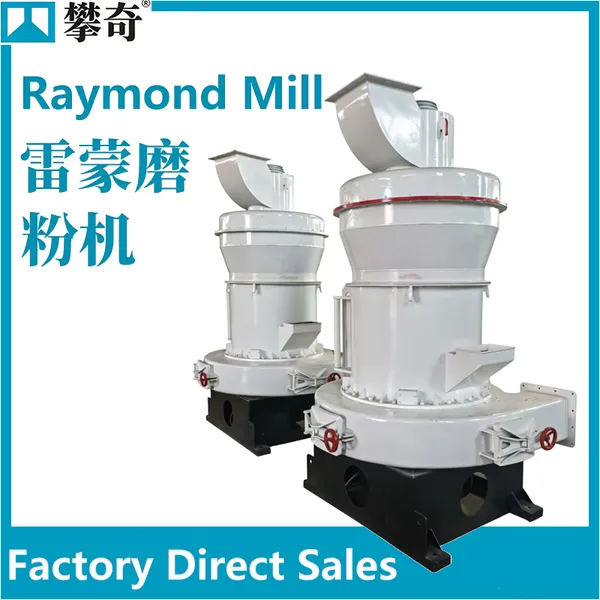

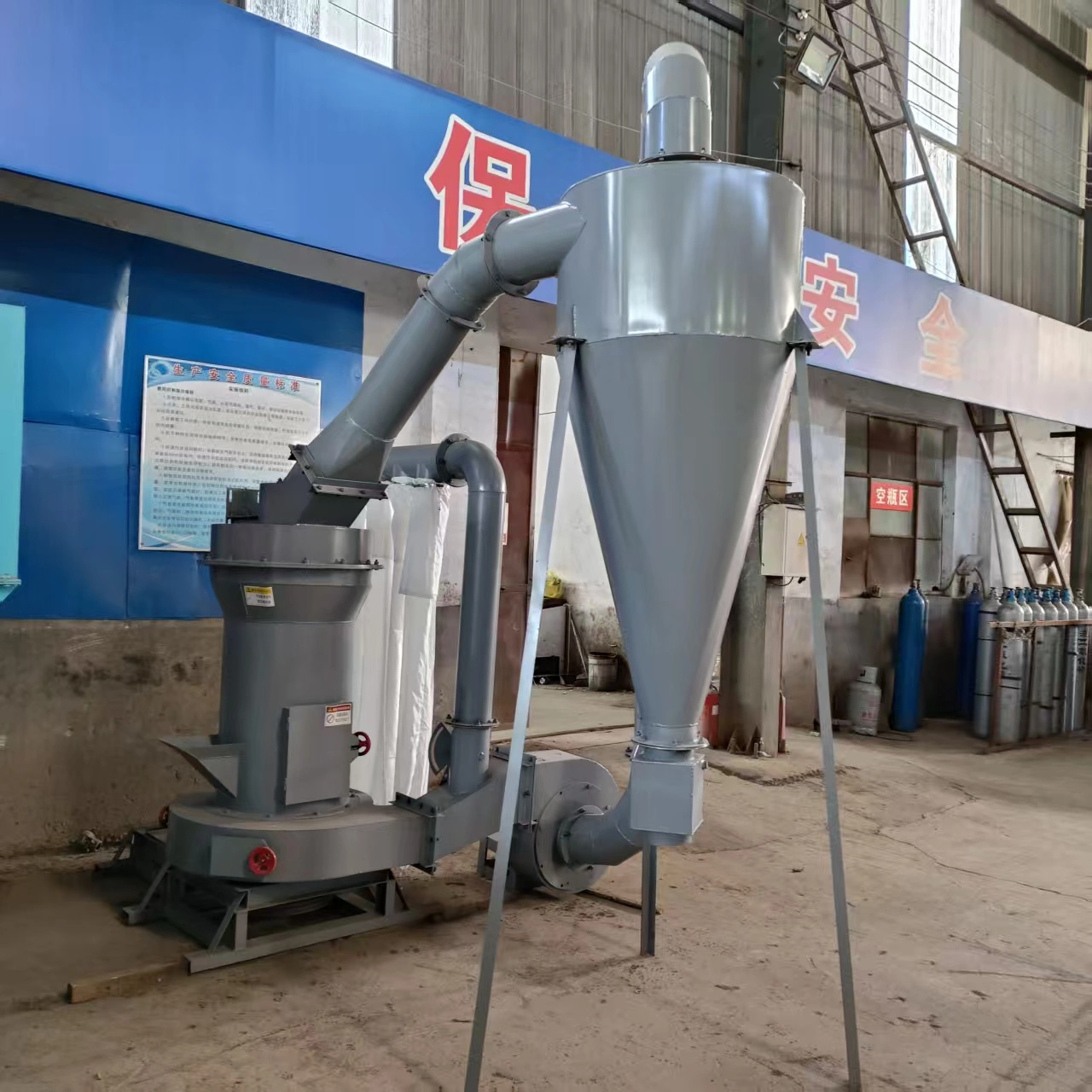

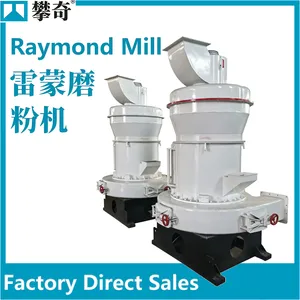

The 3R1510 Raymond Mill is a classic dry-type grinding equipment engineered for small-to-medium scale non-metallic mineral powder processing. As a high-efficiency model in the 3R series, it features a compact vertical structure that minimizes floor space while delivering complete integrated functionality—from raw material feeding and grinding to classification and finished powder discharge.
Designed specifically for non-flammable minerals with Mohs hardness ≤7 and moisture content ≤6%, this mill is widely applicable to limestone, calcite, bentonite, gypsum, talc, dolomite, barite, feldspar, kaolin, marble, and similar materials.
Finished product fineness is precisely adjustable between 80–325 mesh, ensuring uniform particle size and high screening efficiency (>98%). Upgraded wear-resistant rollers and rings guarantee stable operation, low failure rate, energy efficiency, minimal dust emission, and low noise levels. Simple operation and easy maintenance significantly reduce labor and operational costs.
Working Principle
Raw materials are first crushed to ≤20mm by a jaw crusher, then conveyed to the storage bin via bucket elevator and evenly fed into the grinding chamber by an electromagnetic vibrating feeder.
Inside the main unit, grinding rollers press tightly against the ring under centrifugal force, crushing materials through compression, shearing, and grinding actions. The ground powder is lifted by airflow from the blower and classified by the analyzer above. Qualified fine powder enters the cyclone collector as final product, while coarse particles fall back into the grinding chamber for re-processing, forming a closed-circuit system.
Excess air is purified by a dust collector before atmospheric release. The entire process operates in a sealed dry environment, minimizing dust pollution and meeting international environmental standards.
Core Advantages
Technical Specifications
| Parameter | Specification |
| Model | 3R1510 |
| Number of Rollers | 3 Pcs |
| Max Feed Size | ≤20 mm |
| Output Fineness | 80–325 Mesh (Adjustable) |
| Capacity | 0.5–2.2 t/h |
| Main Motor Power | 18.5 kW |
| Fan Motor Power | 5.5 kW |
| Analyzer Motor Power | 2.2 kW |
| Standard Voltage | 380V/50Hz (Custom: 415V/440V/60Hz Available) |
| Total Weight | 3.8 Ton |
| Overall Dimensions | 1600 × 1300 × 2400 mm |
| Applicable Hardness | Mohs ≤7 |
| Applicable Moisture | ≤6% |
Applicable Materials & Industry Applications
✅ Key Applicable Materials (Mohs ≤7, Moisture ≤6%)
Building Minerals: Limestone, Calcite, Marble, Dolomite, Gypsum
Chemical Fillers: Bentonite, Talc, Barite, Kaolin, Feldspar
Other Industrial Minerals: Fluorite, Bleaching Earth, Diatomite, Pyrophyllite, etc.
✅ Target Industry Applications
Building Materials: Production of limestone powder, gypsum powder, putty powder, cement additives, and construction fillers.
Chemical Industry: Processing bentonite, talc, and kaolin for use as additives, fillers, and desiccants.
Mineral Processing: Deep processing, purification, and fine grinding of non-metallic ores.
Agriculture & Feed: Grinding mineral feed additives, soil conditioners, and trace-element fertilizers.
Coatings & Rubber: Producing calcium carbonate and talc powder for paints, coatings, rubber, and plastics.
Small-Scale Workshops: Ideal for rural ore processing, individual powder production, and mobile mini-projects.
Export Projects: Perfectly suited for small mines and building material factories in Southeast Asia, Africa, the Middle East, and Latin America.

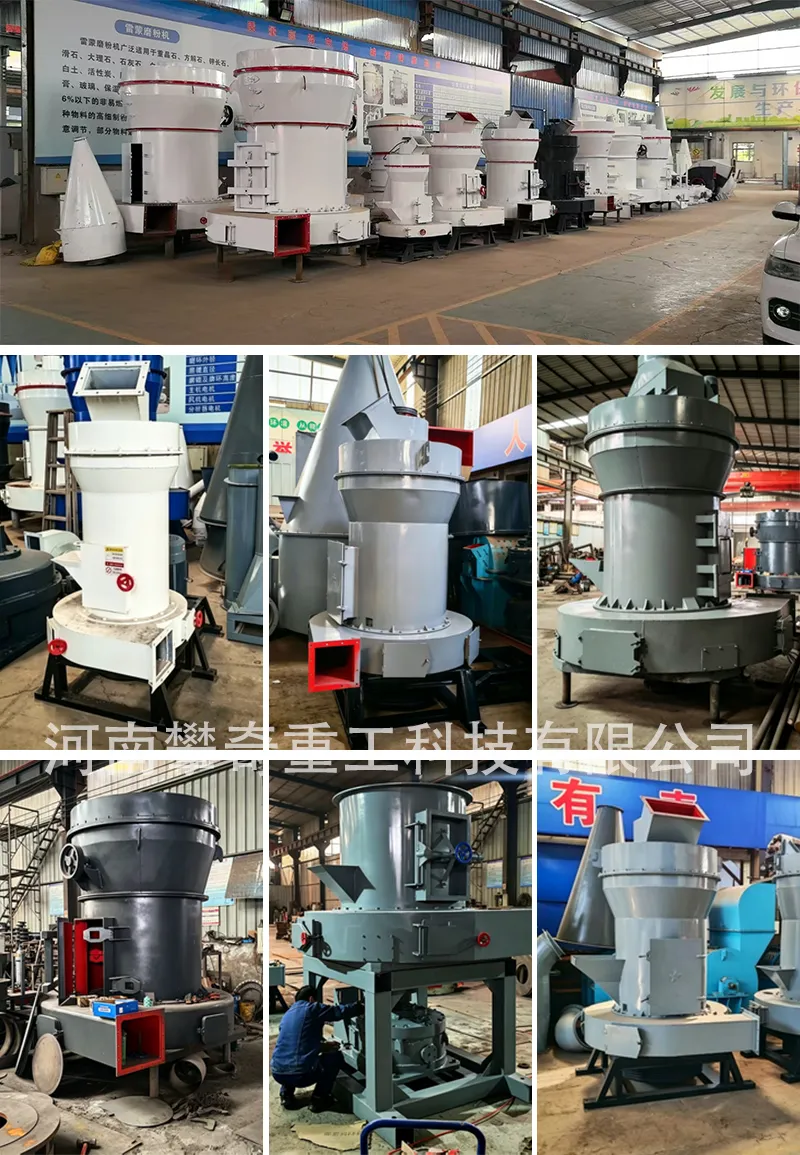

Product Gallery

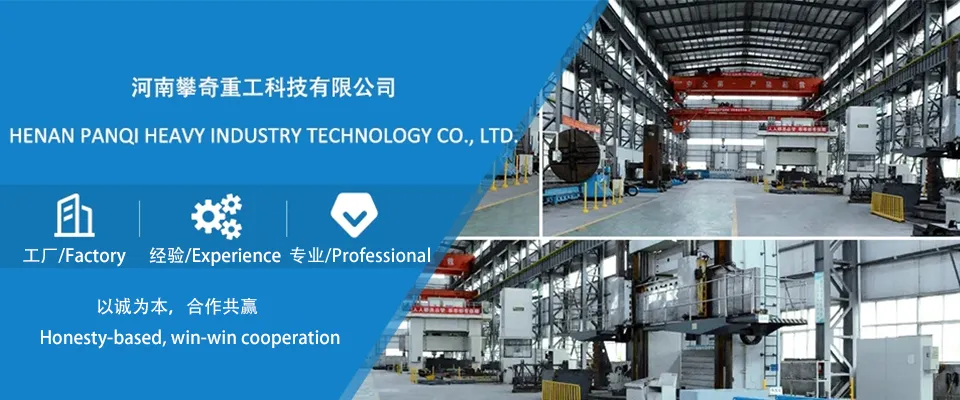

Manufacturer Profile & Certifications
Henan Panqi Heavy Industry Technology Co., Ltd. is a source manufacturer integrating R&D, production, sales, and after-sales service for mining grinding and crushing equipment. With over 12 years of industry experience, we specialize in Raymond mill series development and manufacturing.
We operate standardized large-scale workshops equipped with CNC machining centers and a professional R&D team, enabling full-process control from design and production to assembly and quality inspection.
Our company holds ISO9001 Quality Management System certification, "Contract-Honoring Enterprise" status in Henan Province, and National High-Tech SME qualification. We own 3 national utility model patents. Every unit undergoes rigorous pre-delivery testing to ensure stable performance and compliance with quality standards.
Our products serve over 30 provinces domestically and are exported to more than 30 countries across Southeast Asia, the Middle East, Africa, South America, and Europe, earning consistent acclaim from global clients in mineral processing, building materials, and chemical industries.
Why Partner With Us
1. Direct Factory Supply: Eliminate middlemen markups. Competitive pricing with volume discounts for bulk orders.
2. Flexible Partnership Models: Support long-term agency, OEM branding, and project-based collaboration with exclusive distributor policies.
3. Turnkey Solutions: Complete production line design, site layout planning, and equipment selection services to simplify your setup.
4. Global Export Expertise: Extensive international case studies. Full assistance with customs declaration, ocean freight booking, and clearance procedures.
Comprehensive After-Sales Support
Warranty: 1-year whole-machine warranty (excluding wearing parts). Free repair and replacement for non-artificial defects during warranty period.
Technical Support: Free installation guidance, commissioning, operation training, and maintenance tutorials. Lifetime online technical consultation.
Spare Parts Availability: Original wearing parts kept in stock for rapid dispatch, minimizing downtime.
Customization Options: Tailored voltage, motor brand, capacity, and auxiliary systems (dust collection/crushing) to match specific requirements.
On-Site Services: Factory visits and free sample testing welcome. Engineers available for overseas installation on large projects.
Delivery Assurance: In-stock units shipped within 48 hours; customized orders delivered in 7–15 days. Dedicated truck or direct logistics options available.

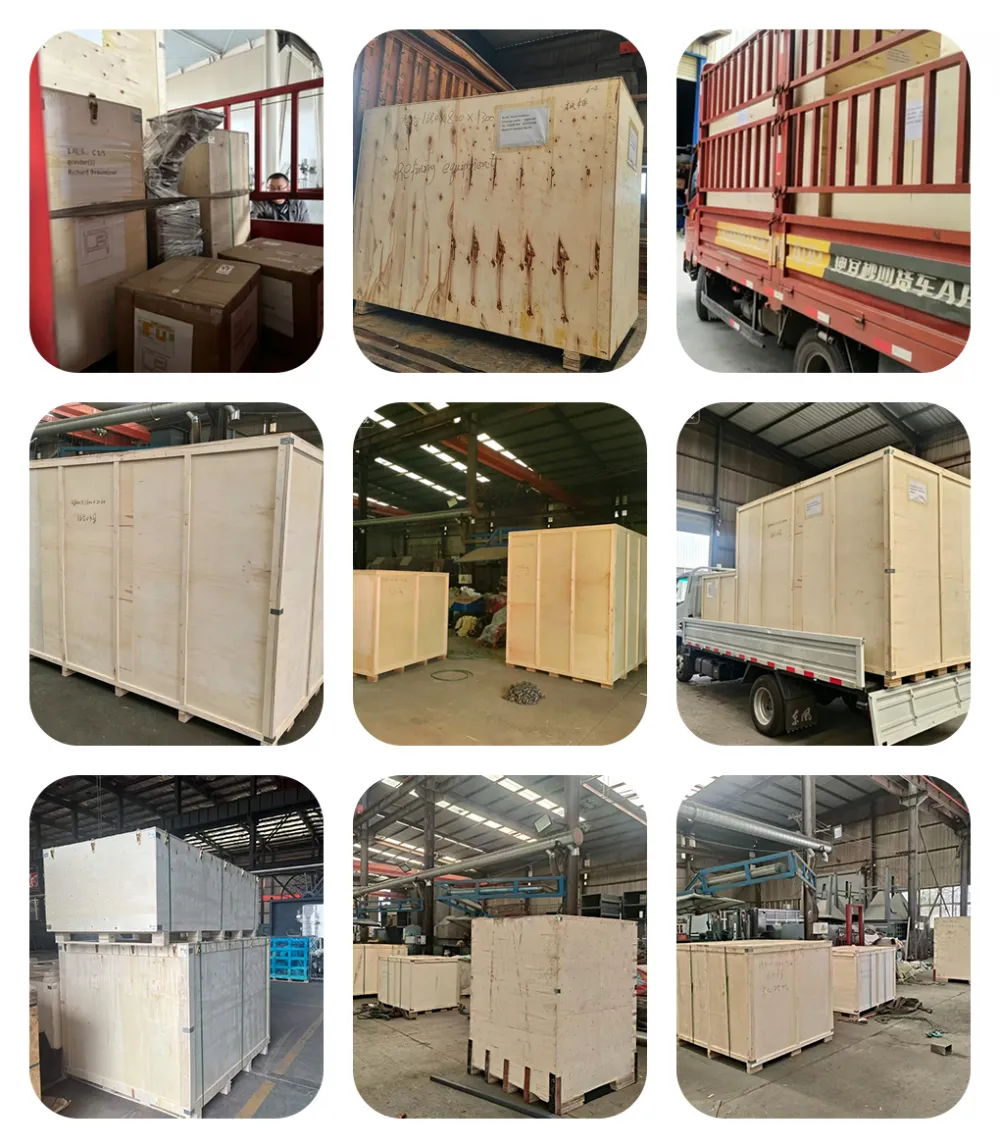

Packaging & Shipping
Packaging: Main unit, motor, and control cabinet secured with thick waterproof stretch film on solid wood pallets. Spare parts packed individually in cartons. Fumigated wooden pallets available for export compliance. Anti-collision, moisture-proof, and rust-proof protection throughout transit.
Shipping Methods: Domestic: dedicated truck, LTL, or full-truck load. International: sea, land, or air freight. Full support for booking, customs clearance, and commodity inspection with end-to-end tracking.
Lead Time: In-stock items dispatched within 48 hours. Customized units completed and shipped in 7–15 days. Pre-shipment inspection includes packing list, certificate of conformity, and user manual.
Frequently Asked Questions
| Q1: Can the output fineness be precisely adjusted? What is the range?Yes, fineness is freely adjustable from 80–325 mesh by changing the analyzer speed. Output is uniform and stable with >98% screening efficiency. |
| Q2: Is voltage customization available for overseas use?Absolutely. Standard configuration is 380V/50Hz three-phase. Custom voltages including 415V, 440V, and 60Hz are available to match local power grids worldwide. |
| Q3: What materials cannot be processed?This mill is designed exclusively for non-flammable, non-explosive non-metallic ores with Mohs hardness ≤7 and moisture ≤6%. High-hardness metal ores, flammable/explosive substances, and high-moisture sticky materials are not suitable. |
| Q4: What is the delivery time and shipping method?In-stock units ship within 48 hours; customized orders take 7–15 days. Domestic shipments via dedicated logistics; international orders supported with one-stop shipping and customs clearance services. |
| Q5: Do you provide operation training for new users?Yes. We provide detailed manuals, video tutorials, and one-on-one online guidance. For large orders, engineers can be dispatched for on-site installation, commissioning, and hands-on training. |
| Q6: Can this mill be integrated with other crushing/conveying equipment?Yes. We offer complete turnkey powder production line solutions, including crushers, elevators, feeders, and dust collectors—all matched and ready for immediate commissioning. |
Purchase Information
Wholesale, retail, and custom orders accepted. Volume discounts available—contact us for best pricing.
Quoted price is ex-works (EXW), excluding freight and taxes. Please contact our team for CIF/FOB quotes.
Before ordering, please confirm your material type, target fineness, required capacity, voltage, and site conditions so we can recommend the optimal solution.
All equipment is brand-new and factory-direct. No refurbished or second-hand units. Factory inspections welcome.
