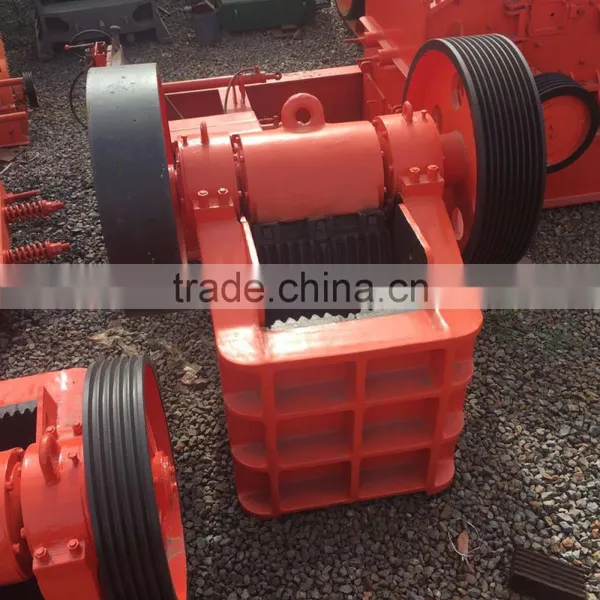

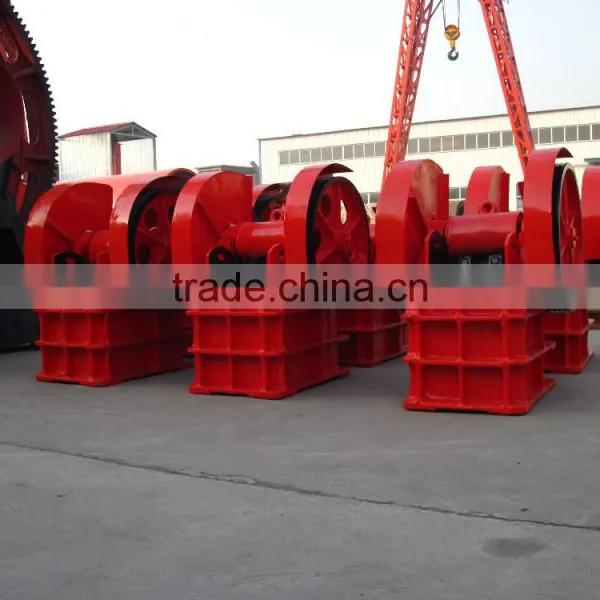

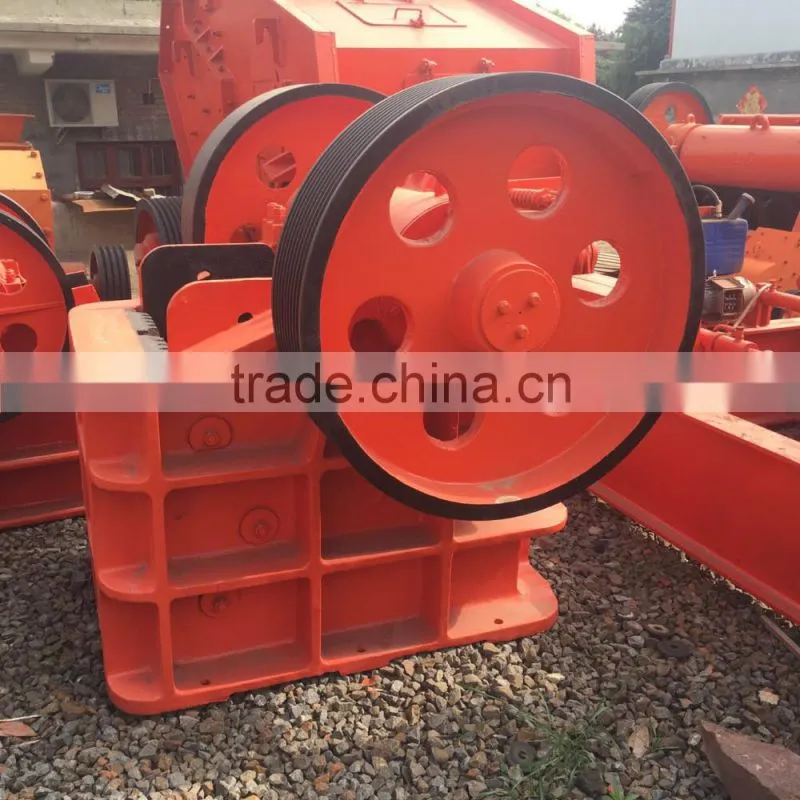

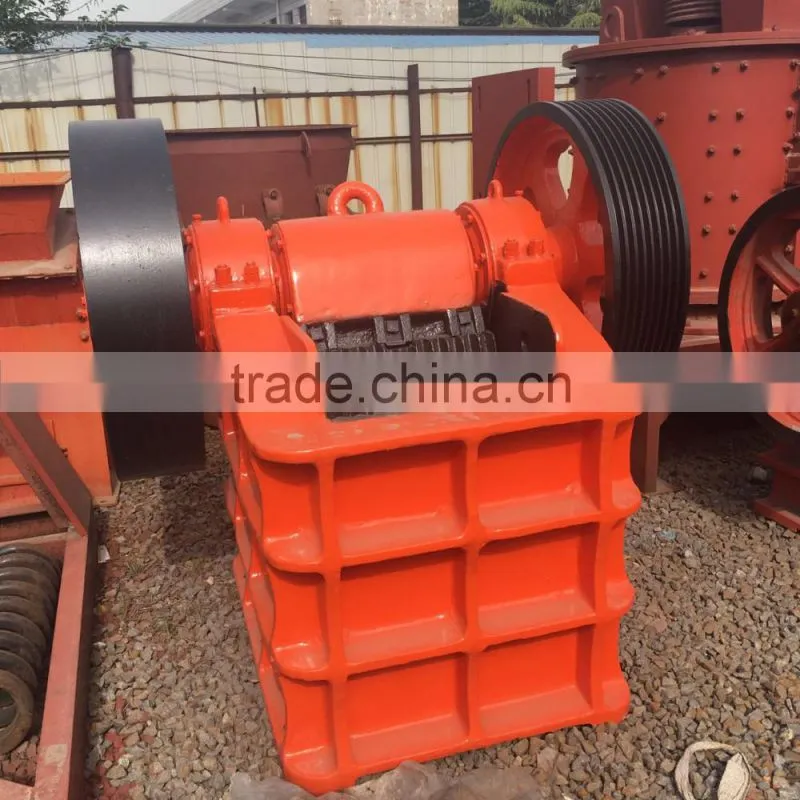

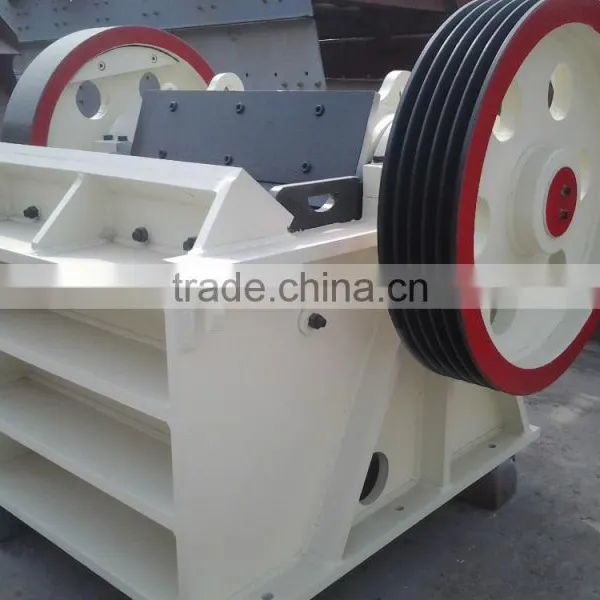

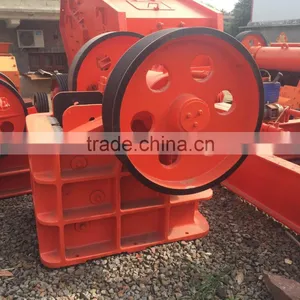

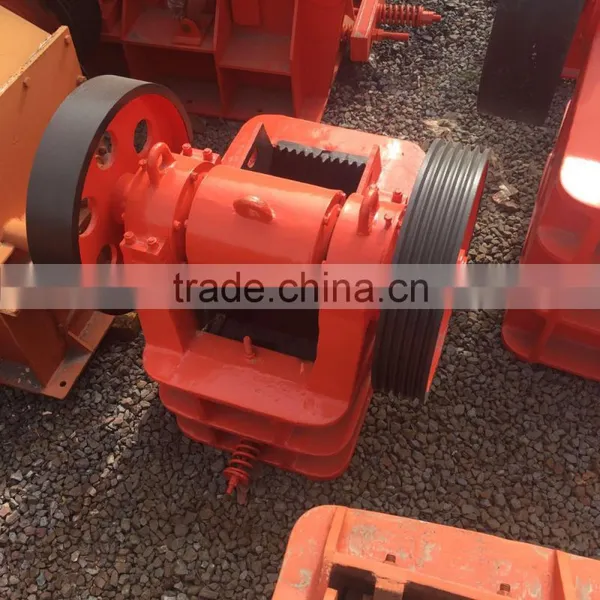

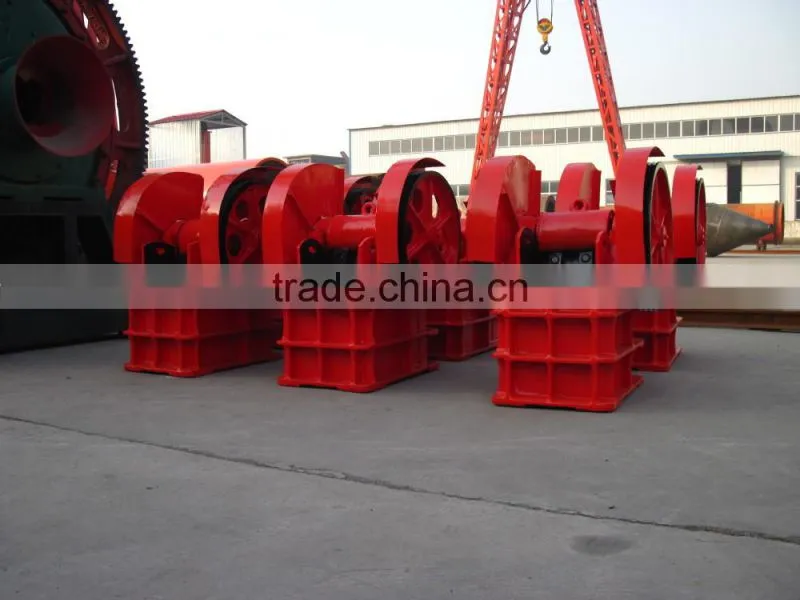

Stone crushing equipment/ limestone crusher/ ore crusher
Limestone crusher maninly used for crushing ore, quartz,granite, limestone, slag, marble, etc.

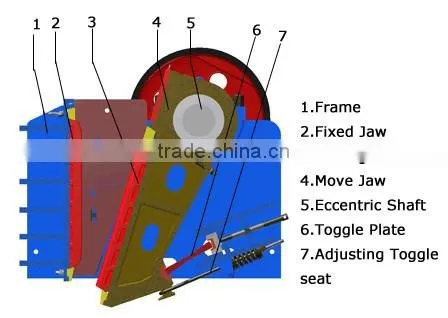

Structure of Jaw Crusher,limestone crusher,rock crusher:
The structure of limestone crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Limestone crusher technical parameter:
| Model | Feeding(mm) | Discharging(mm) | Output(m³/h) | Power(kw) | Weight(t) |
| PE-150×250 | 125 | 10-40 | 1-3 | 5.5-7.5 | 0.7 |
| PE-200×300 | 165 | 20-70 | 2-8 | 7.5 | 0.8 |
| PE-250×400 | 210 | 20-80 | 5-20 | 15-18.5 | 3 |
| PE-400×600 | 340 | 40-90 | 10-40 | 30 | 7.2 |
| PE-350×750 | 290 | 30-55 | 20-50 | 37 | 8.9 |
| PE-500×750 | 425 | 50-100 | 34-68 | 55 | 11.3 |
| PE-600×900 | 480 | 75-200 | 40-120 | 75 | 17.6 |
| PE-750×1060 | 630 | 80-200 | 80-160 | 90 | 30 |
| PE-900×1200 | 750 | 100-200 | 110-200 | 110 | 50 |
| PE-1000×1200 | 850 | 195-265 | 315-500 | 110 | 55 |
| PE-1200×1500 | 1020 | 150-350 | 400-800 | 160 | 100 |
| PEX-150×750 | 125 | 8-35 | 5-15 | 15 | 3.6 |
| PEX-250×1000 | 210 | 15-55 | 15-40 | 37 | 7.3 |
| PEX-250×1200 | 210 | 15-60 | 20-50 | 37 | 8.7 |
| PEX-300×1300 | 250 | 20-90 | 16-65 | 55 | 11.6 |
Features of Jaw Crusher,limestone crusher,rock crusher:
1. Jaw Crusher, limestone crusher, rock crusher has various types;
2. Jaw Crusher, limestone crusher, rock crusher is suitable for crushing big , middle and small size stones;
3. The operating principle of Jaw Crusher, stone crusher,rock crusher is easy to be operated;
4. The structure of Jaw Crusher, stone crusher,rock crusher is simple and it is easy to maintain;
Operating principle of Jaw crusher,limestone crusher,rock crusher:
Jaw crusher uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
About Derui Machinery:
Gongyi Derui Machinery Co., Ltd. is a China-based high-technology heavy machinery manufacturer, which engaged in R&D, production and sales of machinery. Our main products include rotary kiln, mineral processing equipment, dryer equipment, limestone crusher machine, sand and stone production line, Ball mill, etc.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
