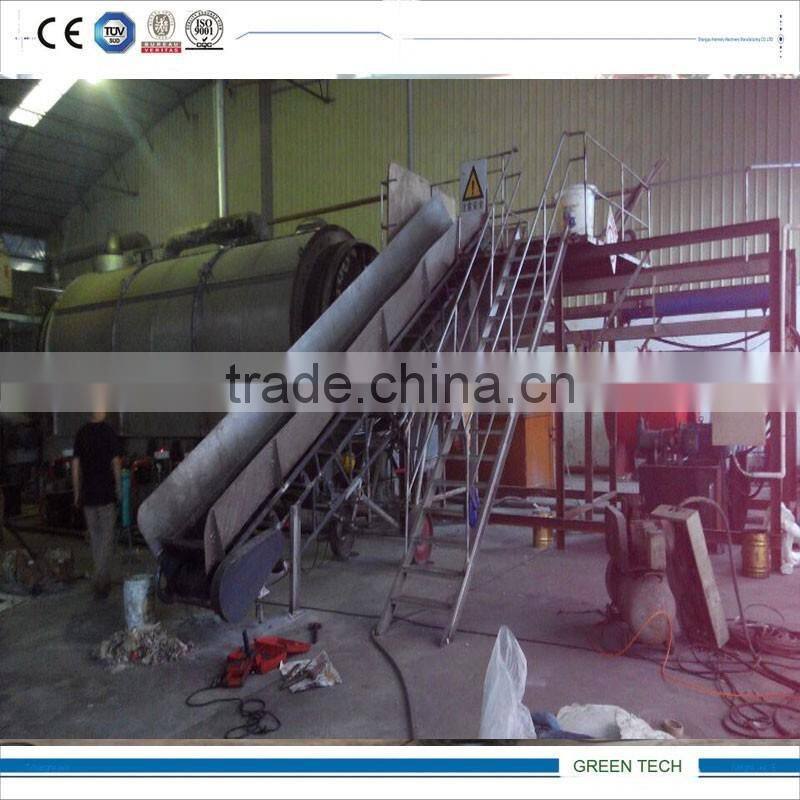

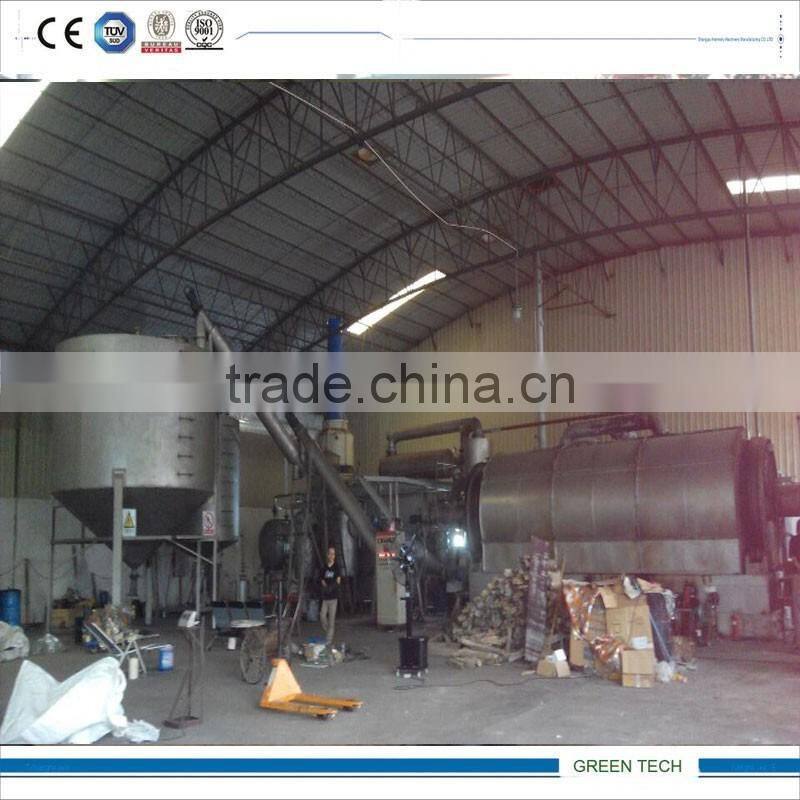

Help CenterPlastic Recycling To Oil Sem-continuous Pyrolysis Plant With Sepcial Salg Device
Related Products
-
2010 Scrap Plastic Pyrolysis Equipment 8 TonUS$ 38,000 - 1,000,000MOQ: 1 Set -
Plastic Special Pyrolysis Plant Getting High Quality Plastic Oil Without Wax 10tpdUS$ 30,000 - 45,000MOQ: 1 Set
-
Mobile Mini Batch Type 2 Ton Plastic Pyrolysis PlantUS$ 25,000 - 36,000MOQ: 1 Set
-
Pollution Free Type Convert Plastic To Oil Pyrolysis System From 5ton To 60Ton 1US$ 35,000 - 70,000MOQ: 1 Set
-
2015 Up-dated Easy Installtion Rubber To Oil Refinery Pyrolisis Machinery 15TPDUS$ 42,000 - 66,000MOQ: 1 Set
1,Plant featurs

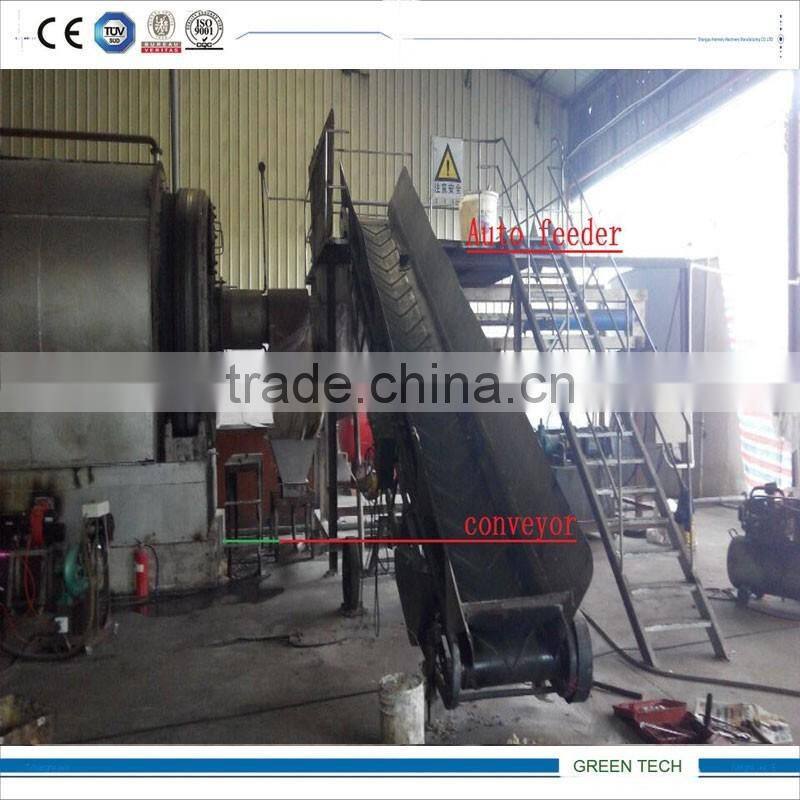

A.)with auto feeding system , improve working efficiency
B.)auto slag, slag in sealing way no carbon powerder fly in air ,,carbon slag very fast ,shorten workign time, and anti-high temperature slag device, no need machine cool down,saving time
C.) Resonable cooling system, high Oil rate out put .
D. )full safety device, with auto alam system. 100% anti-explosion
2, technology specialty
NO | Name | parameter |
1 | The raw materials: | waste tires, plastics and oil sludge |
2 | Total Capacity: | 5t/day,10t/day,20t/day,50t/day,100t/day |

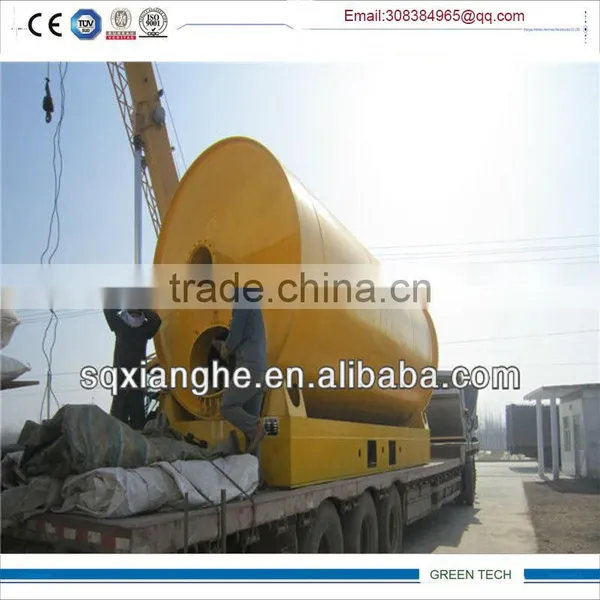

3 | the size of reactor: | 2.2*4.5m, 2.2*6m,2.4*6m,2.6*6m,2.8*6 m |
4 | Average oil productivity: | Tire:40%-50%,plastic:60%-70% |
5 | Average carbon productivity: | 30%-35% |
6 | Average steel productivity: | 10%-15% |
7 | Average waste-gas productivity: | 5% |
8 | Pyrolysis time: | 8 hours |
9 | Discharging time: | 3 hours |
10 | Feeding time: | 1 hour |
3.Work flow:
A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
|
4.About us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
5.Our customer :
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong, Taiwan | |
Oversea users | The Middle East | Iran,Iraq,Lebanon |
East Asia | Korea | |
Europe | Poland,Turkey | |
Africa | Mauritius | |
South America | Brazil | |
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | |
South Asia | Pakistan,India | |
| Europ | Italy |
6.Different material oil rate
Oil yied/day | Waste tire/ rubber | Big tyres | 45%--50% |
Car tyres | 40% | ||
Bicycles and motorcycles tyres | 30%--35% | ||
Waste plastic | Fishing net | 45%--50% | |
Safety net , farm-oriented film | |||
Conwenient bags , weave bags | 40% | ||
Off cut of recycled paper mill | 20%--30% |
