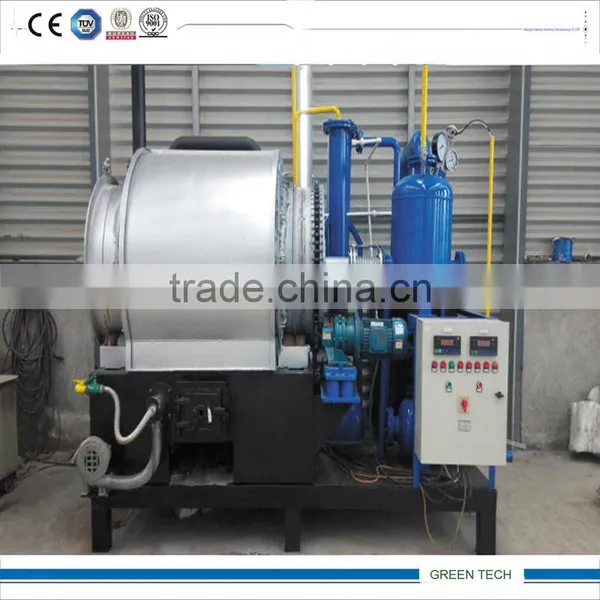

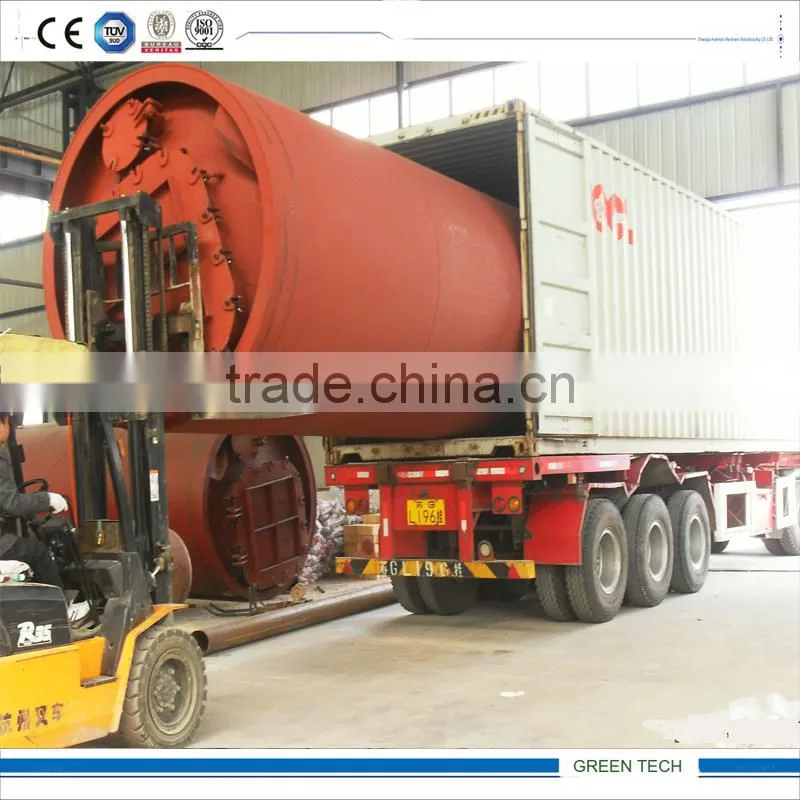

1. Mobile Mini Batch Type 2 Ton Plastic Pyrolysis Plant
2.Plant paramter
NO. | Name | Parameter |
1 | The raw materials: | waste tyres,/rubber/plastic/oil sludge |
2 | Daily capacity: | 2-3Ton |
3 | The size of reactor (D*L) | 1600*3300mm |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-50%, |
6 | Average carbon productivity: | 30%-35% |
7 | Average steel productivity: | 10%-15% |
8 | Average waste-gas productivity: | 5-8% |
9 | pyrolysis time | 6hours |
10 | Discharge time | 1 hour |
11 | Feeding time | 1 hour |
12. | Cooling time | 2 hours |
13 | Working pressure | Normal /slightly negative |
14 | Power | 11 kw |
15 | Fuel | Coal. Wood, gas etc |
16 | Working area | 400 square meters |
17 | Total weight | 26 000kgs |
18 | Reactor rotate speed | 0.25-0.4/min |
19 | Noise | No more than 85 db |
20. | Type | NEW TECH Pollution free |

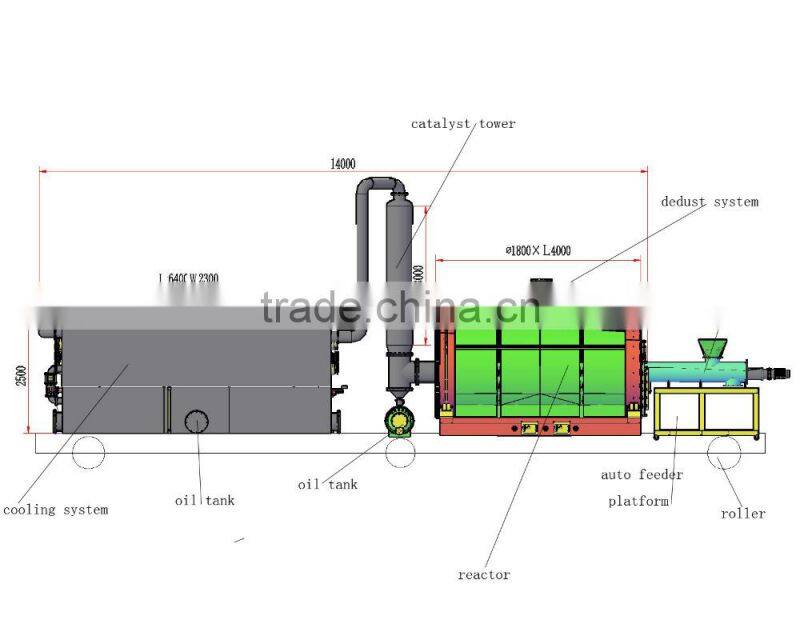

3.Work-flow
A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4.Plant featurs
A.small capacity
B. easy to move , more convenient
C. saving working area
D.Saving working laours , one worker is ok
E. Pollution free
F. Getting good quality oil
5.Oil rate for different plastic material
PE | 50%-75% |
PP | 50%-75% |
PS | 50%-75% |
ABS | 40% |
Leftovers of paper | Wet 15-20%, dry 60% |
House garbage | 35-50% |
Plastic cable | 80% |
Plastic bag | 50% |
Submarine cable | 75% |
Rubber cable | 35% |
Sole | 30% |
Big tires | 45-50% |
Small tires | 35-40% |
PVC | Not suitable |
PET | Not suitable |
6.Plastic oil parameter
Density | g/cm3 | 0.83-0.87 |
Freezing Point | oC | 10 |
flash point | oC | 40 |
Kinematic viscosity | mPa.s | 8 |
Combustion value | kJ/kg | 9500 |
7.You may interest
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type |
5ton 10ton 15ton 20ton 30ton | Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
