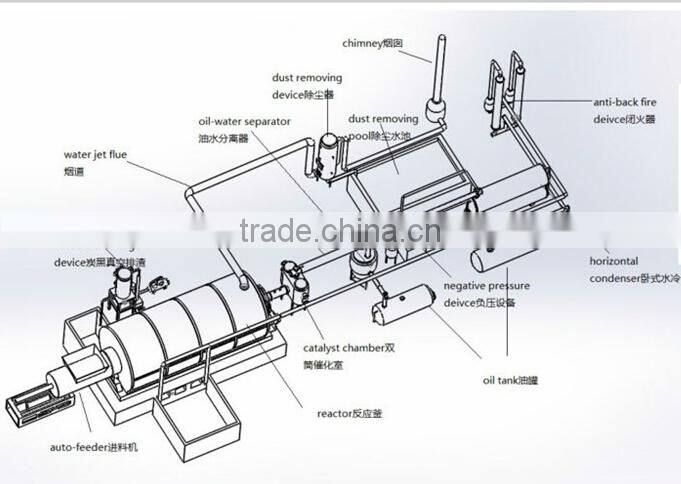

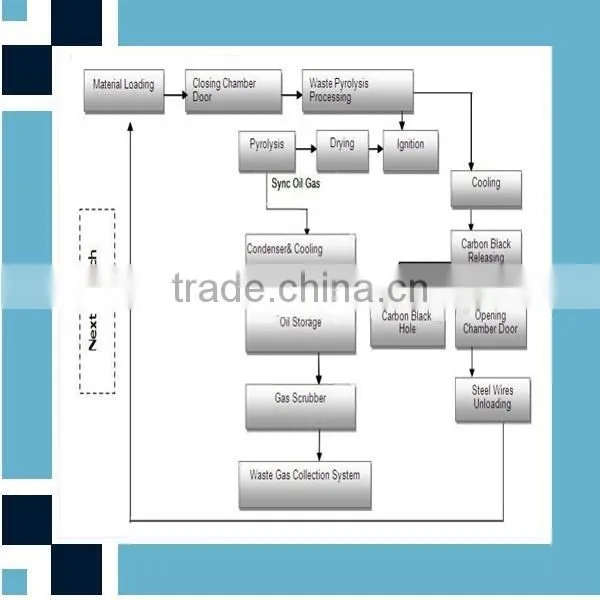

1.Pyrpolisis work-flow
A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
2.Plant featurs:
1.Reasonable design, easy to use and plant installation fast,saving installation time and cost
2.Wtith catalyst device getting high quality oil
3.carbon discharge fast, auto slag
4.High-configuration ,d edust system is advanced, pollution free
5.One machine can be used for multiple usage
can be used for plastic, rubber, tyre, oil sluge , used cooling oil etc
can be go oversea for service , never let you worry about our service
7.Delivetry time fast
3.Plant data
Reactor size |
2800*8000mm |
Reactor material |
Q345R |
Reactor thickness |
16MM |
Reactor structure |
Horizental |
Working type |
Batch type |
Working round area |
400-500M2 |
Labours required |
1-2 |
Batch time required |
18-20Hours |
Cooling way |
Water cooling |
Water required |
Water is recycling almost no consumption (no more than 5kgs) |
Coal required |
700KGS |
Power required |
300kw |
Working pressure control |
No more than 0.3p |
Effective temperature |
200-400 ℃ |
Material can be used for pyrolysis |
Tyre,rubber,cable,plastic, Living waste,cooking waste,oil sludge ETC |
Motors |
Reducer5.5kw,fan7.5kw, blower4*0.25kw Oil pump1.5kw,waterpump1.5kw |
4.Rubber oil Parameter
Item |
Tire Oil |
Density g/cm3 |
0.90-0.92 |
Freezing Point oC |
-10 |
flash point oC |
50 |
Kinematic viscosity mPa.s |
6 |
Combustion valuekJ/kg |
10500 |
5. About our service
Pre-sale service:
1.Our engineer offer project report help you analysis cost and profit,and advise customer suitable type plant and details.
2.Take customers visit running plants.
On-purchase service:
1.Once get advance payment, we will offer layout and detailed art-work drawings and detailed machine lists.
2.Help users booking ship.
After-sale service:
1. Delivery time-- It will be within 15 working days after we receive the deposit.
2. Warranty- The warranty period is 2 Years(Other suppler offer 1 year warranty), engineers available to service at any time.
3. Installation and Training-- Our Company will dispatch technician to guide installation and training for free, ensuring the operation safety. The installation period shall be one month; otherwise, buyers will pay extra salary for the technician with the price of USD 60.00 per day.
4. 24-Hours telephone service .
Regular phone visiting to check out if there is anything we can do for you, maintenance guiding, easily worn-out parts and catalyst offering, on-site maintenance.
5.Up-date technology will inform our users and help them update plant.
6.Documents of operation manual and matters need attention will be offered to users.
7.Offer catalyst formula for free, training oil treatment skills for free.
