stainless steel filter press machine for medicine slurry
Stainless steel filter press machine adopts SS304, SS316, can also according to customer's requires of imported stainless steel, stainless steel filter press can be used for food, fruit juice, wine and other industries with higher sanitary requirements.also with higher anticorrosion performance, warmly used in chemical industry products, such as electric plating solution filtration and so on.
Technical parameters:
1. The beam is covered with SS304 or SS316, with anticorrosion, also can also adopt imported stainless steel according to customer’s requirments
2. Easy to clean up with cloths.
3. Material:Stainless steel, widely used in food industry.
4. Filtration pressure:0.6Mpa-1.0Mpa
5. Working temperature:more than 100 degree centigrade
6. Even can bear PH 0.5 and higher.
Application:
Apply to the inorganic salt chemical industry, metallurgy, pharmaceutical, light industry, mineral processing, food, textile, environmental protection, energy and other industries solid-liquid separation process.

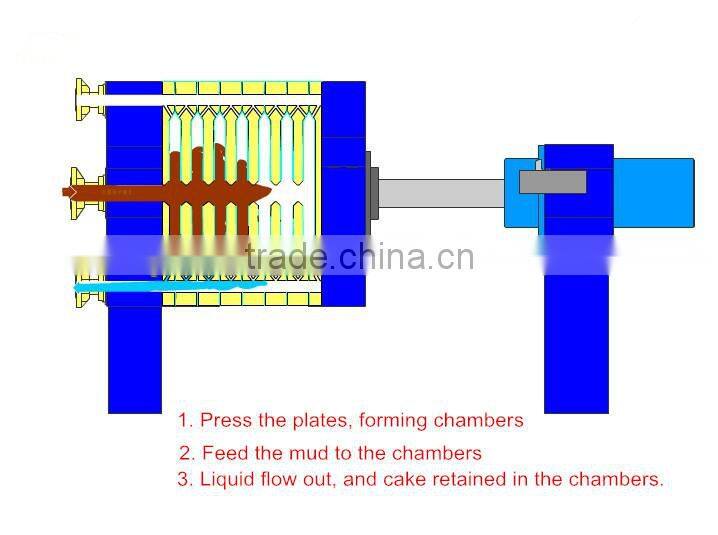

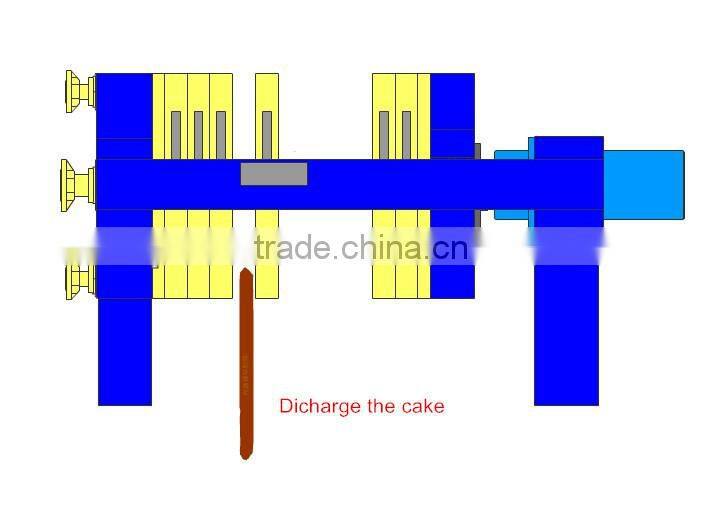

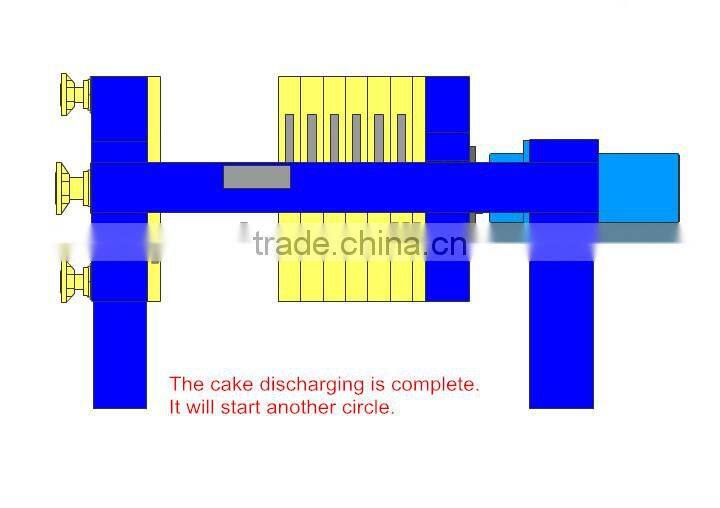

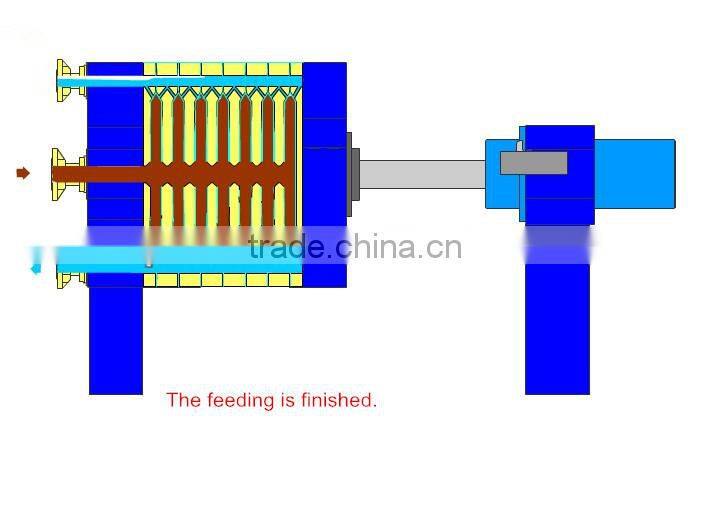

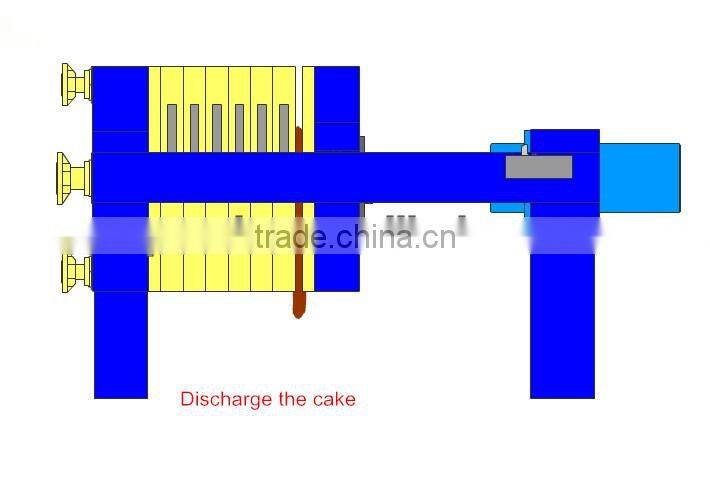

Working principle:
It will show in pictures as the followings,
Technical parameters
Specification | Filter area (m2) | plate size (mm) | Filter cake thickness (mm) | Filter chamber volume (L) | Filter plate number (pcs) | Frame plate number (pcs) | |
BAQ1/320 | 1 | 320*320 | 25 | 13 | 4 | 5 | |
BAQ2/320 | 2 | 25 | 9 | 10 | |||
BAQ3/320 | 3 | 38 | 14 | 15 | |||
BAQ4/450 | 4 | 450*450 | 51 | 9 | 10 | ||
BAQ6/450 | 6 | 76 | 14 | 15 | |||
BAQ8/450 | 8 | 102 | 19 | 20 | |||
BAQ10/450 | 10 | 122 | 24 | 25 | |||
BAQ12/450 | 12 | 152 | 29 | 30 | |||
BAQ16/450 | 16 | 203 | 39 | 40 | |||
BAY4/450 | 4 | 51 | 9 | 10 | |||
BAY6/450 | 6 | 76 | 14 | 15 | |||
BAY8/450 | 8 | 102 | 19 | 20 | |||
BAY10/450 | 10 | 122 | 24 | 25 | |||
BAY12/450 | 12 | 152 | 29 | 30 | |||
BAY16/450 | 16 | 203 | 39 | 40 | |||
BAQ10/610 | 10 | 550*550 | 122 | 15 | 16 | ||
BAQ12/610 | 12 | 152 | 19 | 20 | |||
BAQ15/610 | 15 | 189 | 24 | 25 | |||
BAQ20/610 | 20 | 250 | 32 | 33 | |||
BAY10/610 | 10 | 122 | 15 | 16 | |||
BAY12/610 | 12 | 152 | 19 | 20 | |||
BAY15/610 | 15 | 189 | 24 | 25 | |||
BAY20/610 | 20 | 250 | 32 | 33 | |||
BAQ15/630 | 15 | 630*630 | 189 | 18 | 19 | ||
BAQ20/630 | 20 | 250 | 24 | 25 | |||
BAQ30/630 | 30 | 377 | 37 | 38 | |||
BAY15/630 | 15 | 189 | 18 | 19 | |||
BAY20/630 | 20 | 250 | 24 | 25 | |||
BAY30/630 | 30 | 377 | 37 | 38 | |||
BAY30/800 | 30 | 800*800 | 442 | 22 | 23 | ||
BAY40/800 | 40 | 595 | 30 | 31 | |||
BAY50/800 | 50 | 748 | 38 | 39 |

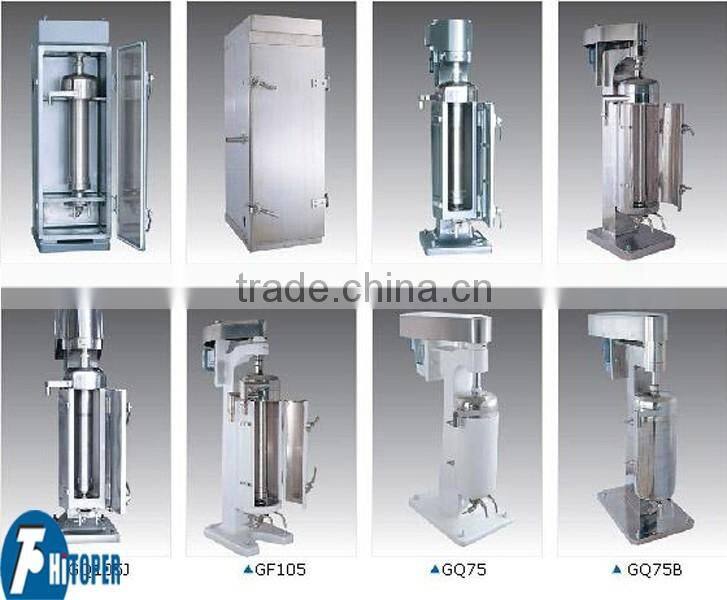

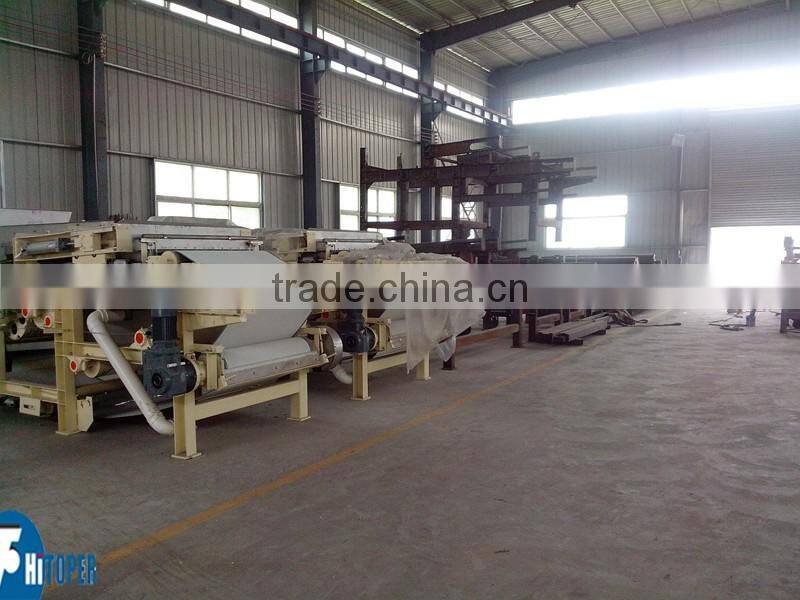

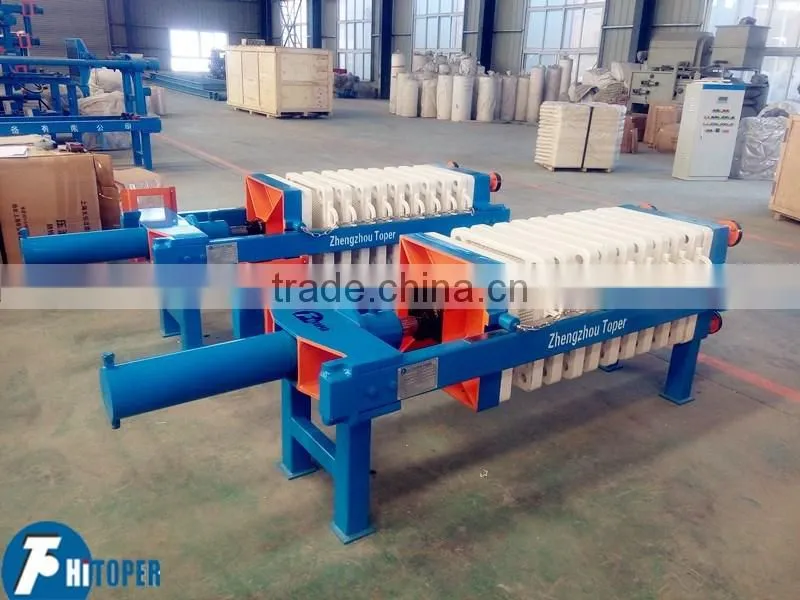

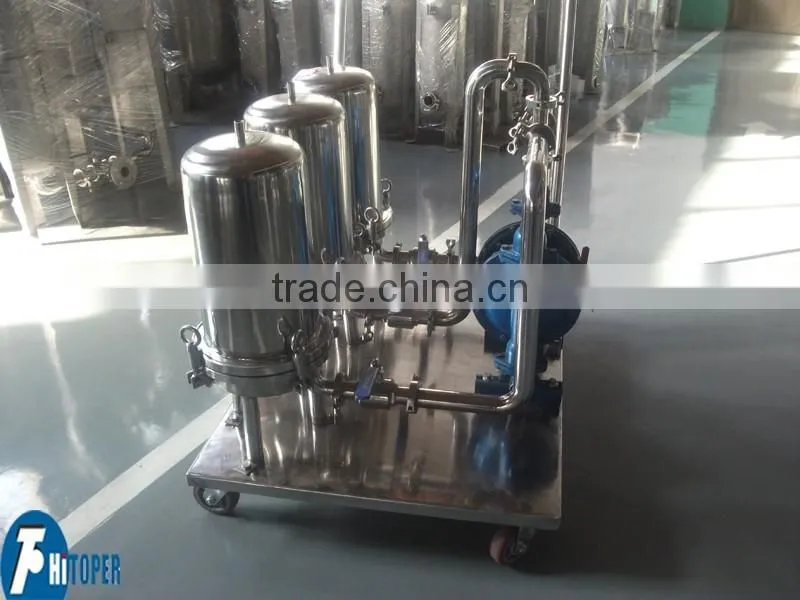

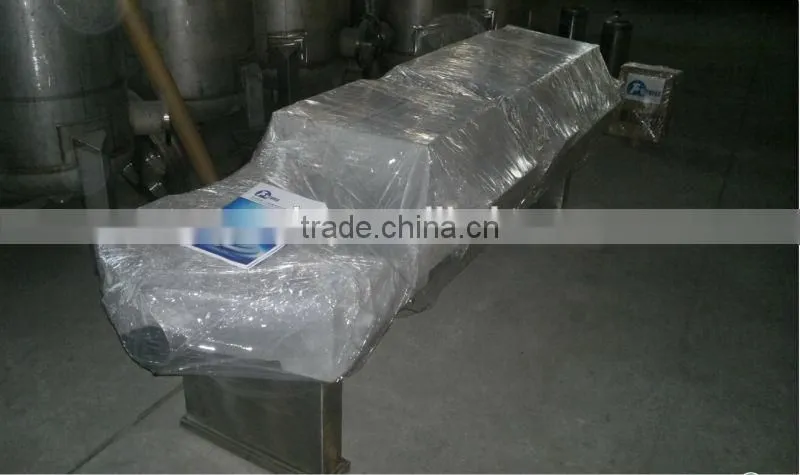

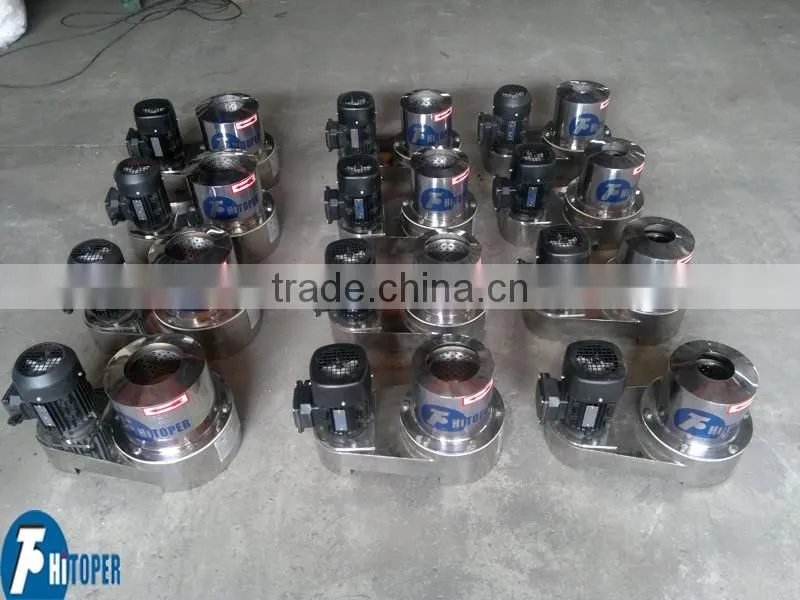

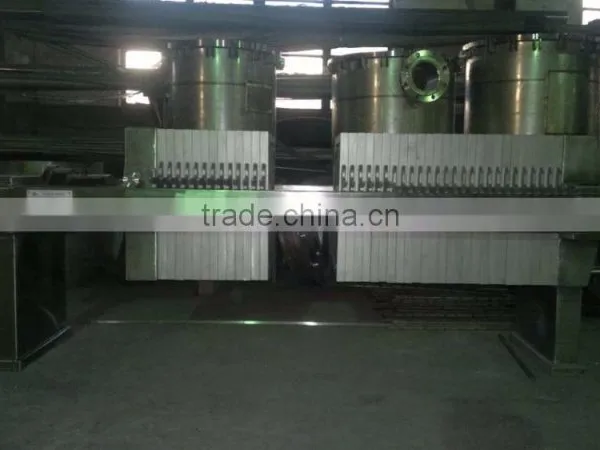

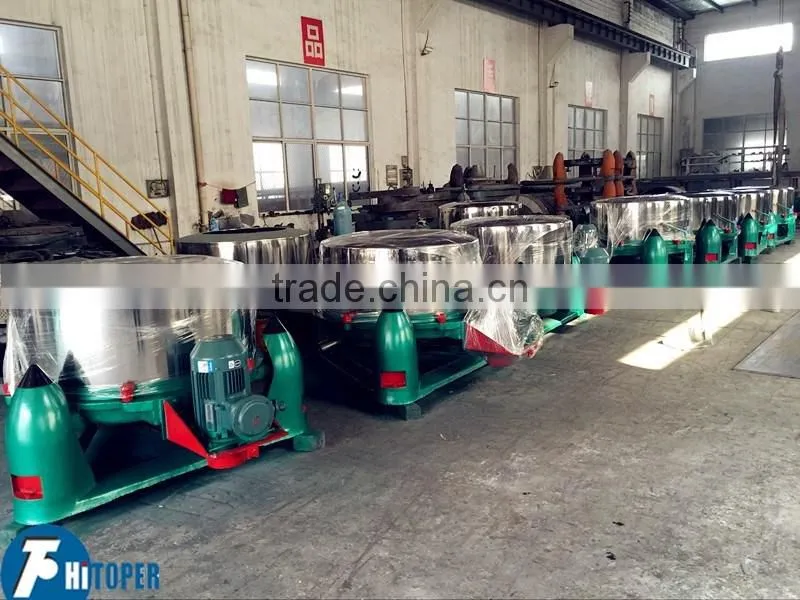

Various filter and separation equipment in our factory.
