Mobile filter press manufacturer.round cotton cake filter press
Overview of the mobile filter press manufacturer
Mobile filter press manufacturer using recycled fiber material as filter media to remove traces of oil in the liquid material, mechanical impurities, suspended complexes and other impurities, so that filtered liquid clear and transparent.
Use and characteristics of the mobile filter press manufacturer
The company produces cotton cake frame filter machine is also suitable for liquid purification and filtration.In the chemical industry, metallurgy, pharmaceutical, food and other industries widely be used.
This unit has a large filter area, convenient operation and maintenance of the characteristics ,
the machine frame with a circular structure, a square structure of the frame than the filter performance is more excellent, aircraft aluminum frame material and reinforced polypropylene two kinds of and can increase the number of frame can be reduced, can be applied to different liquid filtration.
Application:
It is used in fermentation ,enzymes,RNA gelatin,food and beverage ,and other high precision requirement industries.
The main technical sepcifications of the mobile filter press manufacturer
Filter area (m2) | (mm) Plate size | (mm) Frame thickness | (Mpa) (kg/cm2) Filter pressure | (pcs) Plate quantity | (kg/cm2) Max. pressure Inner frame | (L) Volume inside frame | Dimension L×W×H | (L/min) flow | (kw) Motor power | (r/min) Motor speed | (Mpa) Steady pressure | (mm) Max. displacement |
| 8 | 500 | 50 | ≤2 | 22 | 3 | 216 | 2630×1150 ×770 | 87 | 1.1 | 1460 | 12 | 350 |
(m2) Filter are | (mm) Plate size | (mm) Frame thickness | (Mpa) (kg/cm2) Filter pressure | (pcs) Plate quantity | (kg/cm2) Max. pressure Inner frame | (L) Volume inside frame | Dimension L×W×H | (L/min) flow | (kw) Motor power | (r/min) Motor speed | (Mpa) Steady pressure | (mm) Max. displacement |
| 5 | 400 | 50 | ≤2 | 22 | 3 | 138 | 2630×1050 ×670 | 55 | 1.1 | 1460 | 12 | 350 |

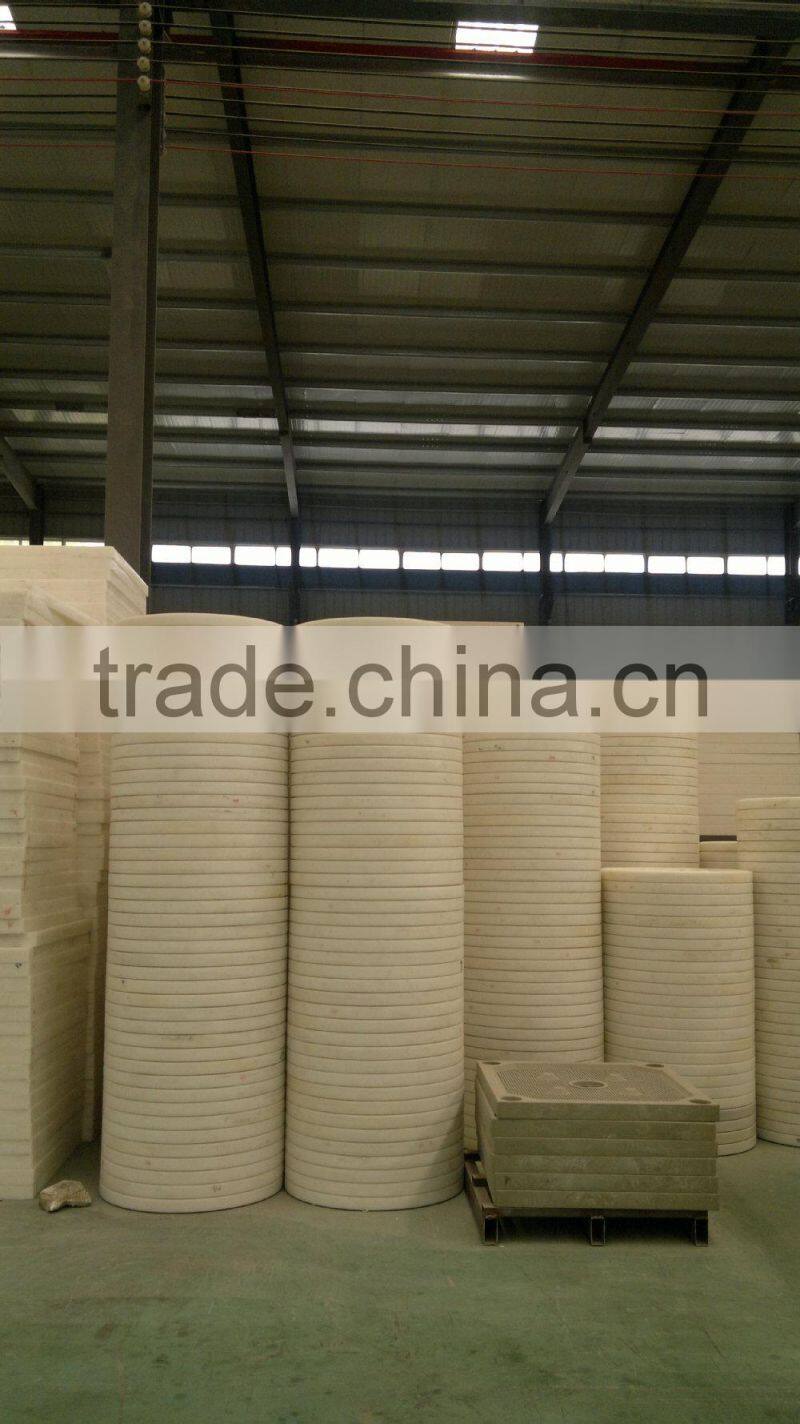

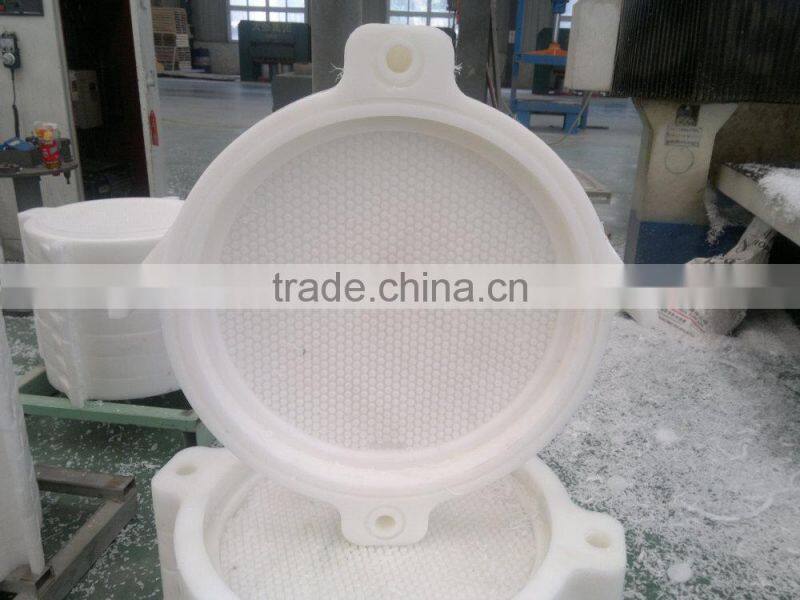

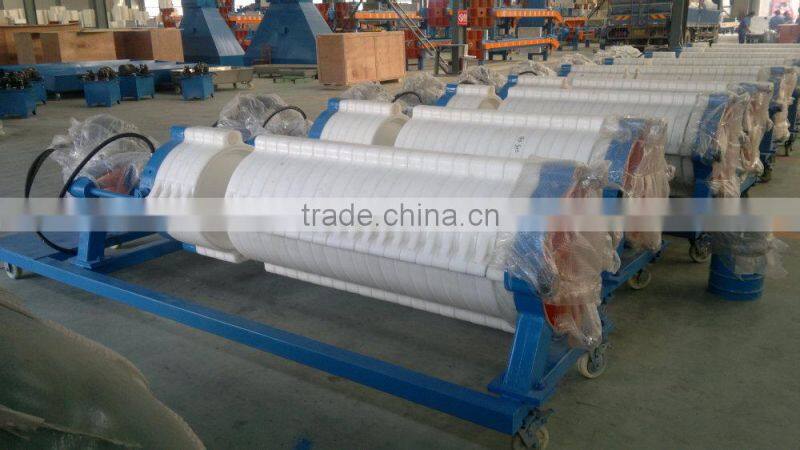

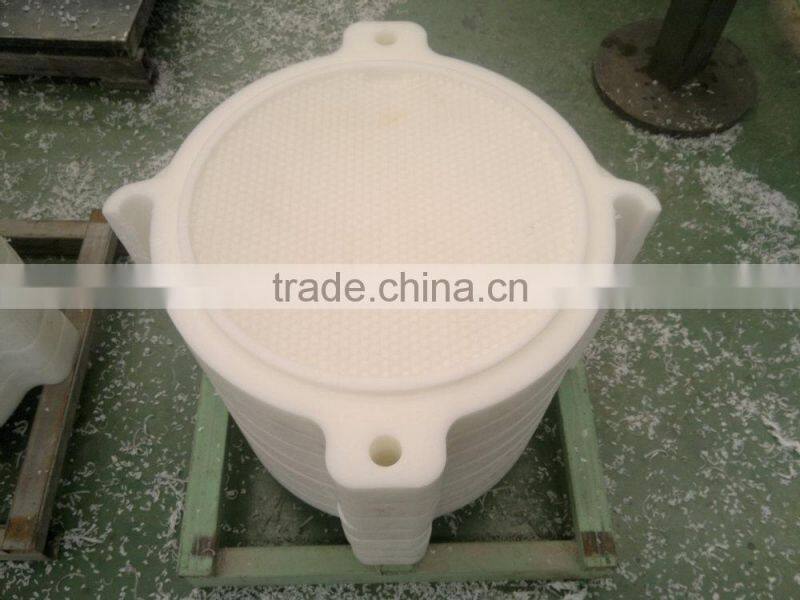

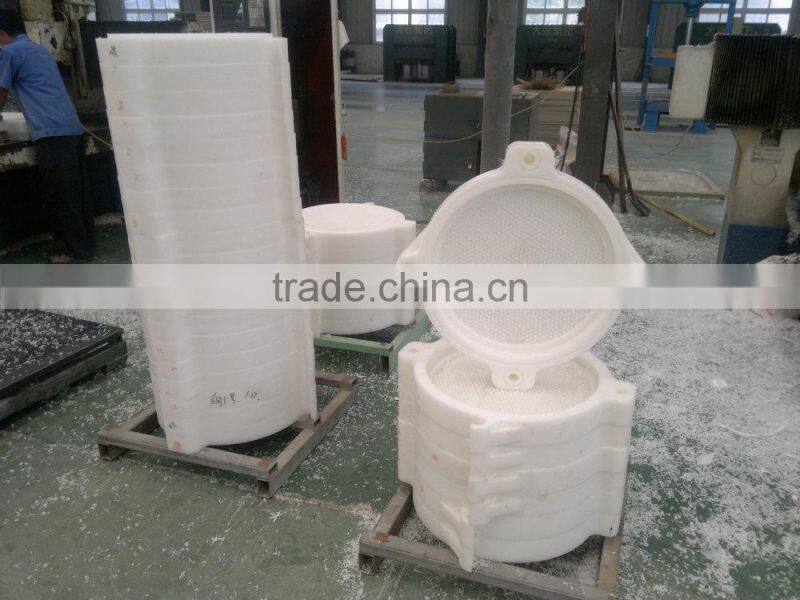

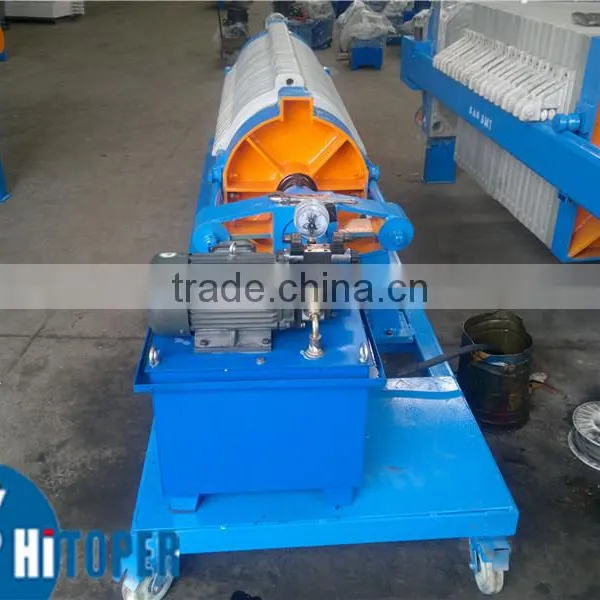

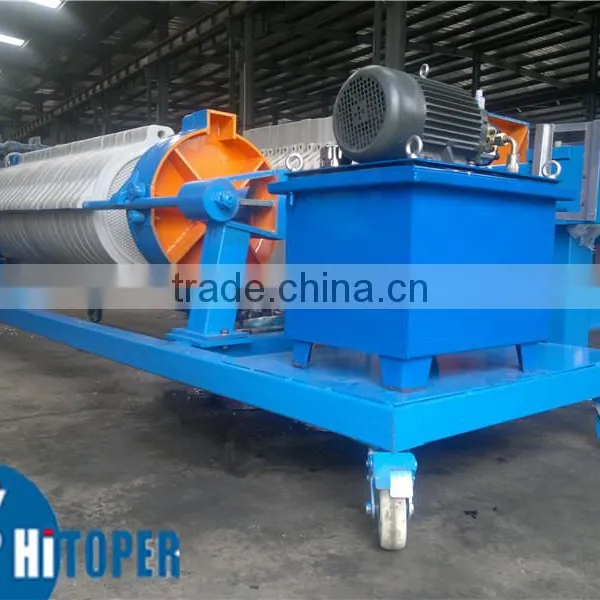

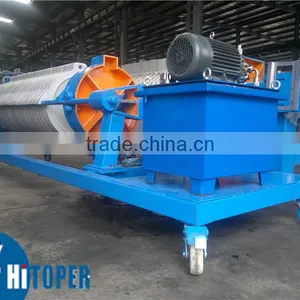

Some more pictures of the mobile filter press manufacturer
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guid for installation, debugging and trainding the workers if required
