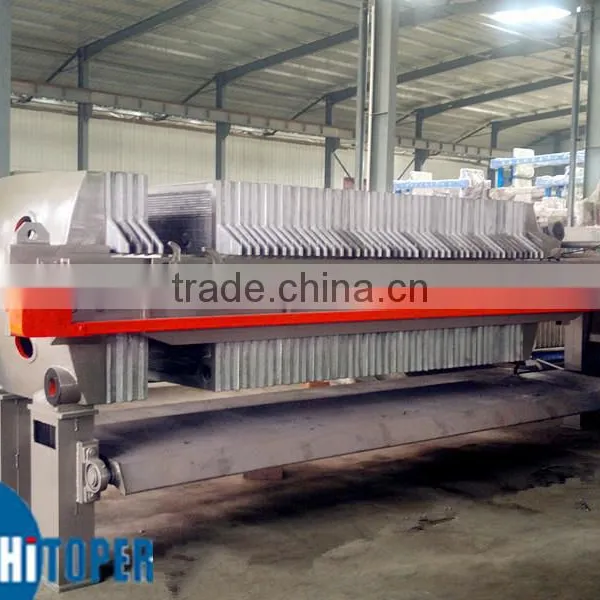

High quality cast iron chamber type automatic filter press
Operating principle
In transporting pump pressure, will need to filter the material liquid into the filter chamber, through the filter medium, separate the solid and liquid.On the filter cloth filter cake formation, until full of filter chamber to form a filter cake.Filtrate through filter cloth and filter plate groove along flow into the pore channels of produced liquid, concentration of discharge.After filtering, can pass into the washing water washing filter residue.After washing, and sometimes into the compressed air, remove the rest of the washing liquid.Filter after the open pressure filter removable filter cake (filter cake store is between adjacent two filter plate), cleaning cloth, keep plate filter to the next work cycle.
The surface of the filter plate is pitting and convex platform, to support the filter cloth.The center of the filter plate holes and corners, form a complete channel after assembly, can enter the suspending liquid, washing water and lead to filtrate.Filter plate with a handle on both sides of the bracket on the beam, pressure filter plate by compaction.Filter plate filter cloth between the sealing effect.
characteristic
The main advantages of this filter press is less wear when feeding, filtering speed, high temperature and high pressure resistance, good seal performance, uniform filter cake washing, moisture content is low, and the filter chamber pressure evenly not easy bad board, basic applies to all the solid-liquid separation industry.
Main technical parameters

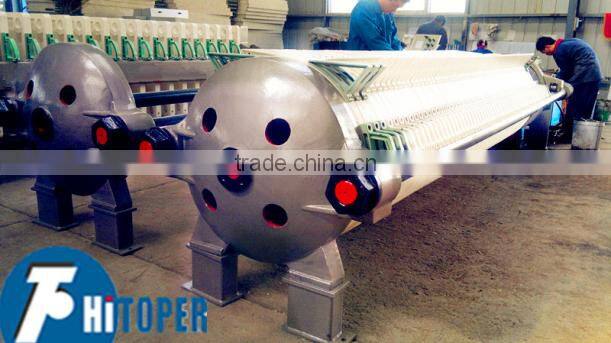

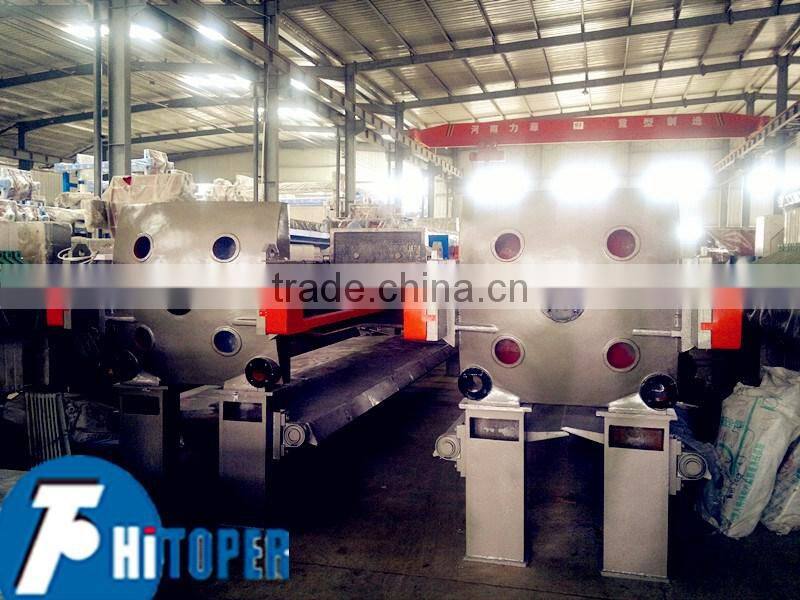

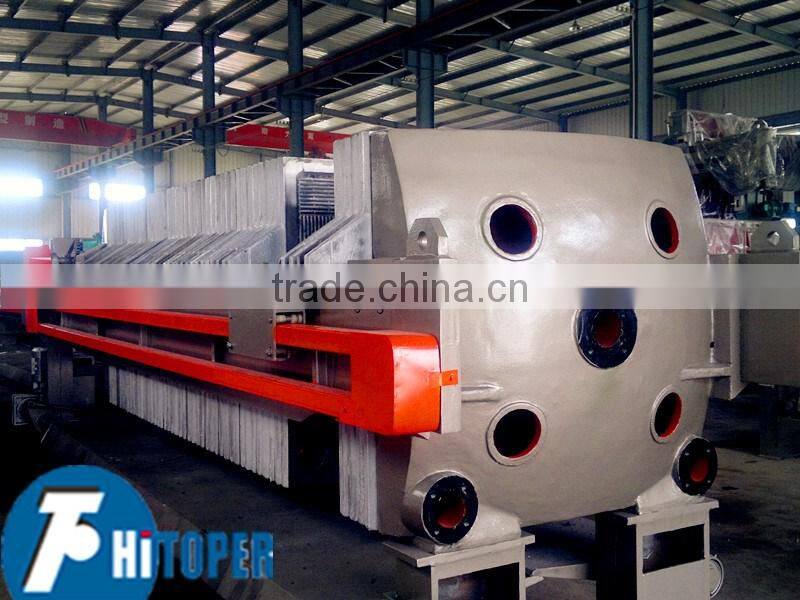

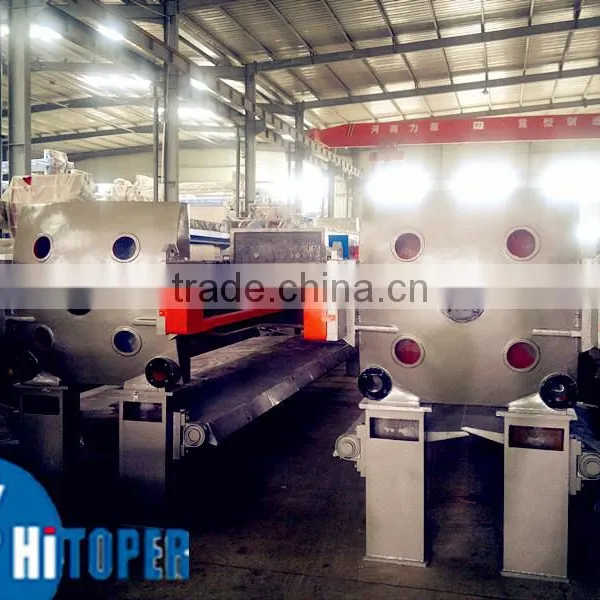

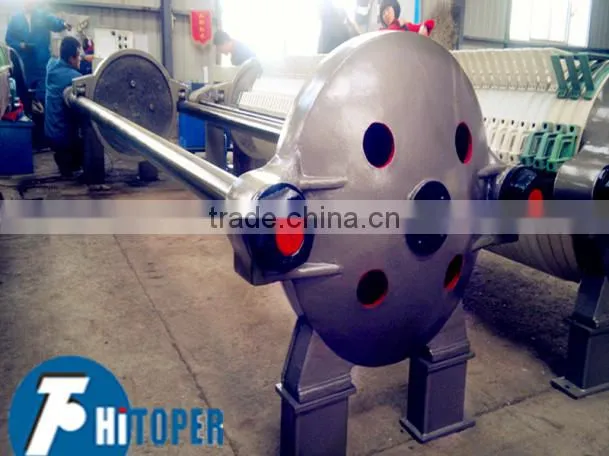

Other forme Photos

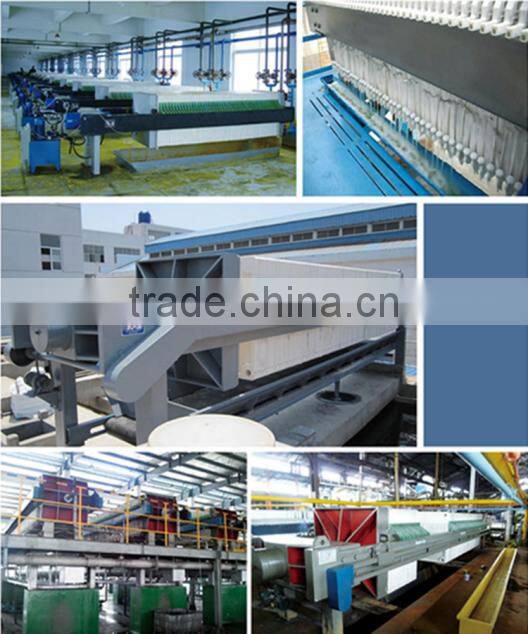

Automatic discharge filter press is widely used in coal washing, inorganic, mining, alcohol, petroleum, metallurgy, chemicals, fuel, medicine, food, textile, printing, dyeing, paper making, sewage treatment and other fields.

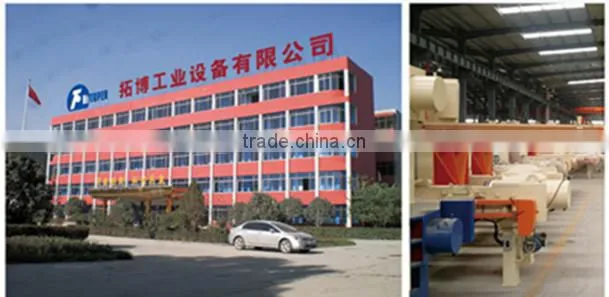

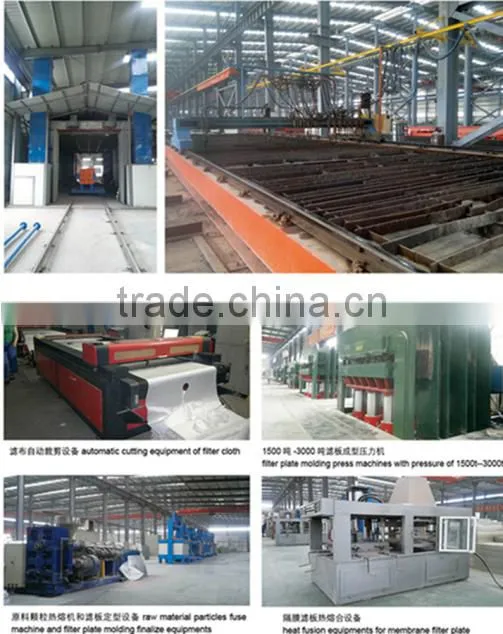

Our factory ability
1.Manufacture experience
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment.
2.Technology capacity,
We join and make the standard of filter press industry in China
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
Our Services:
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Suriname, Australia, Russia etc.
Products
Full automatic filter press,membrane filter press,mechanical compress filter press, jack compress filter press,cast iron plate and frame filter press,stainless steel filter press, round plate filter press,belt filter press,thickness and dewatering belt filter press,three-foot centrifuge,flat panel centrifuge,decanter centrifuge,tubular centrifuge,vacuum disc filter,various filter equipment,filter plate and filter cloth and so on.
Packaging and shipping
High quality cast iron chamber type automatic filter press
High quality cast iron chamber type automatic filter press
High quality cast iron chamber type automatic filter press
