1.Working principle of vacuum disc filter:

Vacuum disc filter is solid-liquid separation equipment. Filter Disk is driven by motor through reducer and open gear

transmission, and it can rotate with certain speed in the tank filled with pulp. In the adsorption area,pressure difference is formed at two sides of filter medium by vacuum pump, so solid material can be adsorbed on the filter media (filter cloth) and filter cake is then formed.

When this part of filter disk is separated from pulp and enters into dehydration area, the water is

continuously separated from the filter cake under the suction force of vacuum and is discharged from filtrate pipe and distributing head.

Filtercake is dried in this way. After entering into the unloading area, filter cake is unloaded fromfilter disk by scraper (or antiblow), falls into the material discharging channel and is taken away by gathering and belt conveyor.

The whole operation process is carried out continuously.

2.Vacuum disc filter parameters:

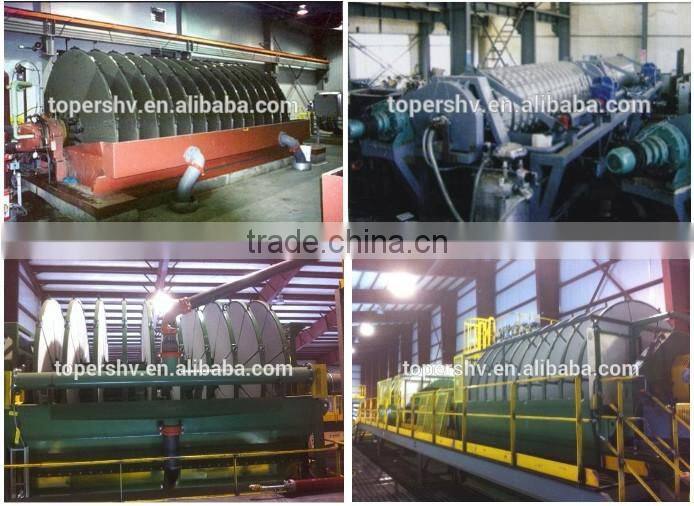

3.Pictures Show:

Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other.

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter

1.We have professional person on line to advise you the most suitable type of machie  according to your requirement.

2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3.Arrange the schedule if you pay a visit to our factory

4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

How to order filter press:

1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.

2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.

3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.

4.Our company can supply non-standard model to meet your special demands.
