High Quality filter press hydraulic manufacturers and suppier which is 2017 new type.
Zhengzhou Toper is one of the best filter press manufacturer in china mainland.It is the leading supplier of
industrial equipment in China, and also the professional exporter and service provider of filter and separation
equipment in the many filter press manufacturer. Our products are well-known at home and abroad.We have
thousands of users throughout China and clients in the world markets."Establish TOPER brand filter press
manufacturer for the satisfaction of users" is our persistent pursuit.
As a profession filter press manufacturer, Toper is famous for its professional technology and good service.
2013 hot selling automatic hydraulic filter press is one of the representative products.
Following is the introduction in detail of hydraulic filter press.
hydraulic filter presss
Advantages of hydraulic filter press:
1,Automatic pressure maintaining,
2,Filtration precision is high
3,Can normal working under low temperature environment,
4,Energy saving, low cost
Automatic hydraulic filter press adopts electro connecting pressure gauge to realize auto-maintaining
pressure with advantages of convenient operation, steady run and reliable structure. It is suitable for
filtrating huge area.
Specifications and technical parameters of automatic hydraulic filter press:
Specification | Filter area (m2) | Filter plate size (mm) | Filter cake thickness (mm) | Filter chamber volume (L) | Filter plate number (pcs) | Filter plate number (pcs) | Filtrating pressure (MPa) | Motor power (kw) | Weight (kg) |
BY4/450-30U | 4 | 450*450 | 30 | 60 | 9 | 10 | 0.6 | 2.2 | 860 |
BY6/450-30U | 6 | 91 | 14 | 15 | 910 | ||||
BY8/450-30U | 8 | 121 | 19 | 20 | 960 | ||||
BY10/450-30U | 10 | 151 | 24 | 25 | 1010 | ||||
BY12/450-30U | 12 | 182 | 29 | 30 | 1060 | ||||
BY15/450-30U | 15 | 225 | 36 | 37 | 1130 | ||||
BY16/450-30U | 16 | 243 | 39 | 40 | 1160 | ||||
BY15/630-30U | 15 | 630*630 | 226 | 18 | 19 | 0.6 | 2.2 | 1725 | |
BY20/630-30U | 20 | 297 | 24 | 25 | 1993 | ||||
BY30/630-30U | 30 | 452 | 37 | 38 | 2360 | ||||
BY40/630-30U | 40 | 595 | 49 | 50 | 2788 | ||||
BY30/800-30U | 30 | 800*800 | 460 | 23 | 24 | 0.6 | 1.5 | 2580 | |
BY40/800-30U | 40 | 595 | 30 | 31 | 2925 | ||||
BY50/800-30U | 50 | 748 | 38 | 39 | 3318 | ||||
BY60/800-30U | 60 | 902 | 46 | 47 | 3712 | ||||
BY70/800-30U | 70 | 1056 | 54 | 55 | 4106 | ||||
BY80/800-30U | 80 | 1210 | 62 | 63 | 4561 |

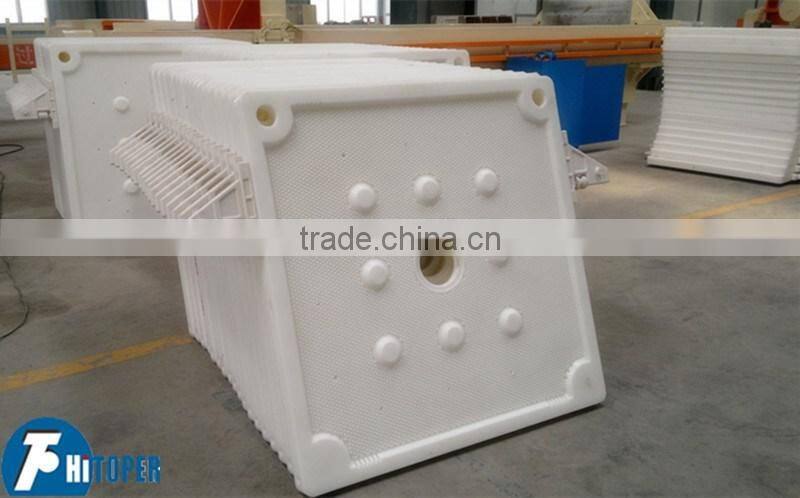

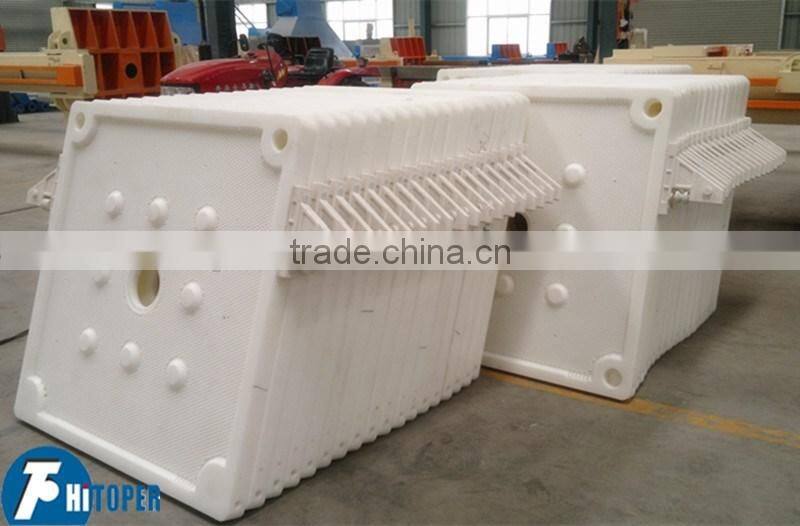

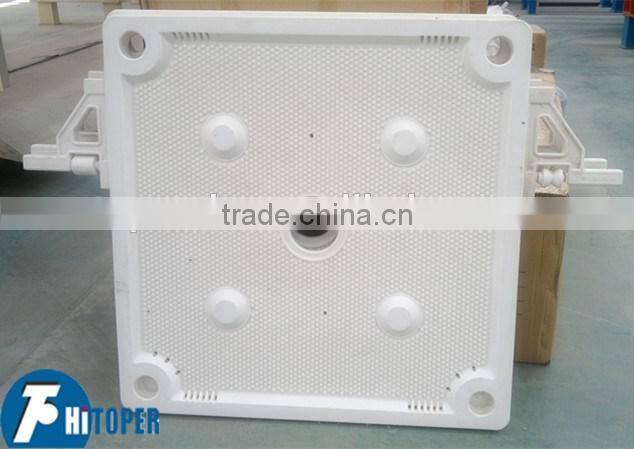

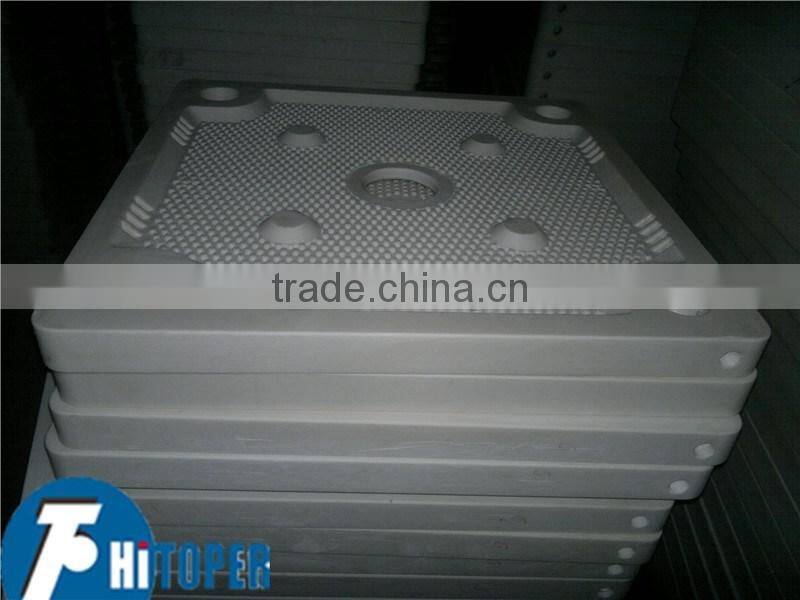

The plates of hydraulic filter press are made from PP

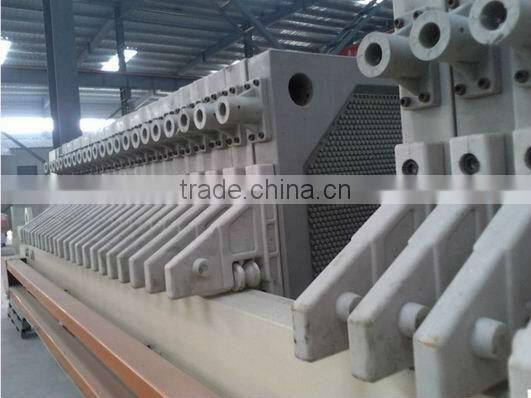

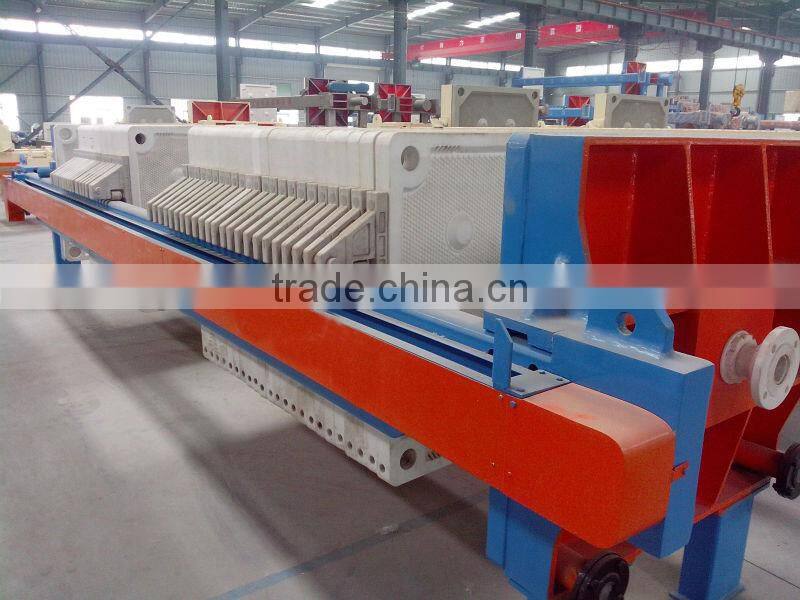

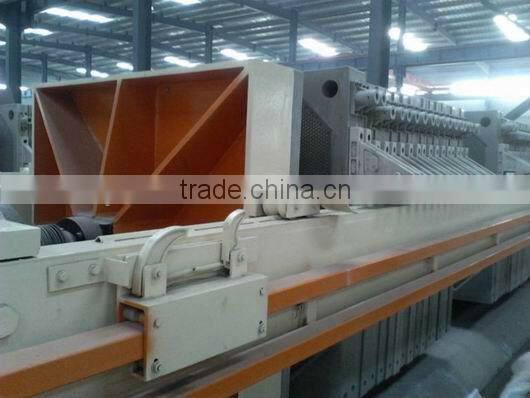

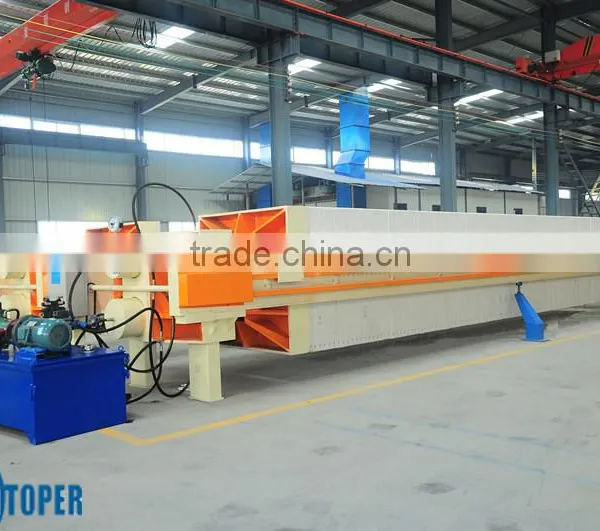

The picture details of automatic hydraulic filter press with membrane plates
♥ How to order filter press:
1, Select the model, plate and frame materials, pressing mode and filtering form by considering the filter
press introduction and parameters.
2, According to your products, select open flow or close flow, washable or non-washable, and specify the
conditions in the contract.
3, The unit is provided without pump. To order the unit complete pumps, state it in the contract.
4, Our company can make non-standard model to meet your special demands.
5, The actual parameters at the time of order shall prevail to model improvements.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of
various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing
devices and suspending liquid is pumped into the filter chamber. Solid particles and separated
through filter cloth.
The products are simple in structure but good in separating effects, convenient in use, and widely
applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing,
paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment
industries.
All of Toper's products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
