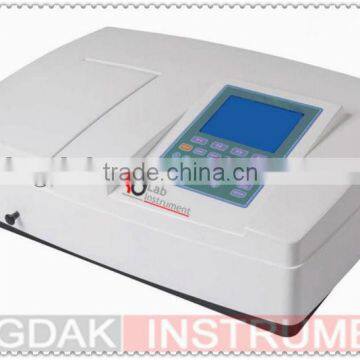

UV-K761A Lagre LCD UV VIS Spectrophotometer

Specifications

* Large LCD display
* Precisely aligned detector
* Online software upgrade

UV-K761A Lagre LCD UV VIS Spectrophotometer



Features
The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.
Online software upgrade capability via Internet(for stand-alone models)
Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
Real-time clock for date and time stamping of results
Large LCD display (320*240 Dots Matrix)



Specifications



Model	UV-K761A
Wavelength Range	190-1100nm
Bandwidth	1nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.2nm
Photometric Accuracy	±0.3%T
Photometric Repeatability	0.2%T
Photometric Range	-0.3-3A,0-200%T,0-9999C
Stability	± 0.002A/h @ 500nm
Baseline Flatness	± 0.001A/h
Noise	± 0.001A/h
Stray Light	≤0.05%T @ 220nm,360nm
Data Output Port	USB
Printer Port	Parallel Port
Display	320*240 Dots LCD
Lamps	D2 Lamp & W Lamp
Detector	Silicon Photodiode
Power Requirements	AC 220V/50Hz or 110V/60Hz
Dimension	625*430*206mm
Weight	28kg
