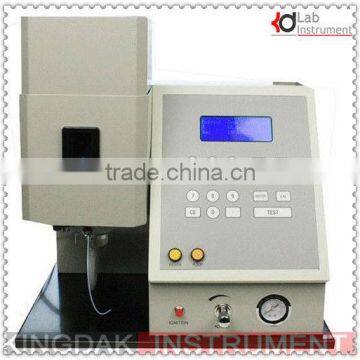

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-1
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-2
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-3
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-4
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-5
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector thumbnail-6
KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-1

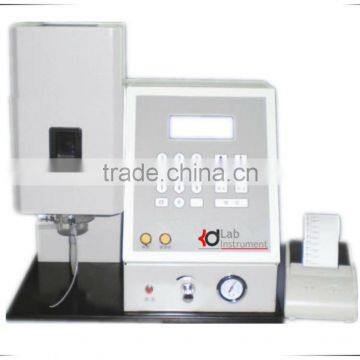

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-2

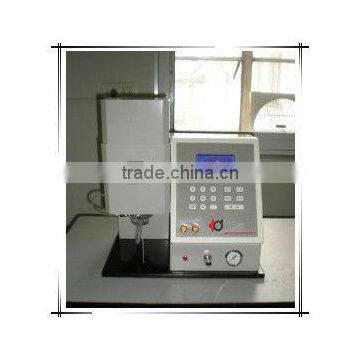

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-3

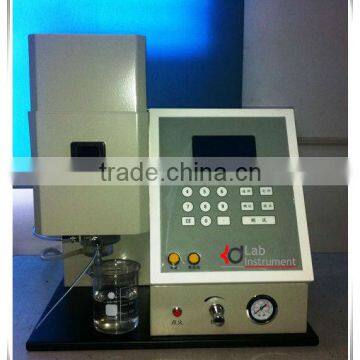

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-4

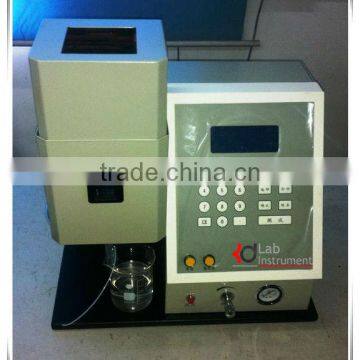

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-5

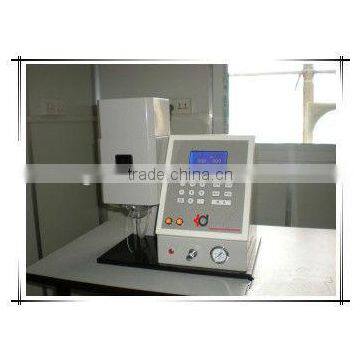

KD-AP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer/detector photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KINGDAK, KINGDAK
Model Number:
KD-AP1500, KD-FP1500
Contact Supplier Request Quote Chat Now
Shanghai Kingdak Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name KINGDAK, KINGDAK
Model Number KD-AP1500, KD-FP1500

KD-FP1500(Measure K,Na,Li,Ca,Ba) Flame Photometer

APPLICATION:
This instrument is used for analyzing & measuring the content & concentration of elements (K, Na, Li, Ca, Ba). It can be widely applied to agriculture (soil, fertilizer, tobacoo), industry (cement, glass, ceramics, mineral orore powder, fireproof material), food (wine, water), laboratory, clinical experiments and pathology research(serum, urine, plasma), etc.
CHARACTERISTICS:
With 5 channels and be able to detect K, Na, Li, Ca, Ba elements.
With K, Na, Li, Ca, Ba five filters, which can detect three kinds of elements, show three kinds of element content simultaneously.
1. Operates on propane, butane or liquefied petroleum gas.
2. Standard accessories: Air-compressor, PC software or micro-printer.
3. LCD Display, touch panel with numeric keypad.
4. Single point calibration & calibration curve can be saved.
5. RS232 interface, external computer or printer. With a mist separator.
Model: FP1200
1. Measurement range: K: 0-100ppm; Na: 0-100ppm; 2. Measurement Limit: K: 0.01ppm; Na: 0.01ppm;
3. Drift: Drift &le: 3% (after 30 minutes when the instrument stability)
4. Sample Rate: 4 ~ 6ml/min
5. Linearity: Better than the best results of the intermediate value of 2% (single-point CAL)
6. Response Time: Less than 8s
7. Time Stability: Less than 15 seconds (when the sample was taken after the flame)
8. Calibration Methods: Straight line, broken line, secondary fitting
9. Size & Weight: 530X510X580mm & 27kg
Model: FP1301
1. Measurement range: K: 0-100ppm; Na: 0-100ppm; Li: 0-100ppm;
2. Measurement Limit: K: 0.01ppm; Na: 0.01ppm; Li: 0.025ppm;
3. Drift: Drift &le: 3% (after 30 minutes when the instrument stability)
4. Sample Rate: 4 ~ 6ml/min
5. Linearity: Better than the best results of the intermediate value of 2% (single-point CAL)
6. Response Time less than 8s
7. Time Stability: Less than 15 seconds (when the sample was taken after the flame)
8. Calibration Methods: Straight line, broken line, secondary fitting
9. Size & Weight: 530X510X580mm & 27kg
Model: FP1401
1. Measurement range: K: 0-100ppm; Na: 0-100ppm; Li: 0-100ppm; Ca: 0-1000ppm;
2. Measurement Limit: K: 0.01ppm; Na: 0.01ppm; Li: 0.025ppm; Ca: 0.1ppm;
3. Drift: Drift &le: 3% (after 30 minutes when the instrument stability)
4. Sample Rate: 4 ~ 6ml/min
5. Linearity: Better than the best results of the intermediate value of 2% (single-point CAL)
6. Response Time: Less than 8s
7. Time Stability: Less than 15 seconds (when the sample was taken after the flame)
8. Calibration Methods: Straight line, broken line, secondary fitting
9. Size & Weight: 530X510X580mm & 27kg
Model: FP1500
1. Measurement range: K: 0-100ppm; Na: 0-100ppm; Li: 0-100ppm; Ca: 0-1000ppm; Ba: 0 3000ppm
2. Measurement Limit: K: 0.01ppm; Na: 0.01ppm; Li: 0.025ppm; Ca: 0.1ppm; Ba: 10ppm;
3. Drift: Drift &le: 3% (after 30 minutes when the instrument stability)
4. Sample Rate: 4 ~ 6ml/min
5. Linearity: Better than the best results of the intermediate value of 2% (single-point CAL)
6. Response Time: Less than 8s
7. Time Stability: Less than 15 seconds (when the sample was taken after the flame)
8. Calibration Methods: Straight line, broken line, secondary fitting
