Specifications
* Large LCD display* Precisely aligned detector
* Online software upgrade

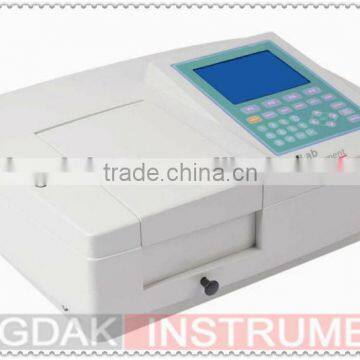

UV-K760 UV/Vis Spectrophotometer
Features
The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.
Online software upgrade capability via Internet(for stand-alone models)
Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
Real-time clock for date and time stamping of results
Large LCD display (320*240 Dots Matrix)
Specifications
Model | UV-K760 |
Wavelength Range | 190-1100nm |
Bandwidth | 1.8nm |
Wavelength Accuracy | ±0.5nm |
Wavelength Repeatability | 0.3nm |
Photometric Accuracy | ±0.3%T |
Photometric Repeatability | 0.2%T |
Photometric Range | -0.3-3A,0-200%T,0-9999C |
Stability | ± 0.002A/h @ 500nm |
Baseline Flatness | ± 0.002A/h |
Noise | ± 0.001A/h |
Stray Light | ≤0.05%T @ 220nm,360nm |
Data Output Port | USB |
Printer Port | Parallel Port |
Display | 320*240 Dots LCD |
Lamps | D2 Lamp & W Lamp |
Detector | Silicon Photodiode |
Power Requirements | AC 220V/50Hz or 110V/60Hz |
Dimension | 460*380*180mm |
Weight | 20kg |
