Specifications
1. touch screen operate2. scanning,photometric,kinetics, quantitative functions on host
3. printout by HP printer on host

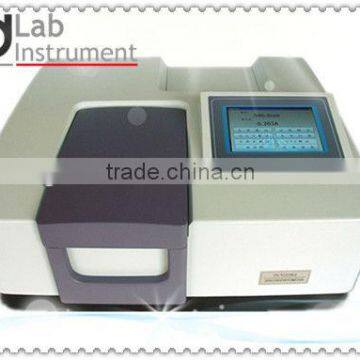

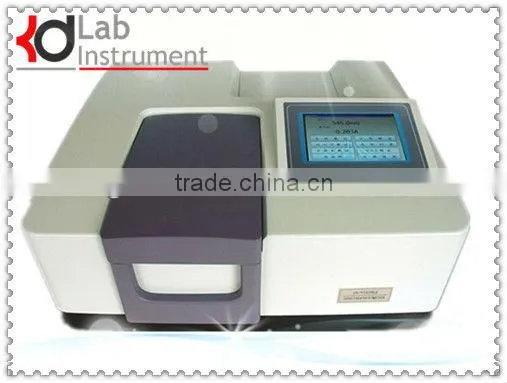

J7600/7601 TOUCH SCREEN OPERATE UV VISIBLE SPECTROPHOTOMETER
Characteristics and advantages
J7600 seriestouch screen operate double beam UV-VIS spectrophotometer use a patent technology, all of the measuring functions can be operated on the 7 inch color touch screen with Win CE operating system of the host.
Measuring data or curve can be stored in the host memory, host SD card, or through USB interface output.
Measuring data or curve can be printed by HP printer through USB interface.
Wireless transmission technology can also be used in data or curve storage and printing, as convenient as using tablet PC.
Four basic measuring functions (spectral scanning, photometric measuring, kinetics measuring, quantitative measuring) can be run in the host without analysis software and computer, analysis software can be equipped with the host for value-added and function expansion,so the configuration of the instrument is very flexible and rich.
Major specifications and functions
| J7600 | J7601 |
Wavelength run mode | auto | auto |
Wavelength Range | (190-1100)nm | (190-1100)nm |
Wavelength Accuracy | ±0.5 nm | ±0.3 nm |
Wavelength Reproducibility | ≤0.2 nm | ≤0.1 nm |
Spectral Bandwidth | 1.0 nm | 1.0nm |
Photometric Accuracy | ±0.5%(t) | ±0.3%(t) |
Photometric Reproducibility | ≤0.2%(t) | ≤0.1%(t) |
Photometric Range Concentrition Range | -0.301-4.000(A) 0-99999 | -0.301-4.000(A) 0-99999 |
Stray Light | ≤0.1%(t) | ≤0.05%(t) |
Stability | <0.001A/h | <0.0005A/h |
Baseline | <±0.001A | <±0.0008A |
Noise | ≤0.1%(t) | ≤0.1%(t) |
Host Functions | Spectral scanning Photometric Kinetic Quantitative | Spectral scanning Photometric Kinetic Quantitative |
Transmittance Absorbance Concentration Energy | Transmittance Absorbance Concentration Energy | |
1-10cm cuvette | 1-10cm cuvette | |
HP Ink-jet printer, Laser printer | HP Ink-jet printer, Laser printer | |
Auto 8-allied cuvette rack | Auto 8-allied cuvette rack | |
Quantitative-qualitative analysis software | Quantitative-qualitative analysis software | |
Data storgage-output | Data storgage-output |
