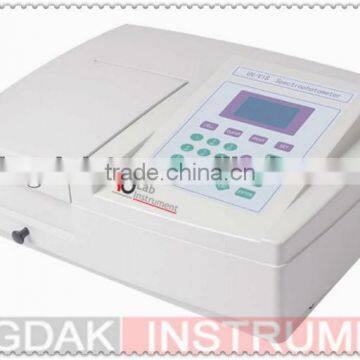

V-K756/V-K756PC Visible Spectrophotometer

Specifications

Optional software UV-Professional can expand the applications to Kinetics and Quantitatives.

V-K756/V-K756PC  Visible Spectrophotometer





Low Stray Light
      The stray light of V-K756/V-K756PC is below 0.05%T.The monochomator is totally sealed and the optical surfaces are protected with a silicon dioxide membrane.The excellent optical system and electric circuit design ensures the very low stray light.
 Large LCD display
      Models V-K756(PC) adopt 128*64 Dots LCD as its display system. Thus makes the results easy to read. And the Standard Curve can be displayed on it clearly,Also,it can display 5 groups of data per screen.
 Large Data memory space
      It can store 200 groups of data and 200 standard curves at the same time.Press arrow key to scroll,easy to reload.
 Can upgrade to scanning modle
     The instrument can be controlled by Metash’s scanning software UV-Professional developed  based on Windows® through the USB port.The software expands the function to Quantitative,Kinetics,Multiwavelength and Wavelength Scanning.



Specifications

Model	V-K756/V-K756(PC)
Wavelength Range	320-1100nm
Bandwidth	2nm
Wavelength Accuracy	±0.8nm
Wavelength Repeatability	0.3nm
Wavelength Setting	Auto
Photometric Accuracy	±0.3%T
Photometric Repeatability	0.2%T
Photometric Range	-0.3-3A,0-200%T,0-9999C
Stability	± 0.002A/h @ 500nm
Baseline Flatness	± 0.002A/h
Stray Light	≤0.05%T
Data Output Port	USB
Printer Port	Parallel Port
Display	128*64 Dots LCD
Lamps	W  Lamp
Detector	Silicon Photodiode
Power Requirements	AC   220V/50Hz or  110V/60Hz
Dimension	460*360*225mm
Weight	18kg
