Specifications
1. T/A/C functions2. with software for photometric, quantitative and print functions
3. 190-1100nm
4. 3.8nm bandwidth

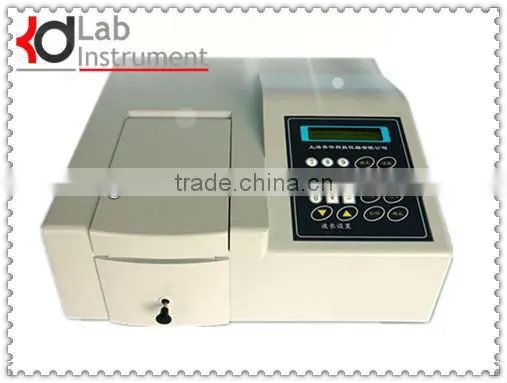

JUV1600 SINGLE BEAM UV VISIBLE SPECTROPHOTOMETER
Features
Advanced optical system, C-T configuration diffraction grating monochromator, precise 1200 lines/mm grating, high resolution, high photometric accuracy and low straylight.
Built in SCM technology,auto wavelength running and correct, auto 0%,auto 100% and error-free T/A transformation.
With transmittance, absorbance, concentration factor setting or concentration direct readout functions.
Spacious sample compartment, 4 position cuvette rack, adaptable for 1-10cm optical path rectangular cells.
Withphotomerric, quantitative measurement(standard sample comparison, standard coefficient and linear regression) functions by using host.
Data printout by mini printer through the serial interface independently.
Optional software with photometric, quantitative measurement and print functions.
Major specifications and functions
| JUV1600 |
Wavelength run modes | auto |
Wavelength Range | (190-1100)nm |
Wavelength Accuracy | ±0.8 nm |
Wavelength Reproducibility | ≤0.3 nm |
Spectral Bandwidth | 3.8nm |
Photometric Accuracy | ±0.3%(t) |
Photometric Reproducibility | ≤0.1%(t) |
Photometric Range Concentrition Range | -0.301-4.000(A) 0-99999 |
Stray Light | ≤0.05%(t) |
Stability | <0.002A/h |
functions | photometric measuring quantitative measuring |
Transmittance Absorbance concentration | |
quantitative and data processing software | |
1-10cm cuvette | |
miniprinter (for host) or Ink-jet printer, Laser printer | |
RS232C interface |
Optional Accessories
1) Halogen-Tungsten lamp
2) Deuterium Lamp
3) Glass cuvette 0.5cm,1 cm, 2 cm, 3 cm,5cm,10cm
4) 4-allied 5 cm and 10cm cuvette rack
(5cm rack adaptable for 1-5cm cuvette)
( 10cm rack adaptable for 1-10cm cuvette)
5) Quartz cuvette 1cm,2cm,3cm,5cm
6) Praseodymium-Neodymium optical filter
7) Holmium oxide optical filter
8) Specialized mini printer and cable
Quantitative and data processing software package
