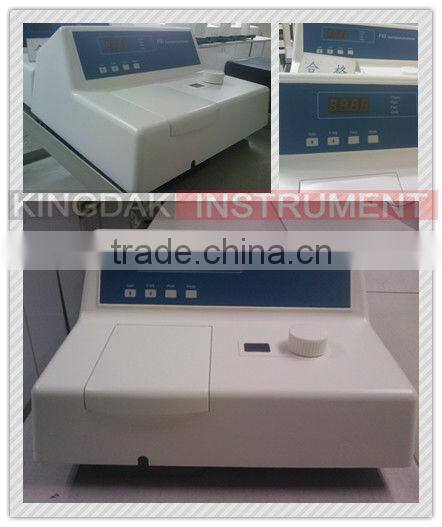

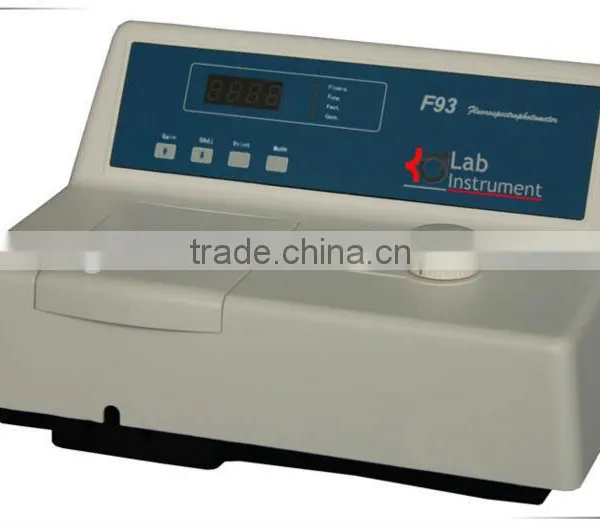

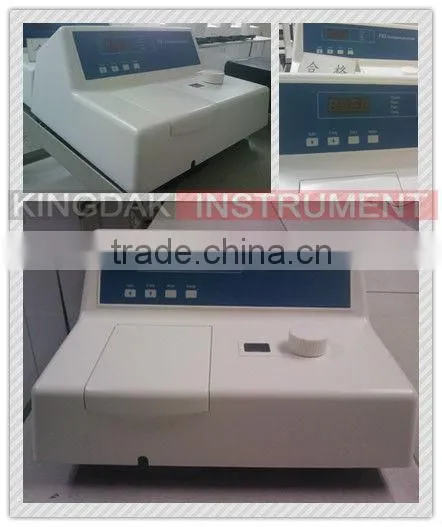

F93 Fluorescence Spectrophotometer

F93 Fluorescence spectrophotometer

Fluorescence spectrophotometer

Features

The emission monochromator adopts 1200 line      diffraction grating. Its large aperture and non-spherical reflecting mirrors produces extra high sensitivity.
High stable and long life xenon lamp and power source ensure high stable testing and wide range of spectrum.

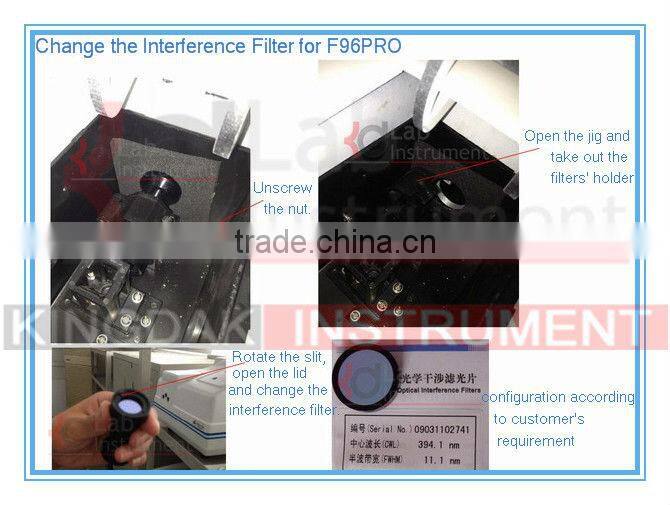

EX light use LED,match with the central wavelength of 365nm,420nm,475nm,525nm narrow banding-ultra low back grounding precision filters to consist 4 set of EX  wavelength replacing system. The system can be replaced by customer,Carry on the maintenance expediently & can satisfy more choices and demand;
The central wavelength of 365nm,420nm,475nm,525nm narrow banding-ultra low back grounding  precision filters with low fluorescence background,it’s performance is better than glass filter;
LED is a cold-light source with longevity,lower background & reliability,prevent from thermo-pollution;
Automatic zero adjustment and automatic background subtraction;Eight stage sensitivity adjustment;Real time fluorescence reading display and concentration print out,Extra wide dynamic range of fluorescence reading,accurate measurement of minute changes in samples;
RS-232C serial port interface attached,after option Data Processing Software Package it is convenient to store record & transmit data & draw up a standard operating curve;
Quality fine,less weight & measure,test simply,particularly suitable for Edu. & Lab..

Applications and Features

Fluorescence analysis is a high sensitive and high selective sophisticated analytical method. This method can provide information including excitation and emission spectrum, emission light intensity and measurement of life of emission light and polarization fluorescence etc. This method can provide a wide lineal range of working curve. It has becoming an important analytical method in the region of trace analysis. This method has been used in:
Medical science and clinical analysis:Clinical analysis of biological specimen.
Pharmaceutical science and pharmacology:Analysis of natural pharmaceutical products; Quality control of pharmaceuticals and research of pharmaceutical metabolites.
Biochemistry:Analysis of minute quantity of substances in biological body.
Food industry:Analysis of minute quantity of constituents in food.
Pollution analysis:Atmospheric pollution, environmental testing and food contamination analysis.
Organic and inorganic chemistry: Used in the trace analysis in case of  those substances cannot be determined by absorption spectrophotometry.

Specificatios

Light source:LED
Exciting optical filters:Interference optical filter (10nm bandwidth)
central wavelength 365nm(F93)
optional central wavelength: 365nm,405nm,470nm,515nm (F93A)
*The wavelength of Exciting optical filter can be selected within 360-600nm
Emission monochromator:360~650nm  (C-T diffraction grating)
 Wavelength accuracy:±2nm
 Wavelength repeatability :≤1nm
Sensitivity:1×10-9  g/ml
(Standard aqua of the sulfuric acid Quinine, 12nm bandwidth)
Linearity deviation: ≤±3.0%
Variation of power source: 220V±22V  50Hz±1Hz
Interface:    RS232 serial port
printer:serial printer/Jet printer(for PC)
Selectable Data Processing Software Package

Standard Package

 Main instrument  1 set
 Power cord  1 pc
  Instruction manual  1 copy
  Product quality certificate  1 copy
 Fuse(1A)2 pcs
  Fuse(5A)2 pcs
  Quartz fluorescence cuvette 10mm  1 pair
  Packing list  1 copy

Optional accessories and spare parts:

1. Fuses(1A/5A)
2. Cuvette, special for high concentration samples
3. 360~650nm interference optical filter(φ25mm)

    e.g.: F93A: 365nm,405nm,470nm,515nm

1. Quartz fluorescence cuvette10mm
2. Data processing software package (pack, for PC)
3. Printer cable
4. RS-232C serial port cable
